Gas Laws

Kinetic Particle Theory

  • Matter is made up of particles that are in constant motion
  • The higher the temperature, the faster the particles move (more energy)
  • Increase in temperature increase weakens interparticle forces, causing particles to spread apart and increase in volume/size (i.e. Expansion)

  • Gases have greatest average energy while solids have smallest average energy

    According to the kinetic theory, matter is made up of particles (atoms, molecules or ions) which are in constant motion because they have energy at all temperatures above zero Kelvin (absolute zero, 0K) or -2730C.

    This energy is in the form of kinetic energy.

    Consider heating a solid;

    When a solid is heated, the particles vibrate more strongly as they gain kinetic energy and the particle attractive forces are weakened.

    Eventually, at the melting point, the attractive forces are too weak to hold the particles in the structure together in an ordered way and so the solid melts.

    The particles become free to move around and lose their ordered arrangement.

    Energy is needed to overcome the attractive forces and give the particles increased kinetic energy of vibration.

    On heating further, the particles gain more kinetic energy and move faster.

    In evaporation and boiling the particles with the highest kinetic energy can ‘escape’ from the attractive forces of the other liquid particles.

    The particles lose any order and become completely free to form a gas or vapour.

    Boiling is rapid evaporation anywhere in the bulk liquid and at a fixed temperature called the boiling point and requires continuous addition of heat.

    Diffusion and Kinetic Energy

    The natural rapid and random movement of the particles means that gases readily ‘spread’ or diffuse

    Diffusion is the movement of gas or solid particles from a region of high concentration to a region of low concentration

    Diffusion is fastest in gases where there is more space for them to move

    The rate of diffusion increases with increase in temperature as the particles gain kinetic energy and move faster

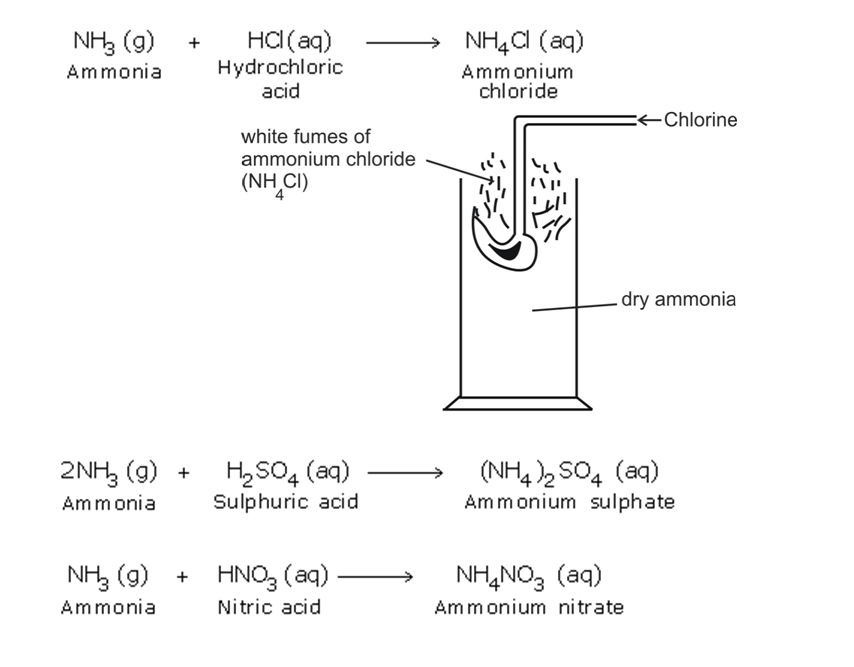

    Diffusion of Ammonia and Hydrogen Chloride

    The following experiment is set up

    One filter soaked in a solution of ammonia solution and the other soaked in a solution of concentrated hydrochloric acid are placed on the end of along glass tubing as shown

    When colourless NH3 and HCl fumes meet, dense white smoke (fumes) of ammonium chloride are observed

    NH3 (ag) + HCl (ag) -> NH4 Cl(s)

    Ammonia is diffused more rapidly than the hydrogen chloride because the gas traveled a longer distance in the same amount of time

    Gases with greater R.M.M have higher densities than gases which have small molecules eg. hydrogen chloride are heavier than ammonia molecules

    If the concentration of hydrochloric acid and that of ammonia were increased in a separate experiment, the rate of diffusion would be faster

    Gas Mr

    NH3 17

    HCl 35

    5 Large heavy molecules move more slowly than small, light molecules

    Therefore, dense gases diffuse more slowly than gases of low density

    The rate of diffusion depends on the molecular mass/density of gas

    Rate of diffusion is inversely proportional to mass of a gas

    Rate of Diffusion;

  • Increases with temperature
  • Decreases with increasing R.M.M or R.A.M
  • Increases with concentration

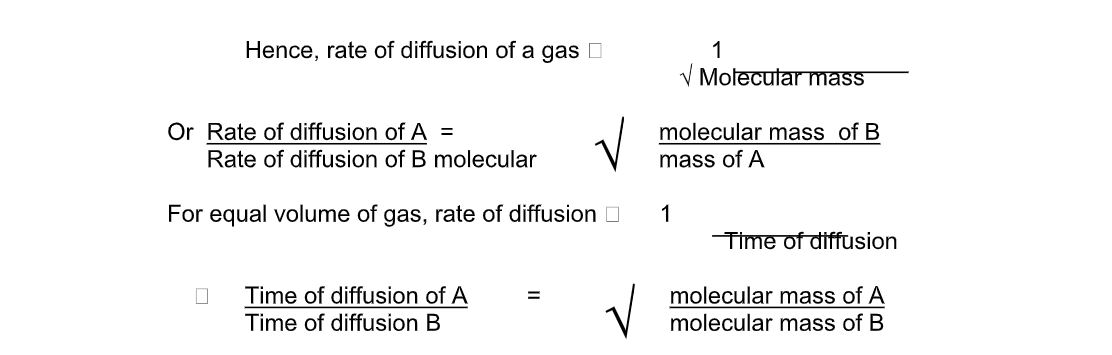

    Graham’s Law of Diffusion

    Graham’s law of diffusion relates the rate of diffusion of a gas to its density

    It states that the rate of diffusion of a gas at constant temperature and pressure is inversely proportional to the square root of its density

    Evaporation, boiling and kinetic theory

    On heating particles gain kinetic energy and move faster

    In evaporation and boiling the highest kinetic energy molecules can ‘escape’ from the attractive forces of the other liquid particles

    The particles lose any order and become completely free to form a gas or vapour

    Energy is needed to overcome the attractive forces in the liquid and is taken in from the surroundings

    This means heat is taken in, so evaporation or boiling are endothermic (require energy input) processes

    If the temperature is high enough boiling takes place

    Boiling is rapid evaporation anywhere in the bulk liquid and at a fixed temperature called the boiling point and requires continuous addition of heat

    The rate of boiling is limited by the rate of heat transfer into the liquid

    Evaporation takes place more slowly at any temperature between the melting point and boiling point, and only from the surface, and results in the liquid becoming cooler due to loss of higher kinetic energy particles

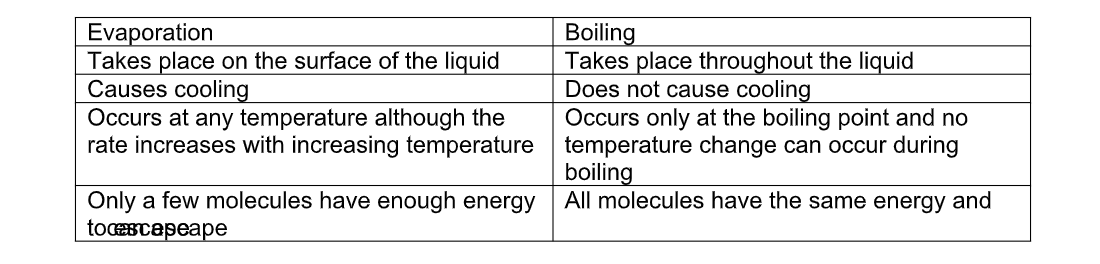

    Differences between evaporation and boiling

    Factors that affect the rate of evaporation

    Evaporation occurs at all temperatures at the surface of the liquid

    It happens more rapidly when:

    i) The temperature is higher, since then more molecules in the liquid are moving fast enough to escape from the surface,

    ii) The surface area of the liquid is large so giving more molecules a changes to escape because more are near the surface, and

    iii) Wind or draught is blowing over the surface carrying vapour molecules away from the surface thus stopping them from returning to the liquid and making it easier for more liquid molecules to break free

    Kinetic Theory and Gas Laws

    Due to the kinetic theory we begin to understand why gases exert pressure

    The molecules of a gas are far apart and in continuous random motion, colliding with each other and with the walls of the vessel in which the gas is held

    The molecules have mass, so they have energy hence they exert force on each collision and hence pressure

    If the temperature of the gas is increased at constant volume, the molecules gain more energy and move faster, hitting the walls with more force and exerting greater pressure

    If the volume of the gas is increased at constant temperature, the molecules have more space in which to move

    The frequency of collisions decreases reducing the pressure

    Boyle’s law

    The pressure of a fixed mass of gas is inversely proportional to its volume if its temperature is kept constant

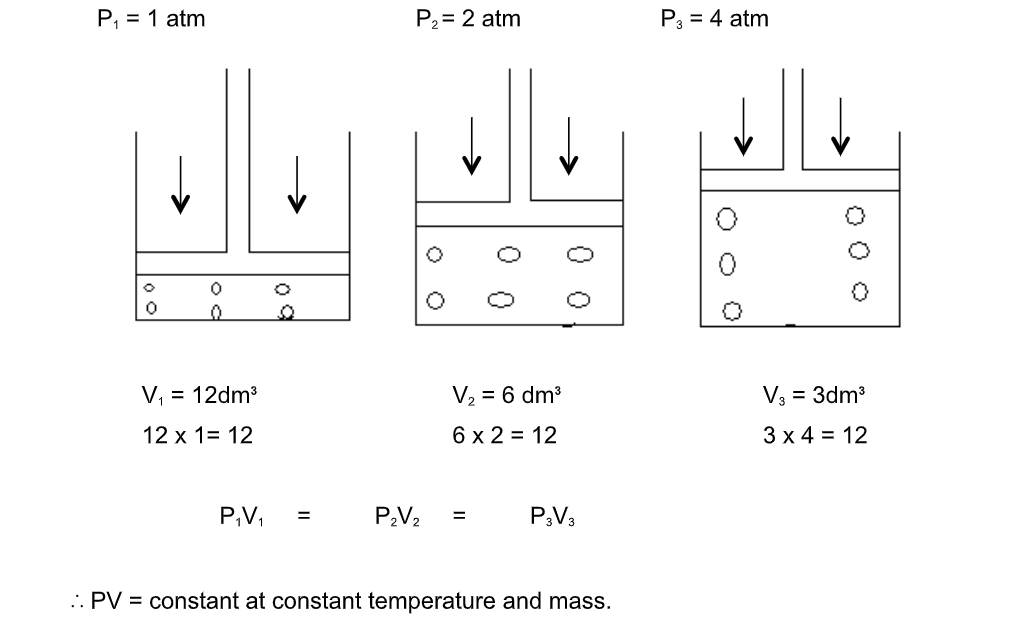

    Consider a gas trapped in a container as shown

    The mass, hence number of moles are constant and do not change during the course of the investigation

    The piston is frictionless and moves smoothly without allowing the gas to escape

    When the pressure changes, the volume of the gas changes as shown

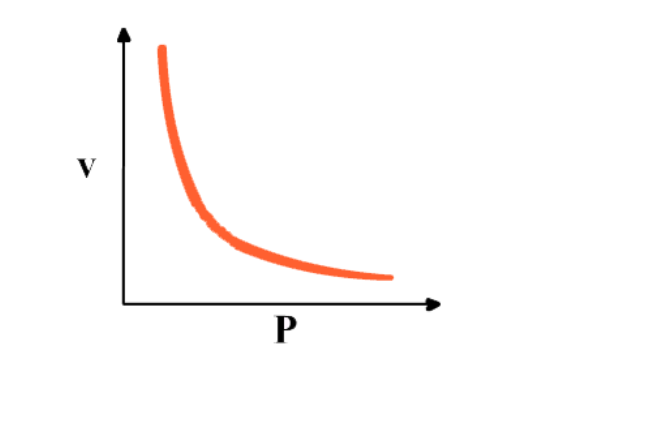

    Graphical representation of Boyle’s law

    Graph between P & V at constant temperature is a smooth curve known as "parabola"

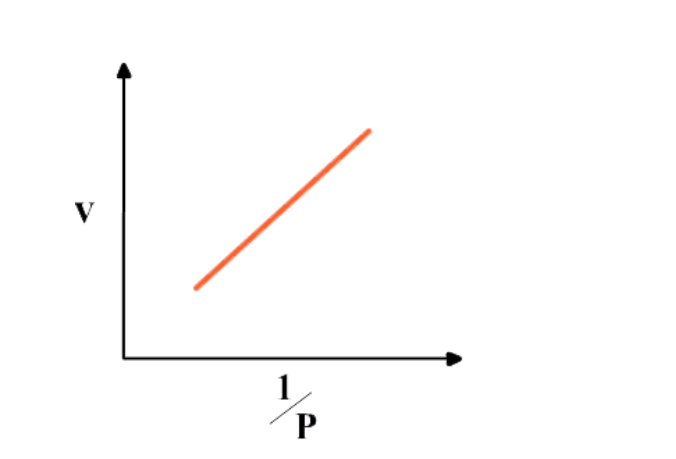

    Graph between 1/P & V at constant temperature is a straight line

    If pressure, p is doubled, the volume is halved

    That is, p is inversely proportional to V

    In symbols

    P ∝ 1/V or p = constant X 1/V

    PV = constant

    p1V1 = p2V2 = constant.This is Boyle’s law

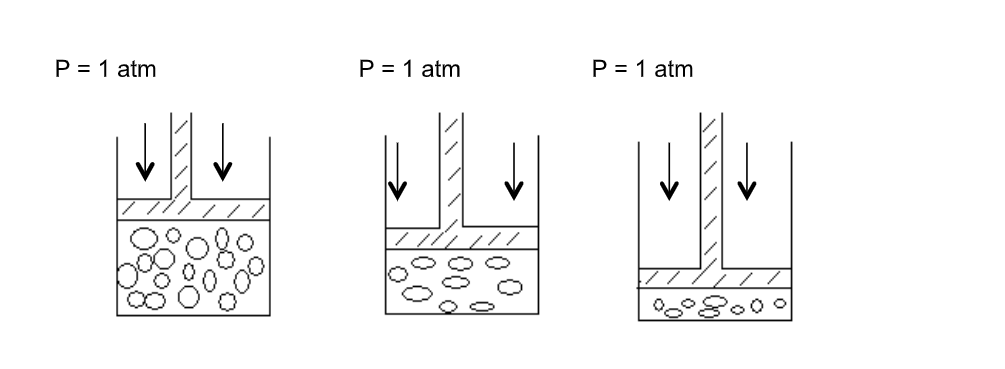

    Charles’ Law

    The volume of a fixed mass of gas is directly proportional to its absolute temperature if the pressure is kept constant

    We can then say that the volume V is directly proportional to the absolute temperature T, ie doubling T doubles V, etc Therefore

    V ∝ T or V = constant X T

    Or V/T = Constant

    Volume V1 = 1dm3 V2 = 2dm3 V3= 3 dm3

    Temperature (OC) 0 ºC 273 ºC 546 ºC

    Temp (K) 273 K 546K 819K

    Volume/Temp 1/273 2/546 3/819

    Equation ∴ V1/T1 = V2/T2 = V3/T3

    ∴ V/T = constant

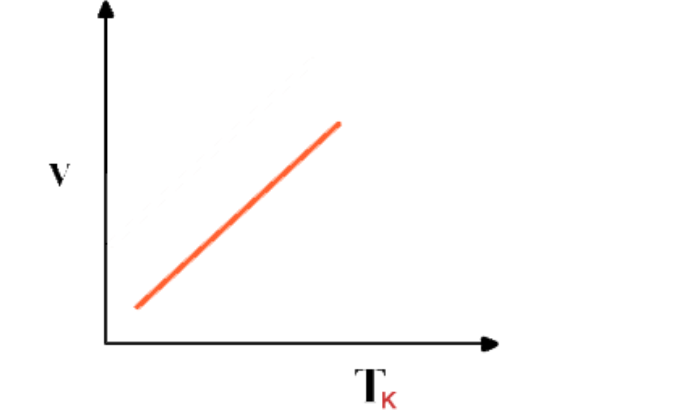

    Graphical representation

    Graph between Volume and absolute temperature of a gas at constant pressure is a "straight line"

    Absolute scale of temperature or absolute zero

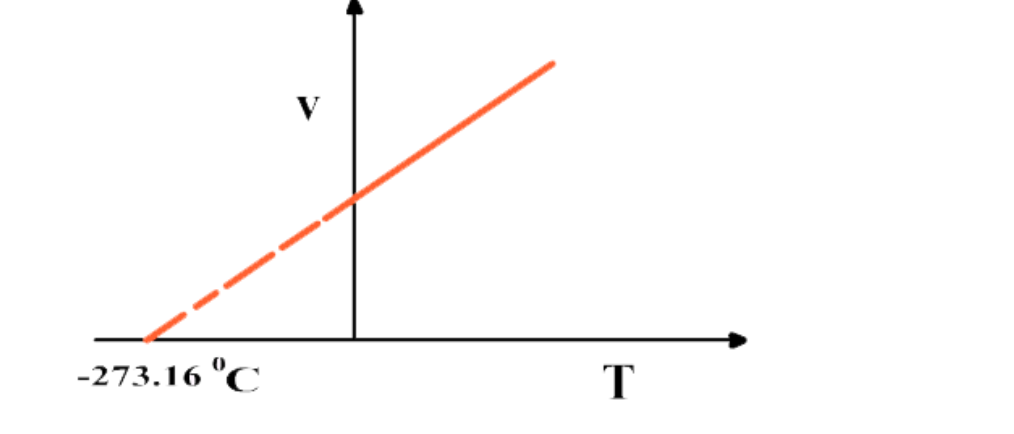

    If the graph between V and T is extrapolated, it intersects T-axis at -273

    16 0C

    At -273

    16 0C volume of any gas theoretically becomes zero as indicated by the graph

    But practically volume of a gas can never become zero

    Actually no gas can achieve the lowest possible temperature and before -273.16 0C all gases are condensed to liquid

    This temperature is referred to as absolute scale or absolute zero

    At -273.16 0C all molecular motions are ceased

    This temperature is called Absolute Zero

    Degrees on this scale are called Kelvin’s and are denoted by K while θ stands for a Celsius scale temperature

    They are exactly the same size as Celsius degrees

    Since –273 0C = 0K, conversions from 0C to K are made by adding 273 T = 273 + θ

    0 0C = 273K

    15 0C = 273 + 15 = 288K

    The letter T represents Kelvin or absolute temperatures and θ stands for a Celsius scale temperature

    Pressure law

    The pressure of a fixed mass of gas is directly proportional to its absolute temperature if the volume is kept constant

    p ∝ T or p = constant X T

    Or p/T = Constant

    The three equations can be combined giving

    Pv = constant

    T For cases in which p, V and T all change from say p1, V1 and T1 to p2, V2 and T2, then P1V1 = p2V2 T1 T2

    Gases and the Kinetic Theory

    The kinetic theory can explain the behaviour of gases

    (a) Causes of gas pressure

    All the molecules in a gas are in rapid motion, with a wide range of speeds, and repeatedly hit the walls of the container in huge numbers per second

    The average force and hence the pressure they exert on the walls is constant since pressure is force on unit area

    (b) Boyle’s law

    If the volume of a fixed mass of gas is halved by halving the volume of the container, the number of molecules per cm3 will be doubled

    There will be twice as many collisions per second with the walls, i.e the pressure is doubled

    This is Boyle’s law

    (c) Temperature

    When a gas is heated and its temperature rises, the average speed of its molecules increases

    If the volume of the gas is to remain constant, its pressure increases due to more frequent and more violent collisions of the molecules with the walls

    If the pressure of the gas is to remain constant, the volume must increase so that the frequency of collisions does not

    13.0.0 The Mole: Formulae and Chemical Equations

    Mole Concept

    What is a Mole?

    A mole is a word which represents a number

    Like the word "dozen" represents the number 12, so "mole" represents the number 6 x 1023

    This number is also called Avogadro's number

    It is a very very big number (6 followed by 23 zeros)

    In the same way that you can have a dozen atoms, or cars, or apples, so you can also have a mole of atoms, or cars, or apples

    Needless to say, chemists are concerned with atoms, ions, molecules and compounds

    A mole is defined as the number of atoms in exactly 12 grams of 12C (carbon twelve)

    The number is called Avogadro's number

    In the above definition, 12 is the mass number of carbon

    So, one mole of carbon atoms has a mass of 12 grams

    The relative atomic mass, which can be written as Ar or RAM, is the number just above the element in the periodic table Relative atomic mass(r.a.m) and moles

    Just as one mole of carbon atoms has a mass of 12 g,

    so the mass of one mole of the atoms of any element

    is its "relative atomic mass" in grams

    For example, look up the relative atomic mass of sodium (Na), (the larger number above it in the periodic table)

    One mole of sodium has a mass of 23 g

    One mole of helium has a mass of 4 g,

    One mole of neon has a mass of 20 g,

    One mole of magnesium has a mass of 24 g, One mole of calcium has a mass of 40 g

    This is easy for elements which exist as atoms

    As discussed ealier, the number of protons added to the number of neutrons is known as the relative atomic mass

    This is the mass of 1 mol of an atom relative to the mass of 1 mol of C atoms that have 6 protons and 6 neutrons, which is taken to be 12.00 g

    However there are complications due to isotopes and so very accurate atomic masses are not whole numbers

    Isotopes are atoms of the same element with different masses due to different numbers of neutrons

    The very accurate atomic mass scale is based on a specific isotope of carbon, carbon-12, 12C = 12.0000 units exactly, for most purposes C = 12 is used for simplicity

    The strict definition of relative atomic mass (Ar) is that it equals average mass of all the isotopic atoms present in the element compared to 1/12th the mass of a carbon-12 atom

    Examples of relative atomic mass calculations

    Example 1: chlorine consists of 75% chlorine-35 and 25% chlorine-37

    Think of the data based on 100 atoms, so 75 have a mass of 35 and 25 atoms have a mass of 37

    The average mass = [ (75 x 35) + (25 x 37) ] / 100 = 35.5

    So the relative atomic mass of chlorine is 35.5 or Ar(Cl) = 35.5

    What about elements which exist as molecules or compounds?

    Relative formula mass of a compound (R.F.M):

    To calculate the mass of one mole of a compound, the number of each type of atom in the compound is multiplied by that atoms relative atomic mass and all those numbers added together

    This value is called the relative formula mass (or relative molecular mass or molar mass) of a compound

    Notice that r.f.m, r.m.m, or Mr have no units because they are ratios

    The molar mass is obtained from r.f.m, r.m.m, or Mr by simply adding g (grams)

    If all the individual atomic masses of all the atoms in a formula are added together you have calculated the relative formula mass (for ionic compounds) or molecular mass (for covalent elements or compounds), Mr. can be used for any element or compound

    Whereas relative atomic mass (above) only applies to a single atom, anything with at least two atoms requires the term relative formula/molecular mass

    The most common error is to use atomic/proton numbers instead of atomic masses, unfortunately, except for hydrogen, they are different!

    Examples of formula/molecular mass calculations:

    Example 1:

    The diatomic molecules of the elements hydrogen H2 and chlorine Cl2

    relative atomic masses, Ar: H = 1, Cl = 35.5

    Formula masses, Mr, are H2 = 2 x 1 = 2, Cl2 = 2 x 35.5 = 71 respectively

    Example 2:

    The compound calcium hydroxide Ca (OH)2(ionic)

    Relative atomic masses are Ca=40, H=1 and O=16

    Mr = 40 + 2 x (16+1) = 74

    (2) Mass from amount:

    The key mathematical equation needed here is -

    mass (g) = relative formula mass (g mol-1) x amount (mol)

    Using the triangular relationship from above if the mass section is covered over then the amount multiplied by the relative formula mass gives the mass


    (i) What is the mass of 0.25 mol of NaCl?

    0.25 mol of NaCl = 58.5 g mol-1 × 0.25 mol

    = 14.63 g

    (ii) What is the mass of 3 mol of Al2(SO4)3?

    3 mol of Al2(SO4)3 = 342 g mol-1 × 3 mol

    = 1026 g or 1.026 kg

    (3) Amount from mass :

    The key mathematical equation needed here is -

    amount (mol) = mass (g) / relative formula mass (g mol-1)

    Using the triangular relationship from above if the amount section is covered over then the mass divided by the relative formula mass gives the amount -

    Exemplar calculations -

    (i) What amount is 117 g of NaCl?

    117 g of NaCl = 117 g / 58

    5 g mol-1 = 2 mol

    (ii) What amount is 68

    4 g of Al2(SO4)2?


    4 g of Al2(SO4)3 = 68.4 g / 342 g mol-1 = 0.2 mol

    (4) Molar mass from mass and amount:

    The key mathematical equation needed here is -

    Relative formula mass (g mol-1) = mass (g) / amount (mol)

    Using the triangular relationship from above if the molar mass section is covered over then the mass divided by the amount gives the relative formula mass

    Exemplar calculation

    What is the molar mass of a compound for which 0.2 mol of it has a mass of 42 g?

    molar mass of compound = 42 g / 0.2 mol

    = 210 g mol-1

    Every mole of any substance contains the same number of the defined species

    The actual particle number is known and is called the Avogadro Constant and is equal to 6

    023 x 1023 'defined species' per mole

    This means there are that many atoms in 12g of carbon (C = 12) or that many molecules of water in 18g (H2O = 1+1+16 = 18, H = 1; O = 16)


    Relative is just a number based on the carbon-12 relative atomic mass scale

    Molar mass is a term used to describe the mass of one mole i.e the relative atomic/formula/molecular mass in grams (g)


    Example 1:

    1 mole of ammonia, NH3, Consists of 1 mole of nitrogen atoms combined with 3 moles of hydrogen atoms

    Or you could say 2 moles of ammonia is formed from 1 mole of nitrogen molecules (N2) and 3 moles of hydrogen molecules (H2)

    Example 2:

    1 mole of aluminium oxide, Al2O3, consists of 2 moles of aluminium atoms combined with 3 moles of oxygen atoms (or 1.5 moles of O2 molecules)

    For calculation purposes learn the following formula for 'Z' and use a triangle if necessary

    (1) mole of Z = g of Z / atomic or formula mass of Z,

    (2) or g of Z = mole of Z x atomic or formula mass of Z

    (3) or atomic or formula mass of Z = g of Z / mole of Z

    where Z represents atoms, molecules or formula of the particular element or compound defined in the question

    Example 1: How many moles of potassium ions and bromide ions in 0.25 moles of potassium bromide?

    1 mole of KBr contains 1 mole of potassium ions (K+) and 1 mole of bromide ions (Br-)

    So there will be 0.25 moles of each ion

    Example 2: How many moles of calcium ions and chloride ions in 2.5 moles of calcium chloride?

    1 mole of CaCl2 consists of 1 mole of calcium ions (Ca2+) and 2 moles of chloride ion (Cl-)

    So there will be 2

    5 x 1 = 2

    5 moles of calcium ions and 2.5 x 2 = 5 moles chloride ions

    mass of NaCl formed = moles x formula mass = 0

    4 x 58.5 = 23.4g NaCl

    Using the Avogadro Constant, you can actually calculate the number of particles in known quantity of material

    Example 3:

    How many water molecules are there in 1g of water, H2O? Formula mass of water = (2 x 1) + 16 = 18

    Every mole of a substance contains 6 x 1023 particles of 'it' (the Avogadro Constant)

    Moles water = 1 / 18 = 0


    Molecules of water = 0.0556 x 6 x 1023 = 3.34 x 1022

    5.Percentage Composition in a Compound:

    1. Calculating % Composition (from masses of each element) Divide the mass of each element by the total mass of the compound and multiply by 100

    2. Calculating % Composition (from formula)

    Calculate formula mass

    Divide the total atomic mass of each element by the formula mass and multiply by 100

    Example 1

    What is the percentage of oxygen in carbon dioxide gas?

    mass of oxygen in one mole of carbon dioxide gas = 2×16 g

    = 32 g

    mass of one mole of carbon dioxide = 12 g + (2×16 g)

    = 44 g

    percentage of oxygen = (32 g/44 g) × 100

    = 72.7 %

    Example 2

    What is the percentage of water of crystallization in hydrated copper (II) sulphate, CuSO4

  • 5H2O? mass of water present in one mole of hydrated copper(II) sulphate =(5×18 g) = 90 g

    mass of one mole of hydrated copper(II) sulphate = 64 g + 32 g + (4×16 g) + (5×18 g) = 250 g

    percentage of water of crystallization present = (90 g/250 g) × 100 = 36 %

    6. Empirical formula of a compound :

    This technique covers essentially the reverse of the above process

    A typical question here involves the calculation of the lowest possible whole number ratio of atoms in an organic molecule, given the percentage elemental composition for that molecule

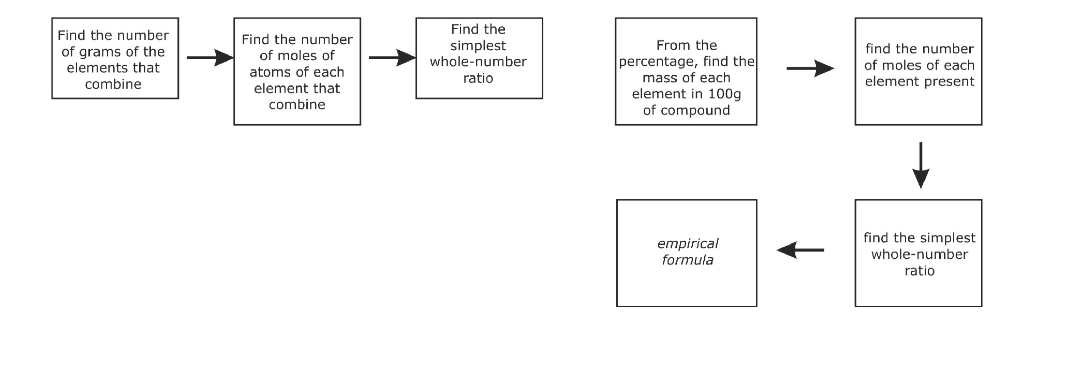

    Calculating Empirical Formula (from % Composition)

  • convert % of each element to grams based on 100 grams of the compound

  • multiply grams of each element by 1/molar mass that element

  • compare ratio of moles of each element and divide each by the smallest

  • if result in step 3 gives a ratio with decimal equivalent to 1/4, 1/3, 1/2, 2.3, 3/4 instead of whole numbers, convert to the fraction and multiply all ratios by the denominator or the fraction

    Calculating Empirical Formula (from experimentally determined masses)

  • multiply the mass of each element (in grams) by 1/molar mass of that element
  • Continue with steps 3 & 4 from IV above

    Example. An organic compound contains carbon and hydrogen only in the ratio of 85.7 % carbon to 14.3 % hydrogen

    What is the empirical formula for that compound?

    C H % composition 85.7 % 14.3 %

    mass of element in 100 g of compound 85.7 g 14.3 g

    amount of element in 100 g of compound 85.7 g/12 g mol-1 = 7.14 mol 14.3 g/1 g mol-1 = 14.3 mol

    lowest whole number ratio of element's amounts 7.14 mol/7.14 mol = 1 14.3 mol/7.14 mol = 2

    The empirical formula for the compound is CH2

    7. Molecular formula of a compound:

    The molecular formula for a compound is simply the empirical formulae multiplied by some whole number (1, 2, 3, etc)

    Knowing the molar mass of the compound enables the molecular formula of it to be found

    Finding Molecular Formulas (when molar mass is known)

  • calculate the empirical formula

  • use the equation : (empirical formula mass)x n = molar mass

  • find value for n: n = molar mass/empirical formula mass

  • multiply each subscript in empirical formula by value for n


    The actual molar mass of the compound in the previous example is 42 g mol-1 What is the molecular formula for this compound?

    The molar mass of CH2 = (12+(2×1)) g mol-1= 14 g mol-1

    The molecular formula of this compound is (CH2)n, where n is a positive whole number

    The value of n = 42 g mol-1 / 14 g mol-1

    = 3

    The molecular formula is (CH2)3 or more properly C3H6

    Examples of where the empirical formula is the same as the molecular formula

    Water H2O, methane CH4, propane C3H8 (these molecular formula cannot be 'simplified') Examples of where the molecular formula is different from the empirical formula Ethane C2H6 (CH3), phosphorus (V) oxide P4.O10

    (P2O5), benzene C6H6 (CH)

    Three examples are set out below to illustrate all the situations

    The relative atomic masses of the elements (Ar) are given in the tabular format method of solving the problem

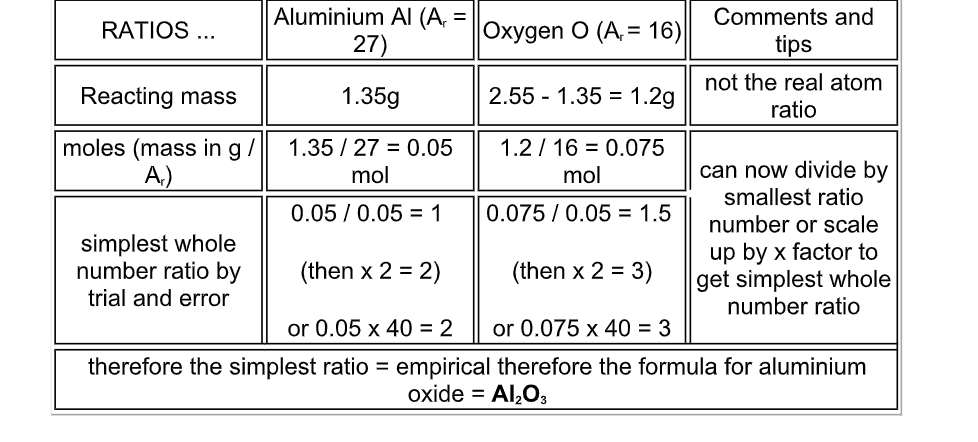

    Example 2:

    1.35g of aluminium was heated in oxygen until there was no further gain in weight

    The white oxide ash formed weighed 2.55g

    Deduce the empirical formula of aluminium oxide

    Note: to get the mass of oxygen reacting, all you have to do is to subtract the mass of metal from the mass of the oxide formed

    Example 3:

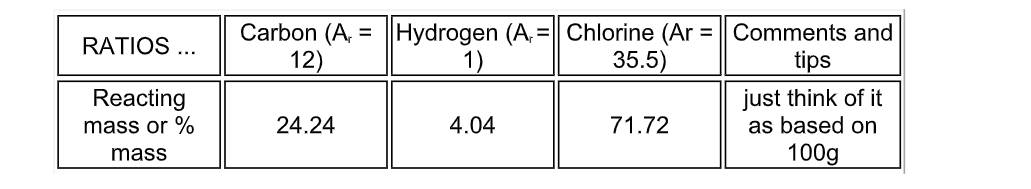

    A chlorinated hydrocarbon compound when analysed, consisted of 24

    24% carbon, 4

    04% hydrogen, 71.72% chlorine

    The molecular mass was found to be 99 from another experiment

    Deduce the empirical and molecular formula

    (you can 'treat' the %'s as if they were grams, and it all works out like examples 1 and 2)

    8. Reacting Mass Calculations

    You can use the ideas of relative atomic, molecular or formula mass and the law of conservation of mass to do quantitative calculations in chemistry

    Underneath an equation you can add the appropriate atomic or formula masses

    This enables you to see what mass of what, reacts with what mass of other reactants

    It also allows you to predict what mass of products are formed (or to predict what is needed to make so much of a particular product)

    You must take into account the balancing numbers in the equation (e.g 2Mg), as well of course, the numbers in the formula (e.g O2)

    NOTE: The symbol equation must be correctly balanced to get the right answer!

    Example 1:

    (a) In a copper smelter, how many tonne of carbon (charcoal, coke) is needed to make 16 tonne of copper?

    (b) How many tones of copper can be made from 640 tones of copper oxide ore?

    (a) 2CuO(s) + C(s) 2Cu(s) + CO2(g) >

    (atomic masses Cu=64, O=16, C=12)

    Formula Mass ratio is 2 x (64+16) + (12) ==> 2 x (64) + (12 + 2x16)

    = Reacting mass ratio 160 + 12 ==> 128 + 44

    (In the calculation, impurities are ignored)

    12 of C makes 128 of Cu

    Scaling down numerically: mass of carbon needed

    = 12 x 16 / 128 = 1

    5 tonne of C

    (b) 160 of CuO make 128 of Cu (or direct from formula 80 CuO 64 Cu)

    Scaling up numerically: mass copper formed

    = 128 x 640 / 160 = 512 tones Cu

    Example 2:

    What mass of carbon is required to reduce 20 tonne of iron(II) oxide ore if carbon monoxide is formed in the process as well as iron?

    (Atomic masses: Fe = 56, O = 16)

    Reaction equation: Fe2O3 + 3C 2Fe + 3CO

    Formula mass Fe2O3 = (2x56) + (3x16) = 160

    160 mass units of iron oxide reacts with 3 x 12 = 36 mass units of carbon

    So the reacting mass ratio is 160: 36

    So the ratio to solve is 20: x, scaling down,

    x = 36 x 20/160 = 4

    5 tones carbon needed

    Note: Fe2O3 + 3CO 2Fe + 3CO2 is the other most likely reaction that reduces the iron ore to iron

    9 Molar Volume of Gas

    Avogadro's Law states that equal volumes of gases under the same conditions of temperature and pressure contain the same number of molecules

    So the volumes have equal moles of separate particles in them

    One mole of any gas (or the formula mass in g), at the same temperature and pressure occupies the same volume

    This is 24dm3 (24 litres) or 24000 cm3, at room temperature and pressure (r.t.p)

    Avogadro’s Law and Molar Volume

    Equal volumes of all gases contain the same number of molecules

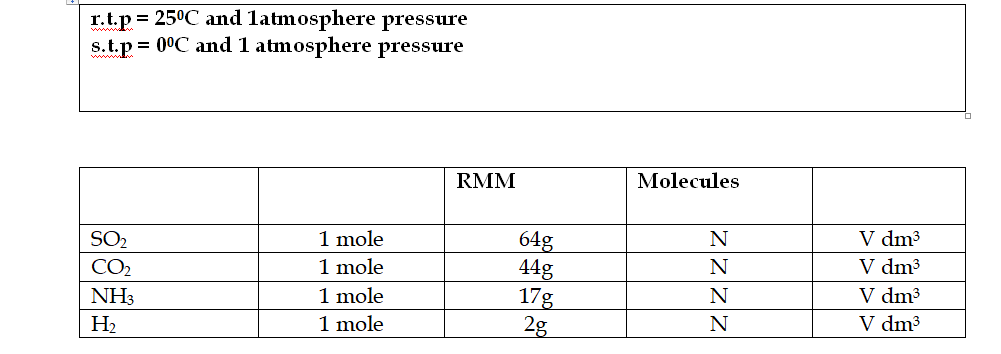

    In this table, N =6

    02 X 1023 molecules, while V= 24000 cm3 at room temperature and pressure (r.t.p), or 22400 cm3 at standard temperature and pressure (s.t.p)

    1 mole of any gas always contains the same number of molecules (6.02 X 1023) and hence has the same volume (at the same temperature and pressure)

    When gases combine, they do so in small volumes which bear a simple ratio to one another and to the volume of product if gaseous

    All volumes must be measured at the same temperature and pressure

    Some handy relationships for substance Z below:

    moles Z = mass of Z gas (g) / atomic or formula mass of gas Z (g/mol)

    mass of Z in g = moles of Z x atomic or formula mass of Z

    atomic or formula mass of Z = mass of Z / moles of Z

    1 mole = formula mass of Z in g

    gas volume of Z = moles of Z x molar volume

    moles of Z = gas volume of Z / molar volume

    Example 1: What is the volume of 3

    5g of hydrogen? [Ar(H) = 1]

    Hydrogen exists as H2 molecules, so Mr(H2) = 2, so 1 mole or

    Formula mass in g = 2g

    So moles of hydrogen = 3

    5/2 = 1

    75 mol H2 So volume H2 = mol H2 x molar volume = 1

    75 x 24 = 42 dm3 (or 42000 cm3)

    Example 4:

    Given the equation MgCO3(s) + H2SO4(aq) ==> MgSO4(aq) + H2O(l) +CO2(g)

    What mass of magnesium carbonate is needed to make 6 dm3 of carbon dioxide at r.t.p?

    [Ar's: Mg = 24, C = 12, O = 16, H =1 and S = 32]

    method (a):

    Since 1 mole = 24 dm3, 6 dm3 is equal to 6/24 = 0.25 mol of gas From the equation, 1 mole of MgCO3 produces 1 mole of CO2, which occupies a volume of 24 dm3

    So 0.25 moles of MgCO3 is need to make 0

    25 mol of CO2 Formula mass of MgCO3 = 24 + 12 + 3x16 = 84, So required mass of MgCO3 = mol x formula mass = 0.25 x 84 = 21g

    Method (b):

    Converting the equation into the required reacting masses

    Formula masses: MgCO3 = 84 (from above), CO2 = 12 + 2x16 = 44

    MgCO3: CO2 equation ratio is 1 : 1

    so 84g of MgCO3 will form 44g of CO2 44g of CO2 will occupy 24dm3 so scaling down, 6 dm3M of CO2 will have a mass of 44 x 8/24 = 11g if 84g MgCO3 ==> 44g of CO2, then

    21g MgCO3 ==> 11g of CO2 by solving the ratio, scaling down by factor of 4

    10.Reacting Gases

    Avogadro's Law states that 'equal volumes of gases at the same temperature and pressure contain the same number of molecules' or moles of gas

    This means the molecule ratio of the equation automatically gives us the gas volumes ratio of reactants and products, if all the gas volumes are measured at the same temperature and pressure

    This calculation only applies to gaseous reactants or products and if they are all at the same temperature and pressure

    Example 1: HCl(g) + NH3(g) NH4Cl(s)

  • 1 volume of hydrogen chloride will react with 1 volume of ammonia to form solid ammonium chloride
  • e.g 25cm3 + 25cm3 ==> products or 400dm3 + 400 dm3 ==> products (no gas formed)

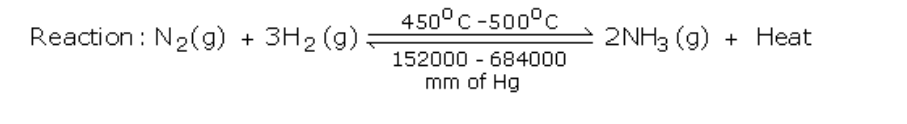

    Example 2: N2(g) + 3H2(g) 2NH3(g)

  • 1 volume of nitrogen reacts with 3 volumes of hydrogen to produce 2 volumes of ammonia
  • e.g 50 cm3 nitrogen reacts with 150 cm3 hydrogen (3 x 50) ==> 100 cm3 of ammonia (2 x 50)

    Example 3: C3H8(g) + 5O2(g) CO2(g) + 4H3O(l)

    (a) What volume of oxygen is required to burn 25cm3 of propane, C3H8

  • Theoretical reactant volume ratio is C3H8 : O2 is 1 : 5 for burning the fuel propane

  • so actual ratio is 25 : 5x25, so 125cm3 oxygen is needed

    (b) What volume of carbon dioxide is formed if 5dm3 of propane is burned?

  • Theoretical reactant-product volume ratio is C3H8 : CO2 is 1 : 3
  • so actual ratio is 5 : 3x5, so 15dm3 carbon dioxide is formed

    (c) What volume of air (1/5th oxygen) is required to burn propane at the rate of 2dm3 per minute in a gas fire?

  • Theoretical reactant volume ratio is C3H8 : O2 is 1 : 5
  • so actual ratio is 2 : 5x2, so 10dm3 oxygen per minute is needed,
  • Therefore, since air is only 1/5th O2, 5 x 10 = 50dm3 of air per minute is required

    Stoichiometric and Ionic Equations

    Chemical word equations

    For any reaction, what you start with are called the reactants, and what you form are called the products

    So any chemical equation shows in some way the overall chemical change of


    This can be written in words or symbols/formulae

    The arrow means the direction of change from reactants =to=> products No symbols or numbers are used in word equations

    Always try to fit all the words neatly lined up from left to right, especially if it is a long word equation

    The word equation is presented to summarise the change of reactants to products

    Stoichiometric Equations

    Consider the reaction between zinc sulphide and oxygen

    The equation can be written as; ZnS(s) + O2(g) ZnO(s) + SO2(g) This is an example of a stoichiometric, or normal chemical(or symbol) equation

    From this equation, we can deduce;

  • What substances react(zinc sulphide (solid) and oxygen(gas)

  • What products are formed (zinc oxide(solid) and sulphur dioxide(gas)

  • Relative number of atoms and molecules taking part in the chemical reaction
  • The state symbols(s), (l) or (g) to tell us the state of each reactant and each product

    Rules on Balancing Symbol equations

    1. You should know what the reactants and products are,

    2. write a word equation with appropriate reactants on the left and products on the right

    3. Writing the correct symbol or formula for each equation component

    Numbers in a formula are written as subscripts after the element concerned

  • e.g H2SO4 means 2 H's, 1 S and 4 O's

  • or the subscript number can double, treble etc a part of the formula
  • e.g Ca(OH)2 means 1 Ca and 2 OH's (or 2 O's and 2 H's in total) Numbers before a formula double or treble it etc

  • eg. 2NaCl means 2 Na's and 2 Cl's in total

  • or 2H2SO4 means 2 x H2SO4 = 4 H's, 2 S's and 8 O's in total

    NOTE: If the number is 1 itself, by convention, no number is shown in a formula or before a formula

    4 Using numbers if necessary to balance the equation

    5 If all is correct, then the sum of atoms for each element should be the same on both side of the equation arrow

    a) in other words: atoms of products = atoms of reactants

    This is a chemical conservation law of atoms and later it may be described as the 'law of conservation of mass

    b) the equations are first presented in 'picture' style and then written out fully with state symbols

    c) The individual formulas involved and the word equations have already been presented above

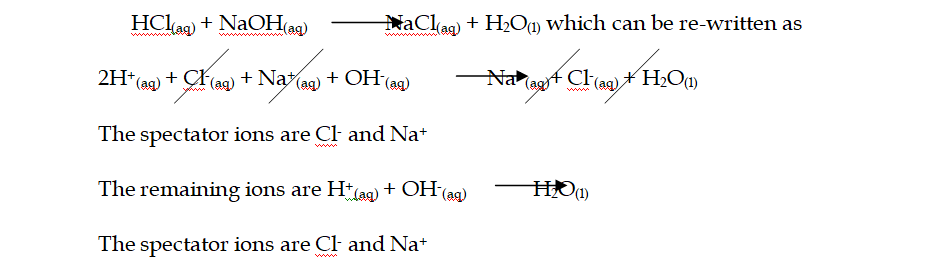

    Ionic Equations

  • In many reactions only certain ions change their 'chemical state' but other ions remain in exactly the same original physical and chemical state

  • The ions that do not change are called 'spectator ions'

  • The ionic equation represents the 'actual' chemical change and omits the spectator ions

    1. Acid-base reactions:

    Acids can be defined as proton donors

    A base can be defined as a proton acceptor

    Any acid-alkali neutralisation involves the hydroxide ion is (base) and this accepts a proton from an acid

    2. Insoluble salt formation:

    An insoluble salt is made by mixing two solutions of soluble compounds to form the insoluble compound in a process called 'precipitation'

    A precipitation reaction is generally defined as 'the formation of an insoluble solid on mixing two solutions or a gas bubbled into a solution'

    (a) Silver chloride is made by mixing solutions of solutions of silver nitrate and sodium chloride

    Ionically : Ca2+(aq) + CO32-(aq) -> CaCO3(s)

  • The spectator ions are Cl- and Na+

    (3) Redox reaction analysis:

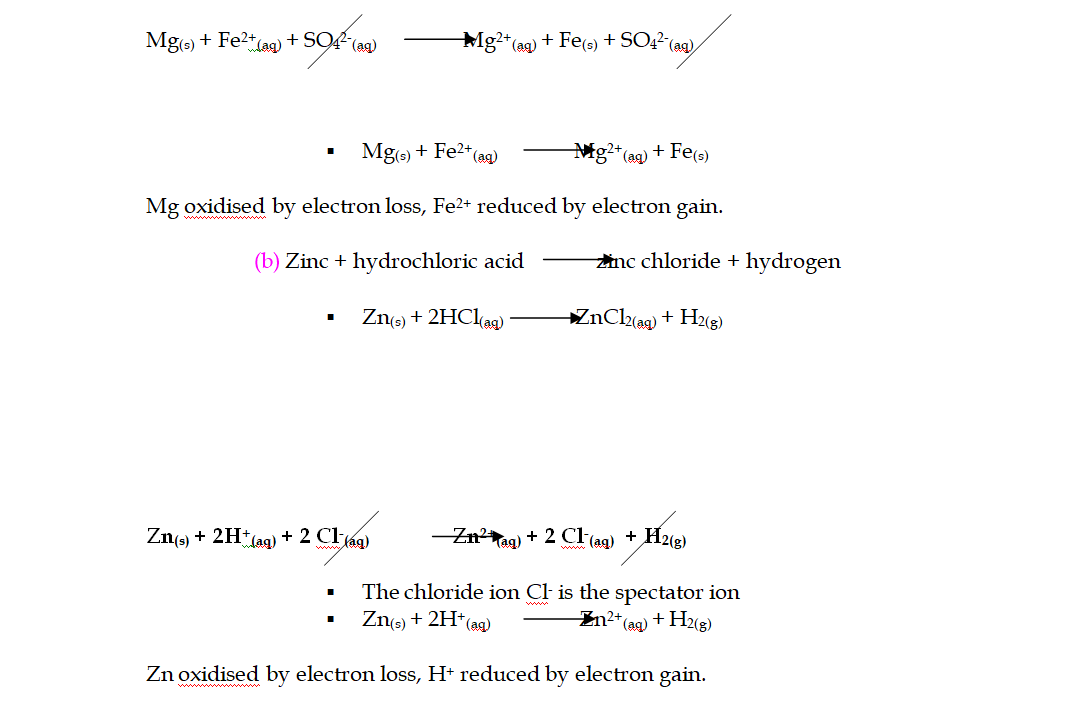

    (a) Magnesium + iron (II) sulphate magnesium sulphate + iron

  • Mg(s) + FeSO4(aq) MgSO4(aq) + Fe(s)

  • This is the 'ordinary molecular' equation for a typical metal displacement reaction, but this does not really show what happens in terms of atoms, ions and electrons, so we use ionic equations like the one shown below

  • The sulphate ion SO42-(aq) is called a spectator ion, because it doesn't change in the reaction and can be omitted from the ionic equation

    No electrons show up in the full equations because electrons lost by x = electrons gained by y!!

    11. MOLARITY

    It is very useful to be known exactly how much of a dissolved substance is present in a solution of particular concentration or volume of a solution

    So we need a standard way of comparing the concentrations of solutions

    The concentration of an aqueous solution is usually expressed in terms of moles of dissolved substance per cubic decimetre, mol dm-3 , this is called molarity, sometimes denoted in shorthand as M

    Note: 1dm3 = 1 litre = 1000ml = 1000 cm3 , so dividing cm3 /1000 gives dm3 , which is handy to know since most volumetric laboratory apparatus is calibrated in cm3 (or ml), but solution concentrations are usually quoted in molarity, that is mol/dm3 (mol/litre)

    Equal volumes of solution of the same molar concentration contain the same number of moles of solute i.e the same number of particles as given by the chemical formula

    You need to be able to calculate:

  • The number of moles or mass of substance in an aqueous solution of given volume and concentration
  • The concentration of an aqueous solution given the amount of substance and volume of water

    You should recall and be able to use each of the following relationships

    (1) molarity of Z = moles of Z / volume in dm3 (2) molarity x formula mass of solute = solute concentration in g/dm3 , dividing this by 1000 gives the concentration in g/cm3 (3) (concentration in g/dm3 ) / formula mass = molarity in mol/dm3 , (4) moles Z = mass Z / formula mass of Z

    (5) 1 mole = formula mass in grams

    Example 1

    What mass of sodium hydroxide (NaOH) is needed to make up 500 cm3 (0.5 dm3 ) of a 0.5M solution?

    [Ar's: Na = 23, O = 16, H = 1]

    1 mole of NaOH = 23 + 16 + 1 = 40g

    for 1000 cm3 (1 dm3 ) of 0.5M you would need 0.5 moles NaOH

    which is 0.5 x 40 = 20g however only 500 cm3 of solution is needed compared to 1000 cm3 so scaling down: mass NaOH required = 20 x 500/1000 = 10g

    Example 2

    How many moles of H2SO4 are there in 250cm3 of a 0.8M sulphuric acid solution? What mass of acid is in this solution?

    [Ar's: H = 1, S = 32, O = 16]

    formula mass of sulphuric acid = 2 + 32 + (4x16) = 98, so 1 mole = 98g if there was 1000 cm3 of the solution, there would be 0.8 moles H2SO4 but there is only 250cm3 of solution, so scaling down

    moles H2SO4 = 0,8 x (250/1000) = 0.2 mol mass = moles x formula mass, which is 0

    2 x 98 = 19.6g of H2SO4

    Example 3

    5.95g of potassium bromide was dissolved in 400cm3 of water<,Calculate its molarity

    [Ar's: K = 39, Br = 80]

    moles = mass / formula mass, (KBr = 39 + 80 = 119)

    mol KBr = 5.95/119 = 0.05 mol

    400 cm3 = 400/1000 = 0.4 dm3

    molarity = moles of solute / volume of solution molarity of KBr solution = 0.05/0.4 = 0.125M

    Example 4

    What is the concentration of sodium chloride (NaCl) in g/dm3 and g/cm3 in a 1.50 molar solution?

    At Masses: Na = 23, Cl = 35.5, formula mass NaCl = 23 + 35.5 = 58.5 Therefore concentration = 1.5 x 58.5 = 87.8 g/dm3 , and concentration = 87.75 / 1000 = 0.0878 g/cm3

    Example 5

    A solution of calcium sulphate (CaSO4) contained 0.5g dissolved in 2dm3 of water

    Calculate the concentration in (a) g/dm3 ,

    (b) g/cm3 and

    (c) mol/dm3

    (a) concentration = 0.5/2 = 0.25 g/dm3 , then since 1dm3 = 1000 cm3

    (b) concentration = 0.25/1000 = 0

    00025 g/cm3 (c) At.masses: Ca = 40, S = 32, O = 64, f

    mass CaSO4 = 40 + 32 + (4 x 16) = 136 moles CaSO4 = 0.5 / 136 = 0.00368 mol

    concentration CaSO4 = 0.00368 / 2 = 0.00184 mol/dm3

    12. Titration: Acid and Alkali

    Titrations can be used to find the concentration of an acid or alkali from the relative volumes used and the concentration of one of the two reactants

    You should be able to carry out calculations involving neutralisation reactions in aqueous solution given the balanced equation or from your own practical results

    1. Note again: 1dm3 = 1 litre = 1000ml = 1000 cm3 , so dividing cm3 /1000 gives dm3

    2. and other useful formulae or relationships are:

  • moles = molarity (mol/dm3 ) x volume (dm3 =cm3 /1000),

  • molarity (mol/dm3 ) = mol / volume (dm3 =cm3 /1000),
  • 1 mole = formula mass in grams

    In most volumetric calculations of this type, you first calculate the known moles of one reactant from a volume and molarity

    Then, from the equation, you relate this to the number of moles of the other reactant, and then with the volume of the unknown concentration, you work out its molarity

    Example 1:

    25 cm3 of a sodium hydroxide solution was pipetted into a conical flask and titrated with 0

    2M hydrochloric acid

    Using a suitable indicator it was found that 15 cm3 of acid was required to neutralise the alkali

    Calculate the molarity of the sodium hydroxide and concentration in g/dm3

    equation NaOH(aq) + HCl(aq) NaCl(aq) + H2O(l)

    moles HCl = (15/1000) x 0.2 = 0.003 mol

    moles HCl = moles NaOH (1 : 1 in equation)

    so there is 0.003 mol NaOH in 25 cm3 scaling up to 1000 cm3 (1 dm3 ), there are

    0.003 x (1000/25) = 0.12 mol NaOH in 1 dm3 molarity of NaOH is 0.12M or mol dm-3 since mass = moles x formula mass, and Mr(NaOH) = 23 + 16 + 1 = 40

    concentration in g/dm3 is 0

    12 x 40 = 4.41g/dm3

    Example 2:

    20 cm3 of a sulphuric acid solution was titrated with 0.05M potassium hydroxide

    If the acid required 36 cm3 of the alkali KOH for neutralisation what was the concentration of the acid?

    equation 2KOH(aq) + H2SO4(aq) K2SO4 + 2H2O(l) mol KOH = 0.05 x (36/1000) = 0

    0018 mol mol H2SO4 = mol KOH / 2 (because of 1 : 2 ratio in equation above) mol H2SO4 = 0.0018/2 = 0.0009 (in 20 cm3 ) scaling up to 1000 cm3 of solution = 0

    0009 x (1000/20) = 0.045 mol mol H2SO4 in 1 dm3 = 0

    045, so molarity of H2SO4 = 0.045M or mol dm-3 since mass = moles x formula mass, and Mr(H2SO4) = 2 + 32 + (4x16) = 98 Concentration in g/dm3 is 0

    045 x 98 = 4.41g/dm3 How to carry out a titration

    The diagrams show the typical apparatus (1)-(6) used in manipulating liquids and on the left a brief three stage description of titrating an acid with an alkali:

    Volumetric Analysis (Titrations)

    A titration is a laboratory procedure where a measured volume of one solution is added to a known volume of another reagent until the reaction is complete

    The operation is an example of volumetric (titrimetric) analysis

    The equivalence point is usually shown by the colour change of an indicator and is known as the end-point

    Volumetric analysis is a powerful technique, which is used in a variety of ways by chemists in many different fields

    Practical Aspects

    The practical aspects of titrations are required in the assessment of practical skills

    Knowledge of the techniques of titrations is expected but it would be normal to assume that all apparatus would have been washed with distilled/deionised water

    The description should include which reagent is placed in the burette, name of indicator (but no reason for choice of indicator), detection of endpoint and what should be observed, and repetition for accuracy

    When you have finished this section you should be able to:

  • Perform titrations
  • Record titration results in the form of a table

    Use of a Volumetric Flask

    To prepare a solution of precisely known concentration (a standard solution), a definite amount of solute must be dissolved in a solvent to give a definite volume of solution

    The definite amount of material is measured by weighing, and the definite volume of solution prepared in a volumetric flask

    A volumetric flask contains a definite volume when correctly filled to the calibration mark at the temperature stated on the flask

    Tip the solid from a weighing bottle into a large (250 cm3) beaker and add about 50 cm3 of distilled water from a wash bottle

    Stir well with a glass rod to dissolve

    Take great care not to lose any of the solution and remember to wash the solution off the stirring rod back into the beaker

    Rinse out the volumetric flask with distilled water and pour the cold solution into the flask through a clean filter funnel

    Wash out the beaker several times and add all the washings to the flask

    Now fill the flask to within about 1 cm of the calibration mark on the neck

    Finally add water dropwise until the meniscus just rests on the calibration mark

    Stopper the flask and invert a number of times to thoroughly mix the contents

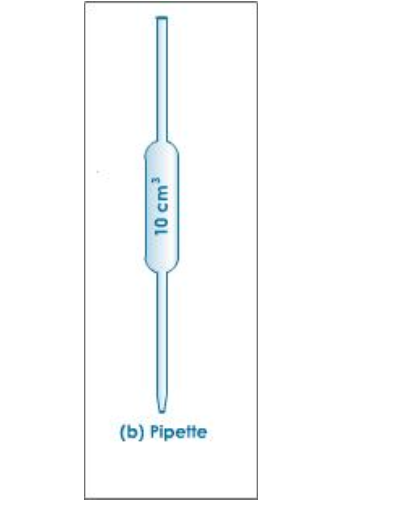

    Use of a Pipette The pipette is designed to deliver a definite fixed volume of liquid when correctly filled to its calibration mark

    Before use, a pipette must be washed out with the solution it is to measure

    To fill the pipette, use a safety filler to suck solution up a few centimetres above the calibration mark

    Let the solution down until the bottom of the meniscus just touches the calibration mark

    For a titration the contents of the pipette are run into a conical flask, which has been well washed with distilled water

    Allow the pipette to drain for about 20 seconds, then touch the tip to the surface of the liquid in the conical flask

    The volume of solution delivered by the pipette is known as the aliquot

    Use of a Burette

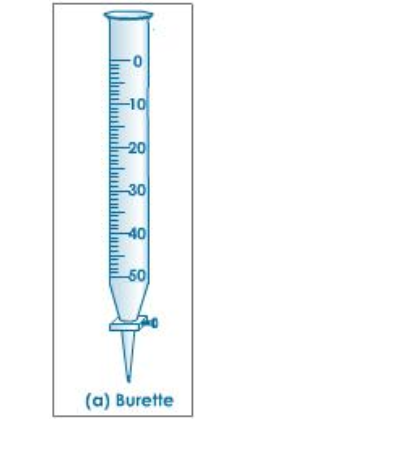

    The burette is designed to deliver definite but variable volumes of liquid

    First rinse out the burette with the solution it is to contain

    Clamp the burette vertically in a stand

    Fill the burette carefully using a beaker and a filter funnel

    Open the tap briefly to fill the burette below the tap making sure there are no trapped air bubbles

    Read the burette scale by observing the position of the bottom of the liquid meniscus, making sure your eyes are level with the graduation mark

    To observe the meniscus more clearly, hold a white card behind the burette

    Record the volume reading to the nearest 0.05 cm3

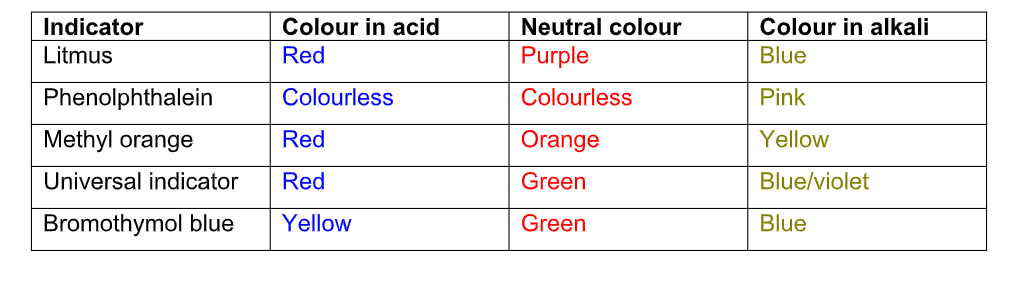

    Some common indicators

    Titration Technique

    When performing a titration, place the conical flask containing the aliquot on a white tile under the burette so that the tip of the burette is inside the mouth of the conical flask to avoid splashing

    Add a few drops of a suitable indicator to the solution in the conical flask

    First perform a ‘rough’ titration by taking the burette reading and running in the solution in approximately 1 cm3 portions, while swirling the flask vigorously

    When the end-point is reached, as shown by the indicator changing colour, quickly close the tap

    The new burette reading will give you a rough idea (to within about 1 cm3) of the volume to be added

    Now repeat the titration with a fresh aliquot

    As the rough end-point volume is approached, add solution from the burette one drop at a time until the indicator changes colour

    Record the volume

    The volume run out from the burette to reach the end point is known as the titre

    Recording Titration Results

    The results of a titration should be recorded;

  • Immediately
  • In ink
  • In a table
  • To the correct number of decimal places

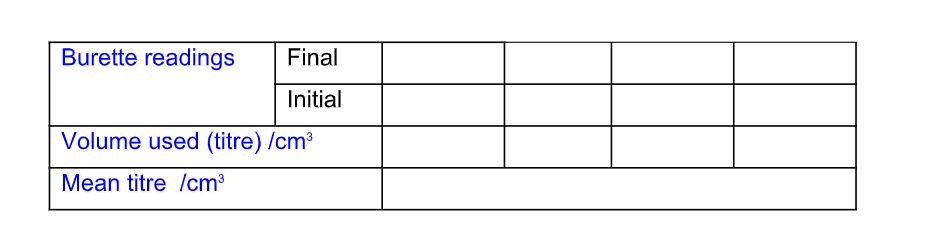

    Record the titration results in the form of a table


    Record burette readings to the nearest 0.05 cm3 (approximately 1 drop)

    Consecutive titrations should agree to within 0.10 cm3 and, strictly, you should repeat the titrations until this is achieved

    However you may not have either the time or materials available to do this

    With practice, your technique should improve so that you should not need to do more than 4 titrations (1 trial + 3 accurate)

    Calculate and use the mean (average) of the two (or preferably three) closest consecutive readings and quote this to the nearest 0.05 cm3

    What do examiners look for in your answer sheet?

    Calculating the Concentration of a Solution from Titration Data

    When you have finished this section you should be able to:

  • Calculate the concentration of a solution from titration data and the balanced equation

  • Calculate the volume of solution required for titration from titration data and the balanced equation

    14.0.0 Organic Chemistry 1

    Products from Oil

    Coal, Oil and Natural Gas Formation - Fossil Fuels

    Just as coal has formed by the action of heat and pressure on the remains of trees and plants on land over millions of years, so oil and natural gas have formed by the action of heat and pressure on the remains of sea plants and animals over millions of years

    The remains were buried in sediments which excluded the air (kept out oxygen) and stopped them decaying

    More sediment buried the remains deeper and deeper until pressure and heat eventually turned them into coal, oil and natural gas

    They are called fossil fuels because they are buried underground (from Latin fossilis - dug up)

    Fossil fuels are a finite resource and non-renewable

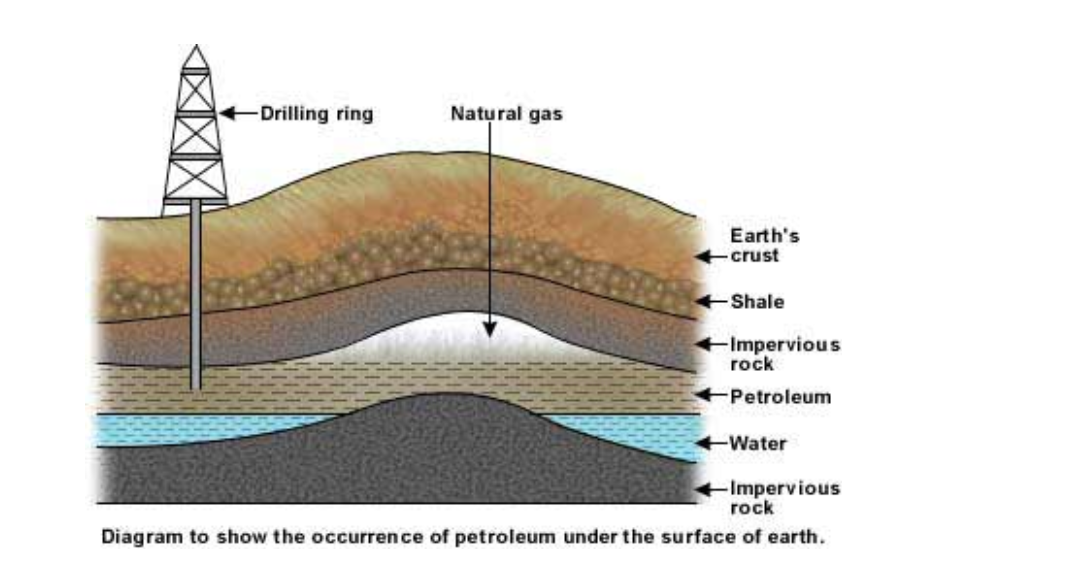

    The oil deposits are formed in porous rock sediments

    Porous rock has pores in it

    Pores are small holes (see for example sandstone)

    The small holes allow the oil and natural gas to pass through the rock and rise until they are stopped by a layer of non-porous rock

    Non-porous rock (for example shale) has no holes, and acts as a barrier to prevent the oil and natural gas rising

    The oil and natural gas become trapped underground

    The oil is called crude oil (or petroleum, from Latin - rock oil), and has natural gas in it or in a pocket above it trapped by non-porous rock

    Drilling through the rock allows the oil and gas to escape to the surface

    Natural gas is mostly methane (CH4)

    Crude oil is a mixture of substances (mostly hydrocarbons)

    So what are Hydrocarbons?

    Crude oil is a mixture of substances which are mostly hydrocarbons

    A hydrocarbon is a compound containing hydrogen and carbon only

    Since crude oil is a mixture of different hydrocarbon compounds, the different hydrocarbons will have different boiling points

    A sample of crude oil will therefore have a range of boiling points, and the mixture can be separated by fractional distillation

    Fractional Distillation of Crude Oil

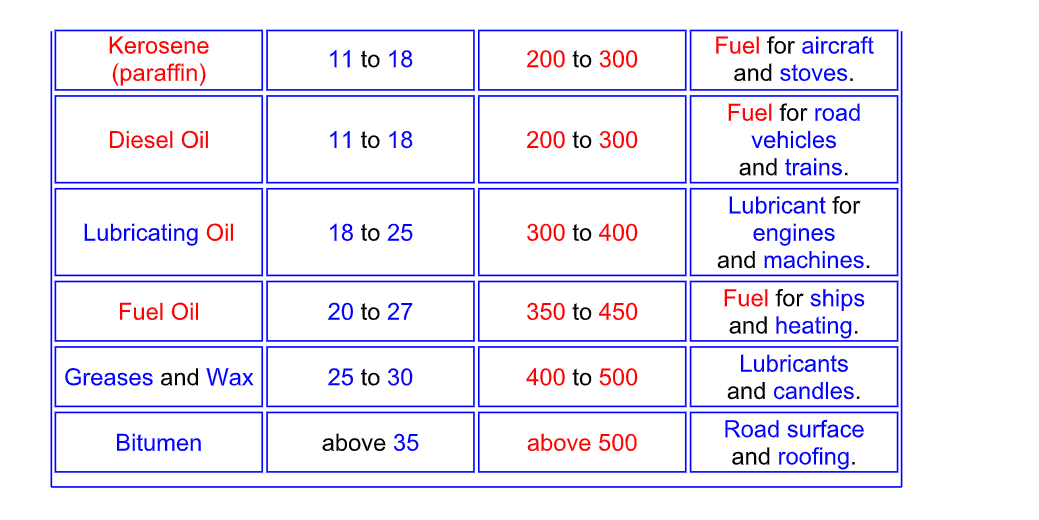

    Naming the fractions

    The hydrocarbon fractions are mainly alkanes

    Crude oil is heated until it boils and then the hydrocarbon gases are entered into the bottom of the fractionating column

    As the gases go up the column the temperature decreases

    The hydrocarbon gases condense back into liquids and the fractions are removed from the sides of the column

    The smaller the hydrocarbon molecule, the further it rises up the column before condensing

    The fractionating column operates continuously

    The temperatures shown are approximate

    A sample of crude oil may be separated in the laboratory by fractional distillation

    The collection vessel is changed as the temperature rises to collect the different fractions

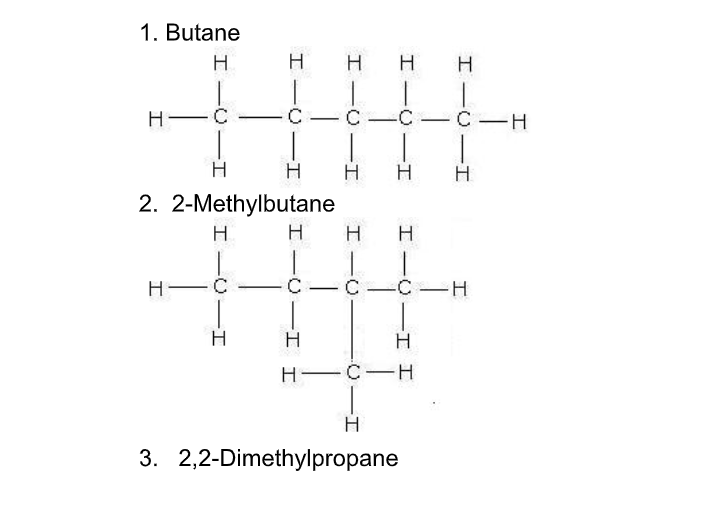

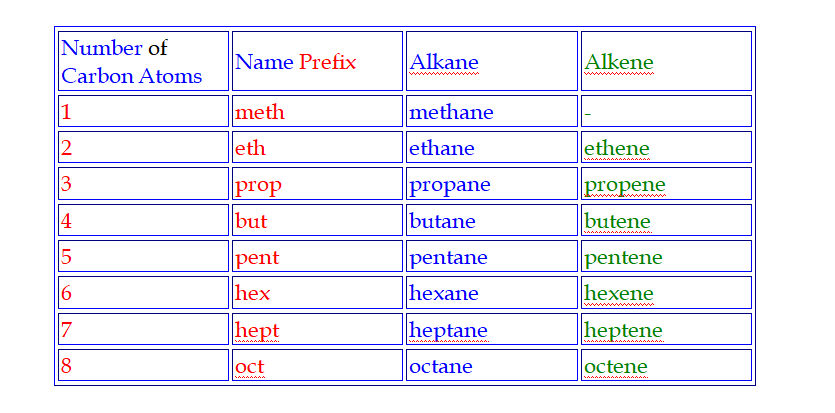

    Naming hydrocarbons

    Hydrocarbons are named according to the number of carbon atoms in the molecule

    Meth is pronounced meeth (like teeth), Eth is pronounced eeth (like teeth), Prop is pronounced prope (like rope), But is pronounced bute (like beauty)

    Pent is pronounced pent (like pentagon)

    Hex is pronounced hex (like hexagon)

    Hept is pronounced hept (like heptagon)

    Oct is pronounced oct (like octagon)

    The hydrocarbon fractions are mainly alkanes

    Properties of Different Fractions

    The different hydrocarbon fractions obtained from crude oil condense at different temperatures

    The larger the hydrocarbon molecule (the more carbon atoms it has)

    1) The higher the condensing temperature (the higher the boiling point)

    2) The more viscous it is (it takes longer to flow - like syrup)

    3) The less volatile it is (it evaporates less quickly)

    4) The less flammable it is (it does not set fire so easily)

    Gases from volatile hydrocarbons are denser than air and pose a fire hazard at ground level

    This is why ignition sources (such as smoking) are not allowed at petrol stations

    Families of organic compounds

    Homologous series

    Organic compounds belong to different families, though all are based on carbon C, hydrogen H, and other elements such as oxygen O and nitrogen N etc The compounds in each family have a similar chemical structure and a similar chemical formula

    Each family of organic compounds forms what is called a homologous series

    Different families arise because carbon atoms readily join together in chains (catenation) and strongly bond with other atoms such as hydrogen, oxygen and nitrogen

    The result is a huge variety of 'organic compounds'

    The name comes from the fact that most of the original organic compounds studied by chemists came from plants or animals

    A homologous series is a family of compounds which have a general formula and have similar chemical properties because they have the same functional group of atoms (e.g C=C alkene, C-OH alcohol or -COOH carboxylic acid)

    Members of a homologous series have similar physical properties such as appearance, melting/boiling points, solubility etc but show trends in them e.g steady increase in melting/boiling point with increase in carbon number or molecular mass

    The molecular formula represents a summary of all the atoms in the molecule

    The structural or displayed formula shows the full structure of the molecule with all the individual bonds and atoms shown (though there are different 'sub-styles' of varying detail, see below)

    What are alkanes?

    These are obtained directly from crude oil by fractional distillation

    They are saturated hydrocarbons and they form an homologous series called alkanes with a general formula CnH2n+2 Saturated hydrocarbons have no C=C double bonds, only carbon-carbon single bonds, and so has combined with the maximum number of hydrogen atoms

    i.e no more atoms can add to it

    Alkanes are the first homologous series

    Examples of alkanes are:

    The gases Methane CH4, ethane C2H6, propane C3H8, butane C4H10

    Liquids Pentane C5H12, hexane C6H14 C7H16 etc

    The Names of all alkanes end in ...ane


    Alkanes are the simplest homologous series of compounds and their names follow this pattern,

    CH4 - methane

    C2H6 - ethane

    C3H8 - propane

    C4H10 - butane

    C5H12 - pentane

    I.e they have a prefix (meth-, eth-, prop-, but-, etc), which depends on the number of carbon atoms in the molecule and a common suffix (-ane)

    The general chemical form la for an alkane is CnH2n+2

    Structural formulae

    As well as using a normal type of molecular formula to describe an organic molecule, they can be represented by drawing out their structure i.e by showing how the atoms are connected, or bonded to each other

    In order to do this a few rules have to be followed;

    (i) Carbon atoms must be bonded four times

    (iii) Hydrogen atoms must bond only once

    Name Molecular formula Structural formula


    Isomerism occurs when two or more compounds have the same chemical formula but have different structures, e.g for the molecular formula C4H10 there are two possibilities - one 'linear' and one with carbon chain 'branching’

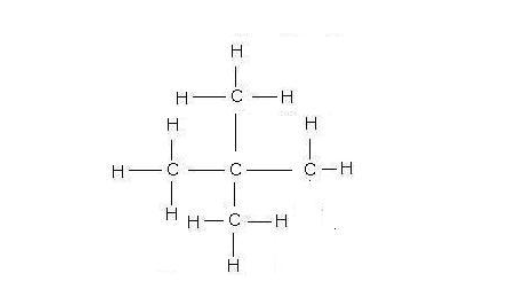

    Butane is linear while its branched isomer is methyl propane

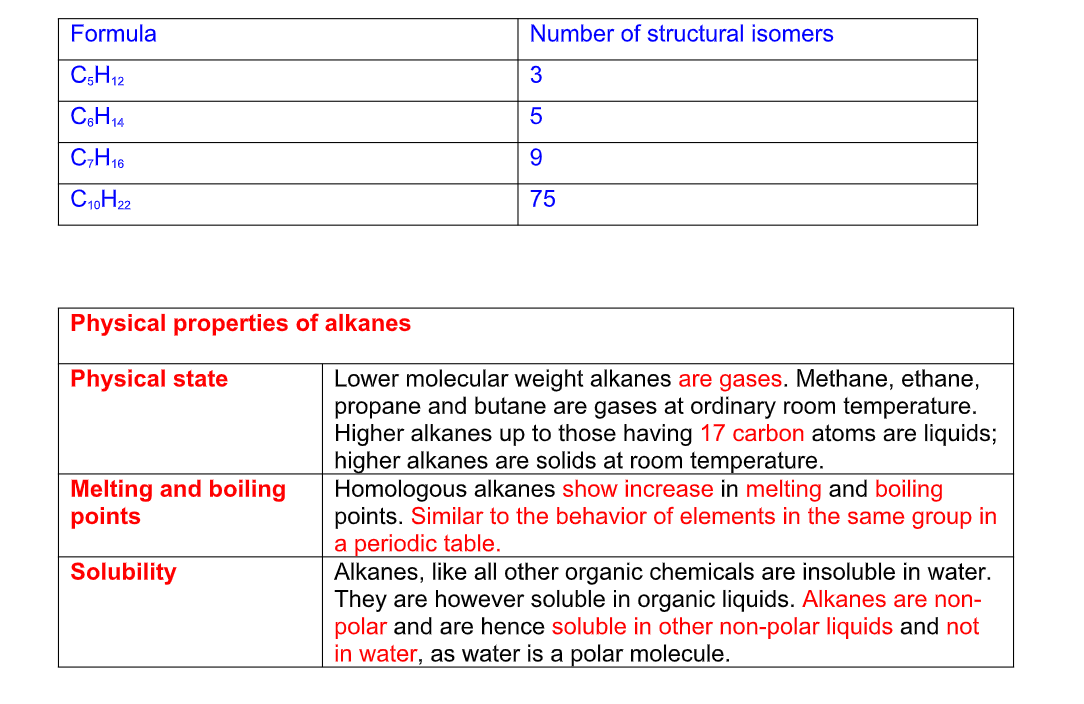

    As the number of carbon atoms increases, the number of possible isomers increases rapidly

    All families or homologous series exhibit isomerism

    Physical properties of alkanes

    Physical state Lower molecular weight alkanes are gases

    Methane, ethane, propane and butane are gases at ordinary room temperature

    Higher alkanes up to those having 17 carbon atoms are liquids; higher alkanes are solids at room temperature

    Melting and boiling points Homologous alkanes show increase in melting and boiling points

    Similar to the behavior of elements in the same group in a periodic table

    Solubility Alkanes, like all other organic chemicals are insoluble in water

    They are however soluble in organic liquids

    Alkanes are non-polar and are hence soluble in other non-polar liquids and not in water, as water is a polar molecule

    Chemical Reactions of Alkanes

    1.Substitutional reactions of alkanes

    Alkanes are most inert of all homologous series

    They are not very reactive unless burned

    But they will react with strong oxidising chemicals like chlorine when heated or subjected to u.v light

    A substitution reaction occurs and a chloro-alkane is formed e.g a hydrogen atom is swapped for a chlorine atom and the hydrogen combines with a chlorine atom forming hydrogen chloride

    This process is called halogenation

    The UV light causes the formation of free radical halogen atoms by providing enough energy for the bond between the two halogen atoms to break

    A halogen atom attacks the alkane, substituting itself for a hydrogen atom

    This substitution may occur many times in an alkane before the reaction is finished

    2. Combustion

    Alkanes, along with all other types of hydrocarbon, will burn in an excess of oxygen to give carbon dioxide and water only as the products,

    e.g CH4 (g) + 2O2(g) CO2(g) + 2H2O(g) in general,

    CnH2n+2(g) + (1.5n+0.5)O2(g) nCO2(g) + (n+1)H2O(g)

    If there is not enough oxygen present then instead of carbon dioxide, carbon monoxide, CO, is produced

    Carbon monoxide is particularly toxic and absorbed into blood, through respiration, very easily

    For domestic heating systems it is particularly important that enough air can get to the flame to avoid carbon monoxide being generated in the home

    Car engines also require a lot of air and there is a lot of research going on to make the internal combustion engine more efficient, and so put out less carbon monoxide

    3. Reactivity

    Alkanes are saturated hydrocarbons

    Molecules of saturated hydrocarbons contain only single bonds between all carbon atoms in the series

    Hence their reactivity with other chemicals is relatively low

    What are alkenes?

    Hydrocarbons, which contain two hydrogen atoms less than the corresponding alkanes, are called alkenes

    They have one double bond and are unsaturated carbon compounds

    Alkenes cannot be obtained directly from crude oil

    They can only be obtained by cracking of alkanes


    In industry the fractions obtained from the fractional distillation of crude oil are heated at high pressure in the presence of a catalyst to produce shorter chain alkanes and alkenes

    E.g C10H22 C5H12 + C5H10

    They are unsaturated hydrocarbons with a general formula CnH2n

    Unsaturated means the molecule has a C=C double bond to which atoms or groups can add after breaking the double bond

    Alkenes all have a C=C double bond in their structure and their names follow this pattern

    Their names end i.e ....ene

    C2H4 - ethene

    C3H6 - propene

    C4H8 - butene

    C5H10 - pentene

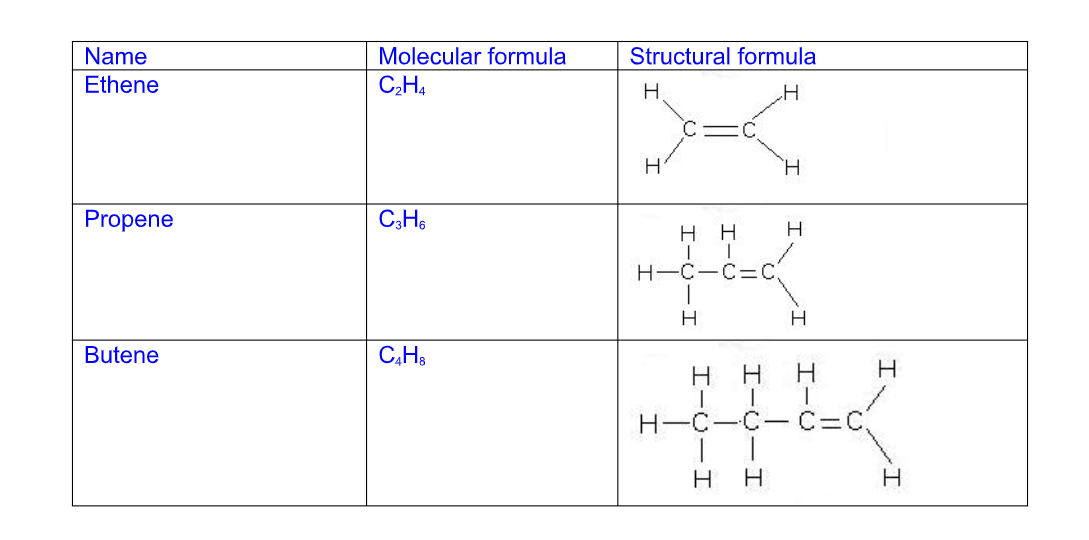

    The general chemical formula for an alkene is CnH2n

    The general chemical formula for an alkene is CnH2n

    (2) Addition reactions of alkenes :

    (i) Bromination

    The double bond of an alkene will undergo an addition reaction with aqueous bromine to give a dibromo compound

    The orange bromine water is decolourised in the process

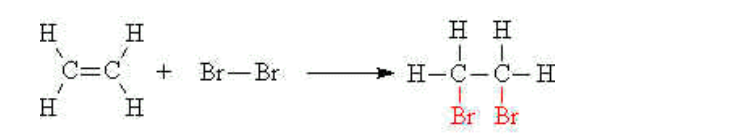

    E.g ethene reacts with bromine water to give 1,2-dibromoethane,

    (ii) Hydrogenation

    Alkenes may be turned into alkanes by reacting the alkene with hydrogen gas at a high temperature and high pressure

    A nickel catalyst is also needed to accomplish this addition reaction

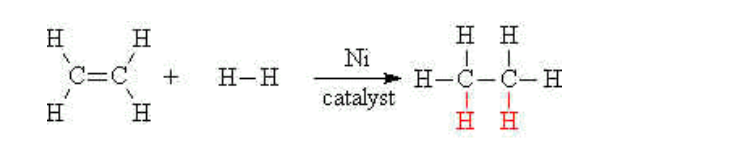

    E.g ethene reacts with hydrogen to give ethane,

    This reaction is also called saturation of the double bond

    In ethene the carbon atoms are said to be unsaturated

    In ethane the carbon atoms have the maximum number of hydrogen atoms bonded to them, and are said to be saturated

    (iii) Oxidation

    The carbon-carbon double bond may also be oxidised i.e have oxygen added to it

    This is accomplished by using acidified potassium manganate (VII) solution at room temperature and pressure. The purple manganate (VII) solution is decolourised during the reaction

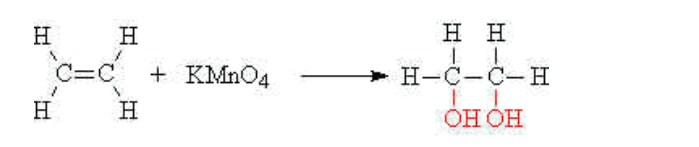

    E.g ethene reacts with acidified potassium manganate (VII)(aq) to give ethan-1,2-diol,

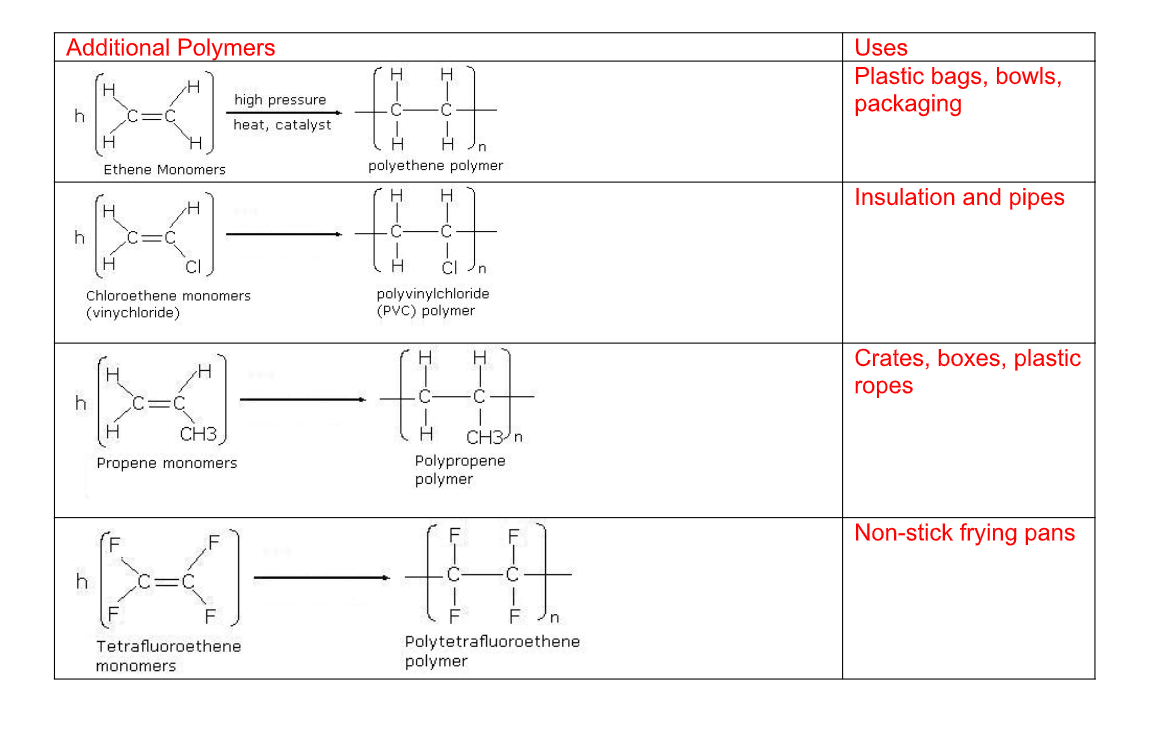

    (3) Addition polymerisation :

    All alkenes will react with free radical initiators to form polymers by a free radical addition reaction

    Some definitions

    monomer - a single unit e.g an alkene

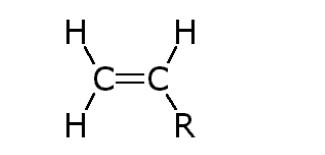

    The alkene monomer has the general formula:

    Where R is any group of atoms, e.g R=CH3 for propene

    The reaction progresses by the separate units joining up to form giant, long chains

    Polymer- a material produced from many separate single monomer units joined up together

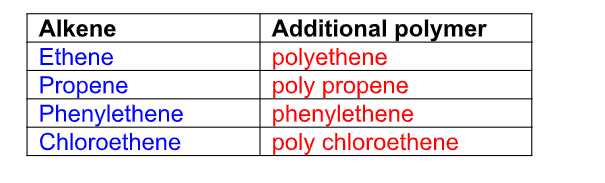

    An addition polymer is simply named after the monomer alkene that it is prepared from

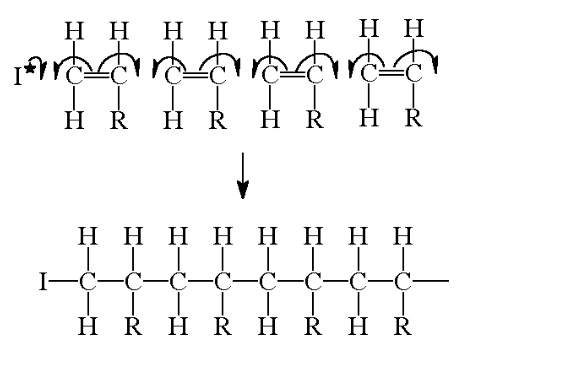

    The structure above shows just 4 separate monomer units joined together

    In a real polymer, however, there could be 1000's of units joined up to form the chains

    This would be extremely difficult to draw out and so the structure is often shortened to a repeat unit

    There are 3 stages to think about when drawing a repeat unit for a polymer

    1) Draw the structure of the desired monomer

    2) Change the double bond into a single bond and draw bonds going left and right from the carbon atoms

    3) Place large brackets around the structure and a subscript n and there is the repeat unit

    Laboratory preparation of ethene gas

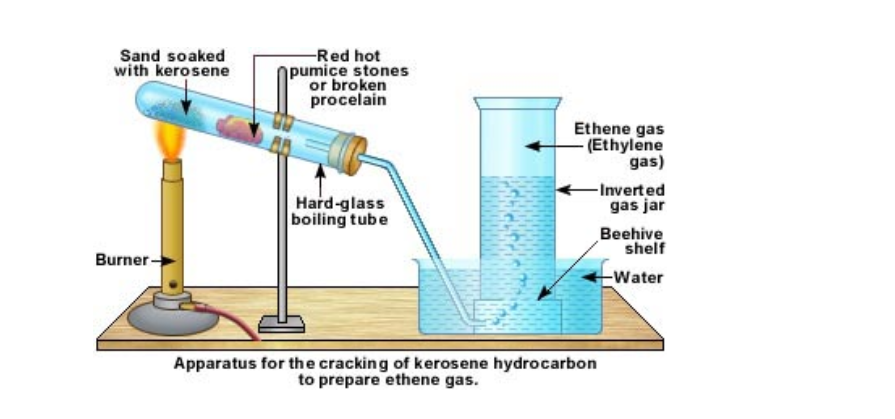

    In the lab ethene is prepared by cracking kerosene or candle wax

    Kerosene is poured over sand and this is kept at the bottom of a hard glass test tube

    A few pieces of pumice stone or porcelain is kept a little distance away

    The sand is slowly heated

    After a while the porcelain portion of the test tube is heated

    This is done alternately

    The heated kerosene first vaporizes and then cracks

    When the vapours pass over the hot porcelain, they crack again into smaller and smaller molecules

    The gases are then passed over water

    Ethene is collected by downward displacement of water

    It can be understood that this method for collecting ethene gas does not give pure ethene gas

    This is because from cracking, we get many types of molecules

    All those, which are lighter than water and insoluble in water, will be collected

    Ethene by dehydration of alcohols

    To obtain pure ethene gas, another method is followed

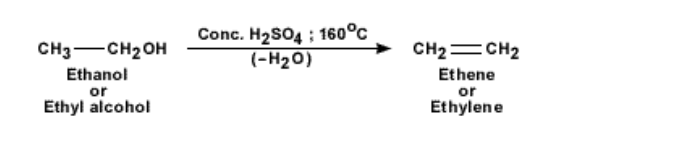

    This is from a chemical reaction with ethanol and concentrated sulphuric acid

    The temperature of the mixture of ethanol or ethyl alcohol and concentrated sulphuric acid is increased to 160°C

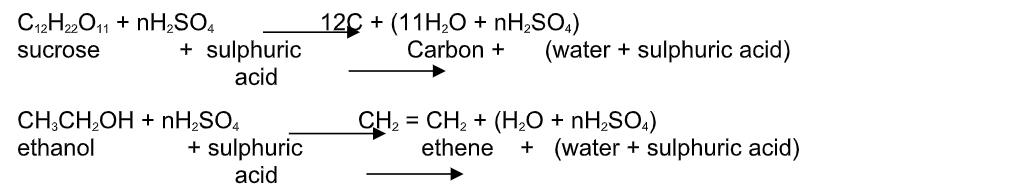

    The acid acts as a dehydrating agent and picks up a water molecule from the ethanol molecule, leaving the reaction product as ethene gas

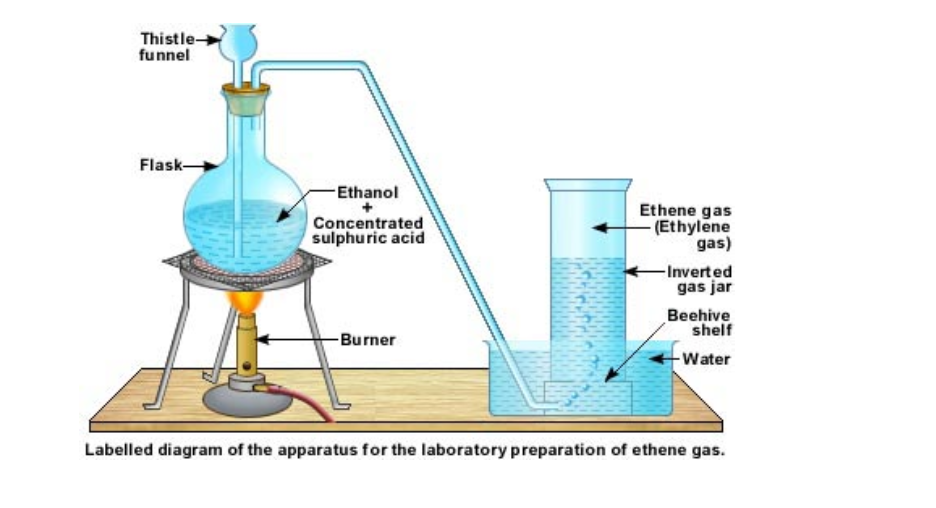

    The laboratory equipment to produce ethene gas is shown below

    About 20 to 25 ml of ethanol is taken in a round bottomed flask

    Concentrated sulphuric acid is added to it from a thistle funnel slowly

    Heat is supplied from a Bunsen burner and the temperature of the flask is raised to 160°C

    Ethene gas starts evolving and it can be collected over water by downward displacement of water

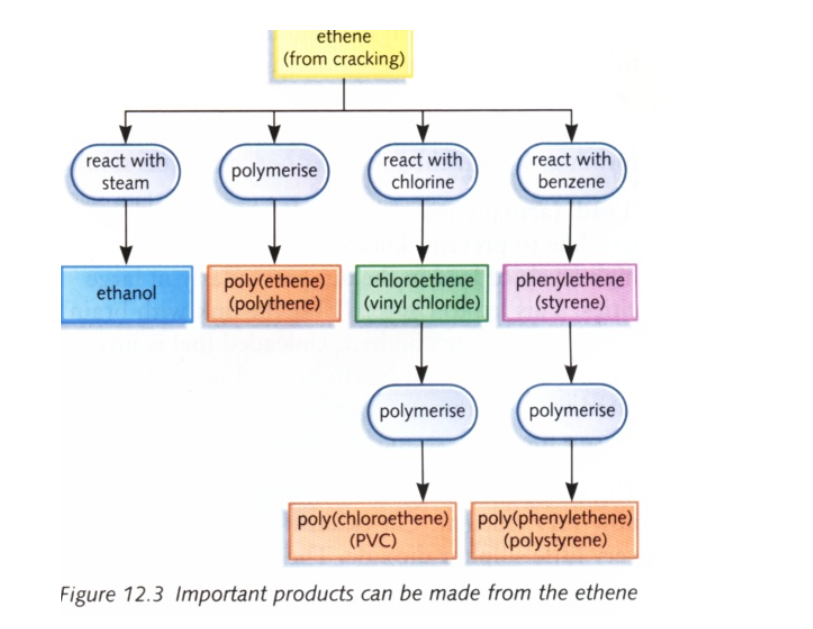

    Uses of ethene

  • Ethene is used for manufacturing organic compounds such as ethyl alcohol and ethylene glycol

    Ethylene glycol is used for making artificial fibbers like polyesters

  • Ethene is used for manufacture of plastics

    These plastics are made from polymerization of ethene into polythene

    Polythenes are used for making bags, electrical insulation, etc

    Ethene is used artificial ripening of fruits such as mangoes, bananas, etc

    What are Alkynes?

    Hydrocarbons that have two carbon atoms in a triple bond are called alkynes

    They are unsaturated bonds

    Their general formula is CnH2n-2 and their names are derived from the alkanes by changing the ending “ane’ of the alkane by “yne”, for example, ethyne, propyne, butyne, etc

    The simplest of alkynes has two carbon atoms in triple bond and is called ethyne

    The table below gives names of the first three alkynes

    Chemical properties of ethyne

    1. Combustion: Ethyne burns in air with a sooty flame

    It forms carbon dioxide and water and gives out heat

    The sooty flame is due to higher amount of carbon in ethyne than in methane

    All the carbon atoms cannot get oxidized while burning this makes the flame sooty

    But if ethyne is burnt with a proper control, for example, if the gas is made to pass through a small nozzle, then it gets ample air mixture to burn completely

    This type of complete combustion is used for acetylene lamps in industries

    Acetylene lamps produce very luminous non-sooty flame

    Ethyne combined well with oxygen can burn to give a flame whose temperature is 3000°C

    This oxy-acetylene flame is used for welding metals, where very high temperatures are required

    2. Reactivity: Alkynes are more reactive than the alkanes or alkenes due to the presence of unsaturated bonds

    Such a reaction is called addition reaction

    In an addition reaction, the alkynes will become an alkane

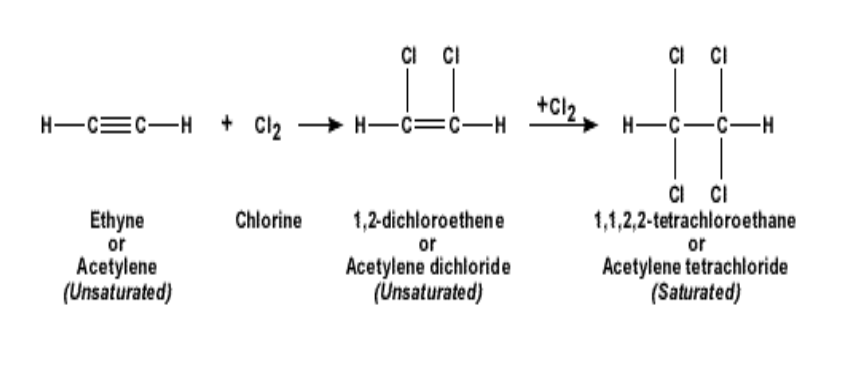

    For example if ethyne is reacted with chlorine, it becomes 1,1,2,2 tetra-chloro-ethane

    Similarly, addition reaction with bromine will give rise to 1,1,2,2, tetra-bromo-ethane

    Bromine water decolorizes on reaction with ethyne

    This is a prominent test for testing unsaturated nature of hydrocarbons

    When hydrogen is added to ethyne, and heated in the presence of nickel, it becomes ethene and then proceeds to become ethane

    The bonds become saturated

    This is known as the process of hydrogenation

    The addition of hydrogen to a double or triple bonded hydrocarbon leads to saturation of the bonds

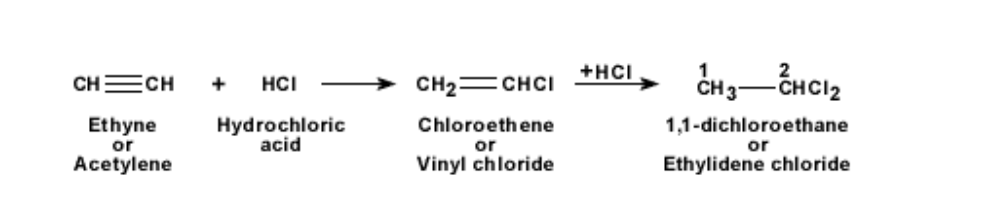

    When hydrochloric acid is added to ethyne, it becomes first chloro-ethene and then 1,1- dichloro-ethane

    The reaction is shown below

    Uses of ethyne

  • Ethyne burns in oxygen to give a very luminous light

    Hawkers use this as lamps

  • Ethyne is used for oxy-acetylene flame used for industrial welding

  • Ethyne is used for manufacture of synthetic plastics, synthetic rubbers, and synthetic fibers

  • Ethyne is also used making many industrially useful organic compounds like acetaldehyde, acetic acid, etc

    15.0.0 Nitrogen and Its Compounds Nitrogen

    Nitrogen is a colourless and odourless gas, N2, which is insoluble in water

    Although it does not support life, it is not poisonous

    It reacts only with difficulty with other elements, requiring either high temperatures, a catalyst, or both, in order to form compounds

    The most important of these are ammonia and ammonium salts, certain nitrogen oxides and nitric acid and its salts

    Composition of air

    The atmosphere is the gaseous envelope which surrounds the earth

    This gas, air, is a mixture consisting of about 78% nitrogen and 21 % oxygen

    Water vapour is present in variable amounts (up to 5%), and so the composition of unpolluted air is normally based on the dry gas mixture

    The figures below are percentages of the normal constituents by volume

    Nitrogen comprises about 78.1% of the earth's atmosphere and it is the source of the commercial and industrial gas

    Traces of other gases, notably He, Ne, Kr and Xe are also found, while near cities and industrial areas, all sorts of pollutants are also found

    Air is liquefied, and the oxygen (about 20.9%) boiled off at -183 ºC, leaving liquid nitrogen (which boils at -196 ºC) behind

    This process is known as fractional distillation

    Preparation of Nitrogen from Air

    Industrial preparation

    The chief source of free nitrogen is atmospheric air and nitrogen is usually prepared from it

    Air free from dust, water vapour and carbon dioxide is compressed in a compression chamber for liquefaction

    Firstly, the pressure on the air is increased to about 200 atmospheres

    It is then released through a spiral into a low-pressure area, where intense cooling of the air takes place

    The cold air goes upwards and further cools the spiral that brings in a fresh batch of purified air

    In this way the cold air in the spiral gets progressively cooled when released

    This procedure continues and the cooling becomes gradually more and more intense

    Ultimately, the cooling becomes so great that the temperature drops to nearly -200oC

    At this temperature the air condenses to form liquid air (Nitrogen becomes liquid at -196oC)

    Liquid air is then led into a chamber, and allowed to warm up, by absorbing heat from the atmosphere

    The boiling point of nitrogen is -196oC; when this temperature is reached, nitrogen starts boiling and the vapours (gas) is collected and packed

    The liquid left behind is mainly oxygen, which has a higher boiling point of 183oC

    Prepararion from Ammonia and Ammonium Compounds

    (i) By treating excess ammonia with chlorine, ammonium chloride and nitrogen are formed

    The products obtained are bubbled through water

    The vapours of ammonium chloride dissolve in the water while nitrogen is collected separately

    (ii) By passing ammonia over heated metallic oxides like copper oxide and lead oxide


    (iii) By burning ammonia in oxygen

    Ammonia burns in oxygen to yield water vapour and nitrogen (Fig.12.4)

    (v) By the action of heat on ammonium compounds: (ammonium dichromate)

    Ammonium dichromate is an orange coloured crystalline substance

    When heated it starts decomposing, with the evolution of heat

    Sparks can be seen inside the test tube and therefore further heating is not necessary

    The products of decomposition are, a green coloured solid of chromic oxide, water vapour and nitrogen gas (Fig.12.5)

    However, collecting nitrogen by this method is difficult

    As the reaction is accompanied by heat and light, it is quite violent

    Also the green coloured fluffy chromic oxide gets sprayed all over and thrown out of the test tube

    It is therefore difficult to control this reaction

    Laboratory Preparation of Nitrogen

    Method A

    Nitrogen can be prepared from the air as shown

    Air flows into the respirator and onto caustic soda which dissolves carbon dioxide gas

    It is then passed through a heated combustion tube containing heated copper turnings which remove oxygen

    Nitrogen is then collected over water

    Traces of noble gases present in air still remain in the final product

    Method B

    Nitrogen can also be obtained by heating a mixture of sodium nitrite and ammonium chloride as shown

    The gas collected by this method is purer than one in method A, even though it contains water vapour which could have been removed if the gas is passed through concentrated sulphuric acid before collection

    In the laboratory, nitrogen is prepared by heating a mixture of ammonium chloride and sodium nitrite and a small quantity of water

    If ammonium nitrite is heated by itself it decomposes to produce nitrogen gas

    However, this reaction is very fast and may prove to be explosive

    For safety, a mixture of ammonium chloride and sodium nitrite approximately in the ratio of 4:5 by mass, is heated mildly with a small quantity of water

    The presence of water prevents ammonium chloride form subliming when heated

    Initially, the two substances undergo double decomposition to form sodium chloride and ammonium nitrite

    The ammonium nitrite so formed then decomposes to form nitrogen gas and water vapor

    Nitrogen gas is collected by downward displacement of water

    Uses of Nitrogen

    (i) Nitrogen is used in high temperature thermometers where mercury cannot be used

    This is because mercury boils at 356.7oC and hence cannot be used in such thermometers

    A volume of nitrogen is enclosed in a vessel and introduced into the region of high temperature

    Depending upon the temperature, expansion of the nitrogen volume takes place

    Then applying the gas equation, the temperature is calculated

    (ii) Nitrogen mixed with argon is used in electric bulbs to provide an inert atmosphere

    It helps in prevention of oxidation and evaporation of the filament of the bulb, giving it a longer life

    (iii) It is used to produce a blanketing atmosphere during processing of food stuff, to avoid oxidation of the food

    It is also used when food is being canned, so that microorganisms do not grow

    (iv) It is used in metal working operations to control furnace atmosphere and in metallurgy to prevent oxidation of red-hot metals

    (v) Nitrogen in the air helps as a diluting agent and makes combustion and respiration less rapid

    (vi) It is used by the chemical, petroleum, and paint industries to provide inactive atmosphere to prevent fires or explosions

    (vii) It is used in the industrial preparation of ammonia, which is converted into ammonium salts, nitric acid, urea, calcium cyanamide fertilizers etc

    (viii) Liquid nitrogen is used as a refrigerant for food, for storage of blood, cornea etc in hospitals

    Meat, fish etc

    , can be frozen in seconds by a blast of liquid nitrogen, which can provide temperatures below -196oC

    (ix) Liquid nitrogen is used in scientific research especially in the field of superconductors

    (x) Nitrogen is essential for synthesis of proteins in plants

    Proteins are essential for synthesis of protoplasm, without which life would not exist

    (xi) Liquid nitrogen is used in oil fields, to extinguish oil fires


    Physical Properties

    Nitrous oxide is a linear molecule

    It has a boiling point of -88 ºC, and a melting point of -102 ºC

    It is colourless and has a faintly sweet smell

    It is used as an anaesthetic, popularly called laughing gas

    Nitric oxide:

    Nitric oxide, NO, may be prepared by the action of dilute nitric acid on copper:

    3Cu + 8HNO,3 3Cu (NO3 )2 +2NO + 4H2 O It is a colourless gas, insoluble in water, which reacts with oxygen to form the brown gas nitrogen dioxide, NO3: O3 NO + O3 2NO3

    Nitrogen dioxide:

    Nitrogen dioxide, NO2 is a planar molecule

    3 Cu (NO3)2+ 2H2O + 2NO2 or by the decomposition of heavy-metal nitrates, such as lead nitrate: 2Pb(NO3)2 2PbO + 4NO2 + O2 At temperatures below 100 ºC, it forms dinitrogen tetroxide, N2O4: 2NO2 N2O4 (REVERSIBLE ARROW)

    Nitrogen dioxide will support combustion, as shown by the fact that a glowing splint of wood will ignite in this gas


    Ammonia is a colorless gas

    It has a characteristic pungent odor

    It is bitter to taste

    Its vapor density is 8.5 Hence it is lighter than air (vapor density of air = 14.4)

    When cooled under pressure ammonia condenses to a colorless liquid, which boils at -33.4oC

    When further cooled, it freezes to a white crystalline snow-like solid, which melts at -77.7oC

    Ammonia is one of the most soluble gases in water At 0oC and 760 mm of Hg pressure one volume of water can dissolve nearly 1200 volumes of ammonia

    This high solubility of ammonia can be demonstrated by the fountain experiment

    Preparation of Ammonia

    By Heating any Ammonium Salt with an Alkali

    In the laboratory, ammonia is usually prepared by heating a mixture of ammonium chloride and slaked lime in the ratio of 2 : 3 by mass

    The arrangement of the apparatus is shown in the figure 6.2 As ammonia is lighter than air, it is collected by the downward displacement of air

    Drying of Ammonia

    The drying agent used for ammonia is quick lime

    Other drying agents such as concentrated sulphuric acid or phosphorus (V) oxide or fused calcium chloride cannot dry an alkaline gas like ammonia

    Sulphuric acid and phosphorus (V) oxide are both acidic

    They react with ammonia, forming their respective ammonium salt

    Industrial Preparation of Ammonia

    Haber's Process

    Ammonia is manufactured by Haber's process using nitrogen and hydrogen (Fig.6.4)

    Reactants: Nitrogen gas -1 volume and hydrogen gas -3 volumes


    The reaction in Haber’s process is exothermic and so external heating is not required once the reaction starts

    Lowering the temperature to 450o - 500oC favours the reaction, but lowering the temperature below 450o - 500oC brings down the yield

    Nitrogen is obtained in large scale from air

    Air free from dust and carbon dioxide is cooled under high pressure and low temperature to about 200oC and then allowed to warm

    As nitrogen has lower boiling point (-169oC) as compared to oxygen (-183oC) it turns to gas leaving oxygen in liquid state

    Nitrogen can also be obtained by heating a ammonium nitrite (in small amounts)

    Chemical Properties of Ammonia


    Ammonia is neither combustible in air nor does it support combustion

    However it burns in oxygen with a greenish-yellowish flame producing water and nitrogen

    a) Burning of Ammonia in Oxygen


    Set the apparatus as shown in figure 6.7

    Firstly, when ammonia is passed through the longer tube and is made to ignite, it does not catch fire

    Then oxygen is sent through the shorter tube

    Now when ammonia is ignited, it catches fire and the following reaction takes place:

    Although the products formed in the above reaction are insignificant, it is an extremely important reaction from viewpoint of industry

    This is because in the presence of platinum, catalytic oxidation of ammonia can take place to give various important products

    b) Catalytic Oxidation of Ammonia

    The platinum coil is heated at 800oC in a combustion tube till it becomes white hot

    Then ammonia and oxygen are passed through the tube

    Under these conditions and in the presence of the catalyst, ammonia combines with free oxygen or oxygen of the air, to form nitric oxide and water vapour

    The importance of the above reactions lies in the production of nitric acid, which is a very important industrial product

    Basic Nature

    Absolutely dry ammonia or pure liquefied ammonia is neutral

    In the presence of water however, it forms ammonium hydroxide, which yields hydroxyl ions

    As a result of this reaction, it exhibits basic nature

    It is a weak base and is perhaps the only gas that is alkaline in nature

    Ammonia is an alkaline gas

    When damp red litmus paper is introduced into the gas, it turns blue due to the presence of hydroxide ions as shown in the equation above

    Test for ammonia gas

    Reactions of Aqueous Ammonia (NH4OH) With Cations

    Ammonia as a reducing agent

    Heated dry ammonia gas can reduce copper (II) oxide to pure copper

    This reaction can be used to prepare nitrogen

    The gas passes through a U- tube surrounded by cold water which contains some melting ice

    This helps to condense the vapour produced to liquid water

    Nitrogen is finally collected by downward displacement of water

    Fountain experiment

    Fill a clean dry round-bottomed flask with dry ammonia, close it by a one holed stopper, through which a long jet tube is introduced

    The free end of the tube is dipped into a trough of water as shown

    Add two or three drops of an acid and a small quantity of phenolphthalein to the water in the trough

    This water is colorless

    Pour a small quantity of spirit or ether on a layer of cotton and place it over the inverted flask

    Due to the cooling effect produced by the process of evaporation of spirit or ether, the ammonia gas contracts a little and as a result, small quantity of the water gets sucked up

    As soon as this water enters the flask, the ammonia dissolves in it, forming a partial vacuum

    As a result of it, water rushes in and comes out of the tube as a jet of fountain

    The color of the water turns deep pink

    The properties of ammonia

  • Colourless gas
  • Distinctive pungent smell
  • Less dense than air
  • Very soluble in water to give an alkaline solution

    Dissolving Ammonia in Water

    Due to its high solubility, ammonia cannot be passed through water like many other gases

    Ammonia is dissolved in water, as shown below

    This arrangement is called funnel arrangement and its principle is the same as that discussed for HCl gas

    The funnel arrangement prevents back suction of water, which can cause damage to the apparatus used

    It provides larger surface area for dissolution of ammonia

    A very strong solution of ammonia in water is called liquor ammonia

    Ammonia can be obtained from it by boiling

    Action with Acids

    Ammonia reacts with the acids to form their respective ammonium salts

    The ammonium salts appear as white fumes

    Ammonia gas + acid -> ammonium salt

    Uses of Ammonia

    Following are the chief uses of ammonia:

    1) Ammonia is used in the industrial preparation of nitric acid by Ostwald's process

    2) Fertilisers, such as ammonium sulphate, ammonium nitrate, ammonium phosphate, urea etc

    are manufactured with the help of ammonia

    3) It is used in the manufacture of other ammonium salts, such as ammonium chloride, ammonium carbonate, ammonium nitrite etc

    4) It finds use in the manufacture of nitrogen compounds such as sodium cynamide, plastics, rayon, nylon, dyes etc

    5) It is used in the manufacture of sodium carbonate by Solvay's process

    (Ammonia and carbon dioxide are treated with aqueous sodium chloride, crystals of sodium hydrogen carbonate are formed

    They are heated to yield sodium carbonate)

    6) Ammonia acts as refrigerant in ice plants

    Evaporation of a liquid needs heat energy

    About 17g of liquid ammonia absorb 5700 calories of heat from the surrounding water

    This cools the water and ultimately freezes it to ice

    7) Ammonia is used to transport hydrogen

    Hydrogen is dangerous to transport, as it is highly combustible

    So it is converted to ammonia, liquefied, transported and then catalytically treated to obtain hydrogen

    8) Many ammonium salts are used in medicines

    Inhaling the fumes produced by rubbing ammonium carbonate in the hands can revive people who have fainted

    9) It is used as a cleansing agent

    Ammonia solution emulsifies fats, grease etc

    so it can be used to clean oils, fats, body grease etc from clothes

    It is also used to clean glassware, porcelain, floors etc

    10) It is used as laboratory reagent

    Nitric acid:

    Nitric acid is produced industrially from ammonia by the Oswald process

    It is a strong acid, converting bases to salts called nitrates: CuO + 2HNO3 Cu(NOO3)2 + HO2O

    Copper(11) nitrate

    NaOH + HNOO3 NaNOO3 + HO2O

    Sodium nitrate

    Nitric acid is also a strong oxidizing agent and may be reduced to nitric oxide or nitrogen dioxide:

    Cu + 4HNOO3 Cu (NOO3)O2 + 2H2O + 2NO2 3Cu + 8HNOO3 3Cu (NOO3)O2 + 2NO +4HO2O Pure nitric acid slowly decomposes to form water, nitrogen dioxide and oxygen

    This causes the nitric acid to become yellow

    The process is accelerated on heating: 4HNOO3 2H2O + 4NOO2 + OO3

    Oswald Process

    Nitric acid is prepared in large scale from ammonia and air (Fig.6.14)


    Pure dry ammonia (1 volume) and air (10 volumes)


    1) 1st step - Catalytic oxidation of ammonia to form nitric oxide

    2) 2nd step - Oxidation of nitric oxide to nitrogen dioxide

    3) 3rd step - Absorption of nitrogen dioxide in water to give nitric acid


    Platinum (for oxidation of NH3)


    700o - 800oC

    Reactions of Nitric Acid

    Cuprous Oxide, Cu2O reacts with dilute Nitric Acid, HNO3, in the cold to form a solution of Cupric Nitrate, Cu (NO

    )2, and Copper, Cu

    Cu2O + 2 HNO3 Cu (NO3)2 + Cu + H2O Cuprous Oxide, Cu2O reacts with concentrated Nitric Acid, HNO3, or with dilute Nitric Acid, HNO3, on heating, when the Cuprous Oxide, Cu2O dissolves with evolution of Nitric Oxide, NO

    3Cu2O + 14HNO3 6Cu (NO3)2 + 2NO + 7H2O Dinitrogen Pent oxide, N2O5, is best prepared by dehydrating concentrated Nitric Acid, HNO3, by Phosphorus Pent oxide, P2O5

    2 HNO3 + P2O5 N2O5 + 2 HPO3 Nitric Oxide, NO is prepared by the action of Copper, Cu, or Mercury, Hg, on dilute Nitric Acid, HNO3, and was called Nitrous Air

    3 Cu + 8 HNO3 3 Cu (NO3)2 + 2 NO + 4 H2O

    Nitrogen dioxide, NO2, is a mixed acid anhydride and reacts with water to give a mixture of nitrous and nitric acids

    2 NO2 + H2 HNO2 + HNO3

    If the solution is heated the nitrous acid decomposes to give nitric acid and nitric oxide

    3 HNO2 HNO3 + 2 NO + H2O

    Sulphur Dioxide, SO2, and Nitrogen Oxides, NOx, are toxic acidic gases, which readily react with the Water, H2O in the atmosphere to form a mixture of Sulphuric Acid, H2SO4, Nitric Acid, HNO3, and Nitrous Acid, HNO2,

    The dilute solutions of these acids which result give rain water a far greater acidity than normal, and is known as Acid Rain

    Nitrates are the salts of nitric acid, and are strong oxidising agents

    The Oswald Process is the tree stage process by which Nitric Acid, HNO3, is manufactured

    Firstly, Ammonia, NH3, is oxidised, at high temperature (900 0C

    ) over a platinum-rhodium catalyst, to form Nitrogen Monoxide, NO

    4 NH3 (g) + 5O2 (g) 4 NO (g) + 6H2O

    The Nitrogen Monoxide, NO, cools and reacts with oxygen, O2, to produce Nitrogen Dioxide, NO2

    2 NO (g) + O2 2 NO2 (g)

    Finally, the Nitrogen Dioxide, NO2 reacts with Water and Oxygen, O2, oxygen to produce Nitric Acid,

    4 NO2 (g) + 2 H2O (l) + O2 4 HNO3 (l)

    Cu2O + 2 HNO3 Cu (NO3)2 + Cu + H2O Cuprous Oxide, Cu2O reacts with concentrated Nitric Acid, HNO3, or with dilute Nitric Acid, HNO3, on heating, when the Cuprous Oxide, Cu2O dissolves with evolution of Nitric Oxide, NO

    3 Cu2O + 14 HNO3 6 Cu (NO3)2 + 2 NO + 7 H2O


    Salts of metals with nitric acid are called nitrates

    Most nitrates are soluble in water

    The nitrates of alkali metals form nitrites when strongly heated:

    2NaNO3 2NaNO2 + O2

    The nitrate of other metals decompose on heating to form nitrogen dioxide and the metal oxide, or, in the case of some metals such as silver and gold, the pure metal, nitrogen dioxide, and oxygen:

    2Pb(NO3) 2PbO + 4NO2 + O2 2AgNO3 2Ag + 2NO2 + O2

    Summary of Action of Heat on Nitrates

    Generally compounds of very reactive metals such as sodium and potassium are more stable to heat than the metals lower down in the reactivity series of metals

    Nitrogen pollution ??

    16.0.0 Sulphur and Its Compounds


    It takes the form of a yellow solid naturally and can be found in this state near volcanoes

    Sulphur is also present in a number of metal ores, for example zinc blende (zinc sulphide, ZnS )

    Sulphur has chemical symbol S

    It has 16 protons and 16 neutrons

    An atom of S is represented as 3216S

    Sulphur is a non-metal and exists in the earth’s crust either as pure sulphur or as a metal-sulphide

    Since S has 16 protons, it also has 16 electrons; the electronic configuration of S is 2, 8, 6

    S is placed in Group VI A of the periodic table, just after phosphorus, and below oxygen

    The reaction of S is similar to oxygen

    Sulphur is found as a free element or in combined state in nature

    Free sulphur is found in at a large depth below the earth’s surface

    Metal sulphides such as Zn, Fe, Ag, Ca, Pb, Cu are found in abundant quantities

    Mineral ores containing S are:

  • Copper pyrites : CuFeS2

  • Galena : PbS
  • Zinc blende : ZnS
  • Iron pyrite : FeS2

    Sulphur is found as H2 S gas in petroleum gas, coal gas

    H2S is the familiar pungent smell of onions

    It is present in hair, eggs, many proteins and wool

    Extraction of pure sulphur : Frasch process

    Since sulphur in free state is found at depths of more than 150 to 300 meters below the earth’s surface, the method of extraction of sulphur differs from other metal or non-metal extractions

    Sulphur’s relatively low melting point (115°C) is utilized in this process

    This is known as the Frasch process

    Here compressed super heated water (at 170°C) is pressed into a pipe which reaches up to the sulphur deposits

    The sulphur here melts

    Introducing hot compressed air through another pipe brings it up

    The molten sulphur and water mixture is forced up and is collected in a settling tank

    The sulphur is cooled and water is evaporated

    The sulphur extracted in this way is more than 99% pure

    The sulphur obtained by Frasch process is a yellow and brittle solid or powder

    Physical properties of sulphur : Since S has 6 electrons in its outermost shell, it needs 2 more electrons to complete its shell

    But S combines with 7 other atoms to make a sulphur molecule that has a total of 8 sulphur atoms

    Thus each S atom shares 2 electrons with its neighboring atom

    The bonds are covalent in nature

    A molecule of sulphur is represented as S8

    It is a ringed molecule

    The structure is shown below

    These large molecules each have many electrons , so the Van der Waals forces are quite strong and the melting point is quite high (119oC)

    There are two ways of packing the sulphur rings, so solid sulphur exists in two crystalline forms, called rhombic and monoclinic

    Allotropes of sulphur

    Sulphur is a yellow crystalline solid

    It is tasteless and odourless

    The melting point of S is 115°C

    Sulphur is an insulator and is a poor conductor of heat and electricity

    S is insoluble in water but is soluble in CS2

    Sulphur forms covalent bonds and shows allotropic forms

    The allotropes have different crystalline shapes such as rhombic and monoclinic

    There is another allotrope which has no shape and is called plastic sulphur

    Vapours of sulphur are pungent and although not poisonous, they can cause health problems to humans

    Chemical properties of sulphur :

    1. Valence : Since S has 6 electrons in its outer shell

    Hence S does not give off its electrons easily

    It readily forms covalent bonds to complete its outer shell

    It shows variable valence of 2 or 6 S is quite a reactive element and forms oxides, chlorides and sulphides readily

    2. Action of oxygen: Sulphur reacts with oxygen and burns with a blue flame

    It forms sulphur dioxide which is a colourless gas having a pungent smell

    Sulphur dioxide forms an acidic solution, sulphurous acid, when dissolved in water i.e it turns damp blue litmus paper red

    It will also react with oxidising agents to produce sulphate ions e.g Orange acidified dichromate (VI) ions are turned green and purple acidified manganese (VII) ions are turned colourless

    3. S reacts with other non-metals also

    In all cases sulphur has to be heated or boiled for the reaction to take place

    4. Reaction with metals : Heated S reacts with metals like Fe, Cu, Zn, Sb directly to give metal-sulphide

    A mixture of powdered zinc and sulphur, when heated up to a high temperature, will react together to produce an extremely exothermic change

    A few reactions are shown below

    5. Reaction with acids : S is oxidized by strong concentrated oxidizing acids such as sulphuric acid and nitric acid

    In both the reactions S acts as a reducing agent

    Effect of heat on sulphur:

    A sulphur molecule consists of 8 atoms in a ring form

    When heated, S melts at 115°C and a pale yellow liquid is formed

    The S8 ringed molecules are connected to other molecules in a long chain

    On heating, the long chain breaks up

    The individual molecules can slip over each other when melted

    On further heating, the liquid becomes dark brown and viscous

    When the temperature rises beyond 160°C, the intra-molecular bonds break

    Sulphur boils at 444°C

    At this temperature the large molecule breaks up into pieces of S2 molecule

    This molecule is pale yellowish-brown in colour

    The vapours of S contains S2 molecules

    Vulcanization of rubber :

    Natural rubber is a soft and sticky solid

    Rubber is a long chain polymer made out of isoprene (2 – methyl butadiene) monomer

    The long molecule forms a coil like structure

    The unique property of rubber is that it is elastic

    When rubber is stretched, the molecular bonds can be extended out

    When released, the molecules coil back to their original shape

    Natural rubber looses its rubber-like properties at temperatures above 60°C

    Also its wear resistance and tensile strengths are low

    The process of vulcanization can improve the quality of rubber

    Raw rubber is heated with sulphur during vulcanization

    This makes the rubber hard, more elastic and strong

    During the process of vulcanization, the sulphur atoms attach themselves to extra loose bonds in the rubber molecule and also cross-link the molecules

    The cross-linking locks the molecules in place and prevents slipping

    Thus making the vulcanized rubber more strong

    Vulcanized rubber is non-sticky and has higher elasticity

    It does not loose its properties easily and can be used in a temperature range of – 40°C to 100°C

    Uses of sulphur :

  • S is used to make H2SO4 acid, which is used in the manufacture of many compounds such as detergents, plastics, explosives, etc

  • S is used for making CS2 molecule, gun powder, matches etc

  • S is used for manufacture of fire works

  • S is used in the rubber industry for vulcanization of rubber

  • S is used for making germicides, fungicides

  • S is used in many medicines

  • S is used in photographic development (sodium thiosulphate or hypo)

  • S is used for making bleaching agents

  • S is used in making artificial hair colours or dyes

    The Properties Of Sulphur:

  • Non-metallic yellow solid at room temperature
  • Brittle
  • Insoluble in water
  • Soluble in organic solvents, for example methylbenzene
  • Non-conductor of electricity whether solid, molten of dissolved

  • Relatively low melting point and boiling point

    Sulphur Dioxide

    Moist sulphur dioxide (or sulphurous acid) is a reducing agent

    This fact is used as a test for the detection of sulphur dioxide

    1. There is a colour change from purple (pink in dilute solution) to colourless on the addition of the gas to a solution of potassium manganate (VII) (permanganate) 2MnO4- + 5SO

  • + 2H2O 2Mn2+ + 5SO42- + 4H+ 2

    There is a colour change from orange to blue on adding the gas to a solution of potassium dichromate (VI)

    Cr2O72- + 3SO2 +2H+ 2Cr3+ + 3SO42- + H2O Sulphurous acid and Sulphites Sulphur dioxide dissolves in water forming sulphuric (IV) acid (sulphurous acid)

    SO2 (aq) + H2O (l) H2SO3 (aq) This is a weak dibasic acid and ionises producing hydrogen ions and sulphite SO32- ions

    H2SO3 2H+ + SO32-

    1. Sulphites give sulphur dioxide on heating with dilute acids

    Na2SO3+ 2HCl NaCl + SO2 + H2O

    2. With barium chloride they give a white precipitate of barium sulphite which is soluble in dilute hydrochloric acid

    Ba2+ (aq) + SO32- (aq) BaSO3 (s) (White precipitate) BaSO3 (s) + 2HCl BaCl2 + SO2 (g) + H2O This reaction is used as a test for sulphite ions in solution

    Sulphur Dioxide

    Sulphur dioxide is a colourless gas, about 2.5 times as heavy as air, with a suffocating smell, faint sweetish odour

    Occurrence Sulphur dioxide occurs in volcanic gases and thus traces of sulphur dioxide are present in the atmosphere

    Other sources of sulphur dioxide are the combustion of the iron pyrites which are contained in coal

    Sulphur dioxide also results from various metallurgical and chemical processes

    Preparation of Sulphur Dioxide

    Sulphur dioxide is prepared by burning sulphur in oxygen or air

    S + O2 SO2

    Sulphur dioxide is usually made in the laboratory by heating concentrated sulphuric acid with copper turnings

    Cu + 2 H2SO4 CuSO4 + SO2 + 2 H2O

    Sulphur dioxide is released by the action of acids on sulphites or acid sulphites (e.g by dropping concentrated sulphuric acid into a concentrated solution of sodium hydrogen sulphite)

    Sulphur dioxide is a colourless liquid or pungent gas, which is the product of the combustion of sulphur on air

    Its melting point is -72.7 0C, its boiling point is -100C and its relative density is 1.43

    Sulphur Dioxide is an acidic oxide which reacts with water to give sulphurous acid

    SO2 + H2O H2SO3 Sulphur dioxide is a good reducing and oxidising agent


    Uses of Sulphur Dioxide

    a). Sulphur dioxide is a reducing agent and is used for bleaching and as a fumigant and food preservative

    b). Large quantities of sulphur dioxide are used in the contact process for the manufacture of sulphuric acid

    c). Sulphur dioxide is used in bleaching wool or straw, and as a disinfectant

    d). Liquid sulphur dioxide has been used in purifying petroleum products

    e). It is used as a bleaching agent

    The Contact Process

    This page describes the Contact Process for the manufacture of sulphuric acid, and then goes on to explain the reasons for the conditions used in the process

    It looks at the effect of proportions, temperature, pressure and catalyst on the composition of the equilibrium mixture, the rate of the reaction and the economics of the process

    A brief summary of the Contact Process

    The Contact Process:

  • Makes sulphur dioxide;
  • Converts the sulphur dioxide into sulphur trioxide (the reversible reaction at the heart of the process);
  • Converts the sulphur trioxide into concentrated sulphuric acid

    Making the sulphur dioxide

    This can either be made by burning sulphur in an excess of air:

    or by heating sulphide ores like pyrite in an excess of air:

    In either case, an excess of air is used so that the sulphur dioxide produced is already mixed with oxygen for the next stage

    Converting the sulphur dioxide into sulphur trioxide

    This is a reversible reaction, and the formation of the sulphur trioxide is exothermic

    A flow scheme for this part of the process looks like this:

    Converting the sulphur trioxide into sulphuric acid This can't be done by simply adding water to the sulphur trioxide - the reaction is so uncontrollable that it creates a fog of sulphuric acid

    Instead, the sulphur trioxide is first dissolved in concentrated sulphuric acid:

    The product is known as fuming sulphuric acid or oleum

    This can then be reacted safely with water to produce concentrated sulphuric acid - twice as much as you originally used to make the fuming sulphuric acid


    Explaining the conditions

    The proportions of sulphur dioxide and oxygen

    The mixture of sulphur dioxide and oxygen going into the reactor is in equal proportions by volume

    Avogadro's Law says that equal volumes of gases at the same temperature and pressure contain equal numbers of molecules

    That means that the gases are going into the reactor in the ratio of 1 molecule of sulphur dioxide to 1 of oxygen

    That is an excess of oxygen relative to the proportions demanded by the equation

    According to Le Chatelier's Principle, Increasing the concentration of oxygen in the mixture causes the position of equilibrium to shift towards the right

    Since the oxygen comes from the air, this is a very cheap way of increasing the conversion of sulphur dioxide into sulphur trioxide

    Why not use an even higher proportion of oxygen? This is easy to see if you take an extreme case

    Suppose you have a million molecules of oxygen to every molecule of sulphur dioxide

    The equilibrium is going to be tipped very strongly towards sulphur trioxide - virtually every molecule of sulphur dioxide will be converted into sulphur trioxide

    Great! But you aren't going to produce much sulphur trioxide every day

    The vast majority of what you are passing over the catalyst is oxygen which has nothing to react with

    By increasing the proportion of oxygen you can increase the percentage of the sulphur dioxide converted, but at the same time decrease the total amount of sulphur trioxide made each day

    The 1: 1 mixture turns out to give you the best possible overall yield of sulphur trioxide

    The temperature

    Equilibrium considerations

    You need to shift the position of the equilibrium as far as possible to the right in order to produce the maximum possible amount of sulphur trioxide in the equilibrium mixture

    The forward reaction (the production of sulphur trioxide) is exothermic

    According to Le Chatelier's Principle, this will be favoured if you lower the temperature

    The system will respond by moving the position of equilibrium to counteract this - in other words by producing more heat

    In order to get as much sulphur trioxide as possible in the equilibrium mixture, you need as low a temperature as possible

    However, 400 - 450°C isn't a low temperature!

    Rate considerations

    The lower the temperature you use, the slower the reaction becomes

    A manufacturer is trying to produce as much sulphur trioxide as possible per day

    It makes no sense to try to achieve an equilibrium mixture which contains a very high proportion of sulphur trioxide if it takes several years for the reaction to reach that equilibrium

    You need the gases to reach equilibrium within the very short time that they will be in contact with the catalyst in the reactor

    The compromise

    400 - 450°C is a compromise temperature producing a fairly high proportion of sulphur trioxide in the equilibrium mixture, but in a very short time

    The pressure

    Equilibrium considerations

    Notice that there are 3 molecules on the left-hand side of the equation, but only 2 on the right

    According to Le Chatelier's Principle, if you increase the pressure the system will respond by favouring the reaction which produces fewer molecules

    That will cause the pressure to fall again

    In order to get as much sulphur trioxide as possible in the equilibrium mixture, you need as high a pressure as possible

    High pressures also increase the rate of the reaction

    However, the reaction is done at pressures close to atmospheric pressure!

    Economic considerations

    Even at these relatively low pressures, there is a 99

    5% conversion of sulphur dioxide into sulphur trioxide

    The very small improvement that you could achieve by increasing the pressure isn't worth the expense of producing those high pressures

    The catalyst

    Equilibrium considerations

    The catalyst has no effect whatsoever on the position of the equilibrium

    Adding a catalyst doesn't produce any greater percentage of sulphur trioxide in the equilibrium mixture

    Its only function is to speed up the reaction

    Rate considerations

    In the absence of a catalyst the reaction is so slow that virtually no reaction happens in any sensible time

    The catalyst ensures that the reaction is fast enough for a dynamic equilibrium to be set up within the very short time that the gases are actually in the reactor

    Properties of Sulphuric Acid

    Sulphuric acid is a dense, oily liquid once known as oil of vitriol

    Pure sulphuric acid is almost twice as dense as water (1.98 g cm-2)

    As water is added the density drops

    Car batteries contain concentrated sulfuric acid

    As the battery is discharged, the concentration of the acid falls

    By measuring the density of the acid the driver can check whether the battery is flat or not

    Action as an oxidising agent

    It behaves as an oxidising agent only when hot and concentrated:

    Cu + 2H2SO4 CuSO4 + H2O + SO2 The sulphuric acid is reduced to sulphur dioxide

    Action as a dehydrating agent

    Concentrated sulphuric acid has a great affinity for water

    (It is important when diluting the concentrated acid to add the acid to water and NEVER water to acid

    ) The reaction is highly exothermic

    So great is its affinity for water that it can dehydrate compounds containing hydrogen and oxygen:

    acid It is used for drying gases, especially SO2 and HCl, but cannot be used to dry a reducing gas such as H2S or an alkaline gas such as NH3

    Action as a dehydrating agent

    The properties of acids are due to the hydrogen ions in solution

    Concentrated sulphuric acid contains molecules, rather than ions

    Since it contains very few hydrogen ions it does not react significantly with metals and can safely be stored in steel containers

    A piece of magnesium ribbon does not dissolve in concentrated sulphuric acid

    Diluted with water, sulphuric acid behaves as a typical acid:

  • it reacts with metals to form sulphates plus hydrogen gas
  • it reacts with metal carbonates to form metal sulphates plus carbon dioxide plus water
  • It neutralises bases to form sulphates plus water

    Industrial uses

    17.0.0 Chlorine and Its Compounds Chlorine

    Halogen is elements in group (vii) of the periodic table

    Chlorine is a halogen as well as fluorine, bromine, iodine and astatine

    Chlorine has a symbol 35

    5 Cl because it is made up of two isotopes 37 Cl and 35 Cl

    It has an electronic arrangement of 2:8:7, hence justifying its position in group (vii)

    Laboratory preparation

    In order to convert hydrogen chloride to chlorine, it is necessary to remove hydrogen

    Removal of hydrogen is oxidation

    A powerful oxidizing agent such as manganese (IV) oxide converts hydrogen chloride (HCl) to chloride (Cl2) The most common laboratory method for preparation of Chlorine is to heat of Manganese Dioxide with concentrated Hydrochloric Acid

    The gas is bubbled through water to remove any traces of hydrochloric gas that may be present and then it is dried by bubbling it through concentrated sulphuric acid

    Chlorine may also be prepared by dropping cold concentrated Hydrochloric Acid on crystals of Potassium Permanganate

    2 KMnO4 + 16 HCl 2 MnCl2 + 2 KCl + 8 H2O + 5 Cl2 The gas is also bubbled through water to remove any traces of Hydrochloric Acid gas that may be present and then it is dried by bubbling it through concentrated Sulphuric Acid

    Manufacture of Chlorine

    Membrane cell

    Chlorine is manufactured industrially as a by-product in the manufacture of Caustic Soda by the electrolysis of brine

    2 NaCl + 2 H2O Cl2 + H2 + 2 NaOH

    The membrane cell has titanium anode and a nickel cathode

    Titanium is chosen because it is not attacked by chlorine

    The anode and the cathode compartments are separated by an ion exchange membrane

    The membrane is selective; it allows Na+ ions, H+ and OH- ions to flow but not Cl- ions

    These ions cannot flow backwards, so products are kept separate and cannot react with each other At anode, the Cl- ions are discharged more readily than OH- ions because they are in higher concentration and are hence preferred

    2 Cl- Cl2 + 2e- A pale green gas is seen coming off at the anode At cathode, it is the H+ ions that accept electrons, as sodium is more reactive than hydrogen 2 H+ + 2e- H2 Bubbles of hydrogen are seen at the cathode

    The remaining ions of Na+ and OH- join up and come off as sodium hydroxide, NaOH

    Products and uses

    Properties of chlorine

    Test for Chlorine Gas, Cl2(g)

    1) Will turn moist litmus or universal indicator paper red, and then bleach it white

    (2) Is green-yellow in colour

    (3) Has a pungent choking smell and is poisonous

    It is twice as dense as air

    (4) Will put out a lit splint

    Collecting Chlorine

    Chlorine is denser than air and can be collected by downward delivery or using a gas syringe


    1.Chlorine is a highly reactive element, and undergoes reaction with a wide variety of other elements and compounds

    2.Chlorine is a good bleaching agent, due to its oxidising properties

    3.Chlorine is soluble in water (which solution is called Chlorine Water) and this loses its yellow colour on standing in sunlight, due to the formation of a mixture of Hypochlorous Acid and Hydrochloric Acid

    Cl2 + H2O HOCl + HCl

    4.Chlorine gas supports the vigorous combustion of many elements to form their chlorides

    For example, Sulphur and Phosphorus burn in the gas

    Cl2 + S SCl2 Cl2 + P PCl3 + PCl5

    Bleaching Action

    If chlorine is passed through water, it forms two acids, hydrochloric acid

    Cl2 (g) + H2O (l) HCl (aq) + HOCl (aq)

    Hypochlorous acid (the second acid) is the source of oxygen and is responsible for the bleaching of chlorine

    HClO (aq) + Dye HCl (aq) + oxidized Dye (Coloured) (Colourless)

    It is important to wash bleached clothes thoroughly to remove hydrochloric acid formed after the process

    Reaction of Chlorine with Hydrogen

    A mixture of Chlorine and Hydrogen explodes when exposed to sunlight to give Hydrogen Chloride

    In the dark, no reaction occurs, so activation of the reaction by light energy is required

    Hydrogen and chlorine gas also combine directly in presence of sunlight

    A jar of hydrogen is inverted and placed on a jar containing chlorine in the sun

    Soon hydrogen chloride is formed

    In diffused sunlight, the reaction slows down, and in the dark it is very slow

    Cl2 + H2 2 HCl Hydrogen chloride is highly soluble in water

    It dissolves to form hydrochloric acid

    This reaction can be used to produce hydrochloric when the hydrogen chloride gas produced is dissolved in water as shown

    2. Reaction of Chlorine with Non-Metals

    Chlorine combines directly with most non-metals (except with Nitrogen, Oxygen and Carbon, C)

    3. Reaction of Chlorine with Metals

    Thin foils of metals like sodium, copper, etc. when plunged into a jar of chlorine gas catch fire spontaneously to form their respective chlorides

    With yellow phosphorous

    Yellow phosphorus first melts and then catches fire spontaneously when introduced into a jar of chlorine gas

    It forms thick white fumes of phosphorus (III) chloride and phosphorus (V) chloride

    Reaction with hydrogen sulphide

    On passing chlorine and hydrogen sulphide through separate vents in a upright combustion tube hydrogen sulphide gets oxidised to hydrogen chloride and sulphur

    Hydrogen chloride comes out through the middle tube

    If chlorine is passed through a solution of hydrogen sulphide in water the solution turns turbid due to the formation of free sulphur

    Reaction with aqueous sodium sulphite

    When chlorine is passed through an aqueous solution of sodium sulphite it gets converted to sodium sulphate

    Chlorine first reacts with the water to form nascent oxygen

    Displacement of the Halogens by Chlorine

    Halogens are the most electronegative elements

    Fluorine is the most electronegative, followed by chlorine then bromine and then iodine

    The relative reactivity of the halogens, as described in group trends, can be shown by displacement reactions

    These are similar to the metal displacement reactions

    For example, Bromine gas bubbled through a solution of potassium iodide in water will displace (take the place of) the less reactive iodine, forming iodine and potassium bromide

    Bromine + potassium iodide potassium bromide + iodine

    Br2(g) + 2KI(aq) 2KBr(aq) + I2(s)

    Similarly, chlorine will displace less reactive halogens

    Chlorine will displace both bromine and iodine from the appropriate salt

    This can be used in the extraction of bromine from sea water

    Chlorine + potassium iodide potassium chloride + iodine

    Cl2(g) + 2KI(aq) 2KCl(aq) + I2(s)

    The equations can be written in terms of ions (called ionic equations)

    For example, the last equation can be written as

    Cl2(g) + 2I-(aq) 2Cl-(aq) + I2(s)

    Potassium iodide, on the left, exists as potassium ions (K+) and iodide ions (I-) and potassium chloride, on the right, exists as potassium ions (K+) and chloride ions (Cl-)

    Potassium ions (or other metal ions) can be left out of the ionic equation because they do not take part in the reaction

    They are called 'spectator ions', as though they just sit back and watch!

    Fluorine being the most electronegative halogen can displace all the other elements of this group (chlorine, bromine and iodine) from the aqueous solution of their salts

    Chlorine can displace bromine and iodine from bromides and iodides respectively

    However, it cannot displace fluorine from fluorides

    Bromine can displace iodine from iodides

    But it cannot displace chlorine or fluorine from chlorides or fluorides respectively

    Iodine being the least electronegative of the halogens cannot displace any other halogen from their respective halides

    Summary of Displacement Reactions

    Bleaching Action of Chlorine

    Chlorine bleaches (removes the color) organic colors by the process of oxidation in presence of moisture

    The bleaching action takes place in few steps:

    a) Chlorine first dissolves in water to give a mixture of hydrochloric acid and hypochlorous acid

    b) As mentioned earlier hypochlorous acid is very unstable and decomposes to give hydrochloric acid and nascent oxygen

    c) The nascent oxygen oxidises the coloring matter to colorless matter thereby bleaching them

    Bleaching by chlorine is permanent

    Chlorine bleaches cotton fabrics, wood pulp litmus etc

    However, it is not used to bleach delicate articles such as silk, wool etc

    , as it is a strong bleaching and oxidizing agent

    This dual action will damage the base material

    You must have noticed that in the very first stage, presence of water is essential to produce hypochlorous acid

    The dry coloured fabric does not bleach

    The coloured fabric soaked in water is bleached

    This shows that chlorine only bleaches in the presence of water

    If water is absent no bleaching can take place

    Dry chlorine therefore does not bleach

    Tests for Chlorine

    1. Chlorine is a greenish yellow gas with a pungent and irritating odor

    2. It turns wet blue litmus paper red and then bleaches it

    3. Colored petals and the leaves of plants can be bleached by it

    4. Chlorine turns wet starch potassium iodide paper blue by displacing the iodine from the potassium iodide, and causing iodine to turn the starch blue

    Oxidizing Reaction of Chlorine

    Chlorine is a strong oxidising agent

    Chlorine oxidises Iron (II) Chloride, FeCl2, to the salt containing Iron in the higher oxidation state Iron (III) Chloride, FeCl3

    This is possible because Iron has a variable valency

    2 FeCl2 + Cl2 2 FeCl3 Chlorine displaces the less electronegative Bromine and Iodine from their respective salts

    Cl2 + 2 KBr 2 KCl + Br2 Chlorine removes Hydrogen from the hydrides of non-metals, forming Hydrogen Chloride, and leaving the non-metal element

    Cl2 + H2S 2 HCl + S

    Affinity for Hydrogen

    Chlorine combines with free hydrogen to form hydrogen chloride

    It can also react with the hydrogen present in other compounds such as water, ammonia, hydrocarbon, hydrogen sulphide etc

    With water

    Chlorine dissolves in water to form chlorine water

    It slowly reacts with the water to form a mixture of hydrochloric acid and hypochlorous acid

    Hypochlorous acid is very unstable and in presence of sunlight it decomposes to give hydrochloric acid and a nascent oxygen atom

    Two such nascent oxygen atoms combine to form a molecule of oxygen

    So if a solution of chlorine in water is exposed to sunlight as shown in figure 14

    14, oxygen is formed

    With ammonia

    Depending on which of the two gases is in excess, chlorine reacts with ammonia in two ways

    (a) When ammonia is in excess the final products are ammonium chloride and nitrogen

    Hydrogen chloride thus produced reacts with excess of ammonia to produce ammonium chloride

    The overall reaction can be written as:

    (b) When chlorine is in excess the final product is an oily explosive liquid called nitrogen trichloride

    With alkalis

    Alkalis, at different temperatures and at different levels of concentration, behave differently with chlorine

    (i) With cold dilute alkalis

    Chlorine reacts with cold dilute alkalis to form their respective chlorides, hypochlorites and water

    (ii) With hot concentrated alkalis

    Chlorine reacts with hot concentrated alkalis to form their respective chlorides, chlorates and water


    Chlorine is used

  • For the manufacture of bleaching powder and liquid bleaches,
  • To bleach fabrics (e.g linen and cotton), wood pulp and paper,
  • For the direct manufacture of Hydrochloric Acid by the direct combination of its elements, H2 + Cl2 -> 2 HCl
  • In the manufacture Sodium Hypochlorite (i.e domestic bleach), disinfectants, insecticides, plastics and Hydrochloric Acid,
  • As a disinfectant used to kill bacteria in the preparation of drinking water

  • Chlorine is also important in the manufacture of paints, aerosol propellants and plastics

  • Also used to make some explosives, poison gases and pesticides

    Hydrogen Chloride Hydrogen chloride is an hydrogen compound of Chlorine

    Chlorine is a highly reactive element and is mainly found in combined state

    Its most important source is sodium chloride which is mainly found in large underground deposits, sea and lake such as lake Magadi

    Sodium chloride is the main source of chlorine which is used to make hydrogen chloride

    Preparation of hydrogen chloride

    Hydrogen Chloride may be prepared in the laboratory by heating Concentrated Sulphuric Acid, with Sodium Chloride

    Preparing and making a solution of hydrogen chloride

    It is prepared industrially by the combustion of Hydrogen, H2, in Chlorine, Cl2

    H2 + Cl2 -> 2 HCl

    Other way of producing chlorine

    Chlorine, removes Hydrogen, from the hydrides of non-metals, forming Hydrogen Chloride, and leaving the non-metal element

    Cl2 + H2S 2 HCl + S

    When Chlorine Water, (i.e a solution of Chlorine gas, in Water) in a flask inverted in a basin of the same liquid is exposed to bright sunlight, the Chlorine is decomposed and a solution of Hypochlorous Acid remains

    H2O + Cl2 HCl + HClO

    The Hypochlorous Acid, is not very stable and the solution readily decomposes, especially when exposed to sunlight, yielding Oxygen, 2 HClO 2 HCl + O2 Chlorine is soluble in water (which solution is called Chlorine Water) and this loses its yellow colour on standing in sunlight, due to the formation of a mixture of Hypochlorous Acid, and Hydrochloric Acid

    Cl2 + H2O HOCl + HCl

    Properties of Hydrogen Chloride

    Hydrogen chloride in solution

    Hydrogen chloride is a colourless fuming gas

    The polar covalent gas Hydrogen Chloride is very soluble in Water

    In aqueous solution, the molecule exists in ionic form, as the positively charged Hydrogen Ion, H+, and the negatively charged Chloride Ion, Cl-

    HCl + aq H (+) + Cl (-) Hydrogen Hydrogen Chloride Chloride Ion Ion Its solution in water turns blue litmus paper red

    Hydrogen chloride has no effect on dry litmus paper as no ions are present in dry gas

    The importance of water

    The gas hydrogen chloride is made up of covalently bonded molecules

    If the gas is dissolved in an organic solvent, such as methylbenzene, it does not show any of the properties of an acid

    Dissolving hydrogen chloride in water and methylbenzene

    For example, it does not conduct electricity or turn a piece of blue litmus paper red

    However, when the gas is dissolved in water, a strongly acidic solution is produced

    The acidic oxides of sulphur, phosphorus and carbon are the similar

    They are covalent molecules when pure, but show acidic properties only when dissolved in water

    Reaction with Group 1 Alkali Metals

    Alkali metals burn very exothermically and vigorously when heated in chlorine to form colourless crystalline ionic salts e.g NaCl or Na+Cl-

    This is a very expensive way to make salt! It’s much cheaper to produce it by evaporating sea water!

    E.g sodium + chlorine sodium chloride

    2Na(s) + Cl2(g) 2NaCl(s)

    The sodium chloride is soluble in water to give a neutral solution pH 7, universal indicator is green

    The salt is a typical ionic compound i.e a brittle solid with a high melting point

    Similarly potassium and bromine form potassium bromide KBr, or lithium and iodine form lithium iodide LiI

    Again note the group formula pattern

    Hydrochloric acid reacts with metals above hydrogen in the reactivity series

    All of these metals react with hydrochloric acid liberating hydrogen which puts out a burning splint with a pop sound

    Zn(s) + 2HCl (aq) -> ZnCl2 (aq) + H2 (g)

    This is a common reaction for preparing hydrogen gas in the school laboratory

    The hydrogen can then be collected over water

    The salts produced can be obtained from the solution by filtration to obtain the filtrate which then transferred onto an evaporation dish for evaporation and crystallization

    No hydrogen is liberated when the acid is reacted with lead, copper and mercury

    Despite the fact that lead is above hydrogen in the reactivity series, the hydrogen chloride is not a strong enough oxidizing agent to liberate hydrogen

    Reaction with bases

    Hydrochloric acid is a strong acid as it is well ionized in solution

    It neutralizes bases and alkalis forming salts and water

    KOH (aq) + HCl (aq) -> KCl (aq) + H2O (l)

    CuO(s) + HCl (aq) -> CuCl2 (aq) + H2O (l) FeO(s) + 2 HCl (aq) -> FeCl2 (aq) + H2O (l)

    Reaction with carbonates

    Hydrogen chloride reacts with carbonates and hydrogen carbonates producing carbon dioxide, salt and water

    Carbon dioxide turns lime water milky

    CaCO3 (aq) + 2HCl (aq) CaCl2 (aq) + CO2 (g)+H2O (l)

    Ionic equation CO3/sub>2- (aq) + 2H+ (aq) CO2(g) + H2O (l)

    NaHCO3 (aq) + HCl (aq) NaCl (aq) + CO2 (aq) + H2O (l)

    Ionic equation

    HCO3-(aq) + H+ (aq) CO2(g) + H2O(l)

    Reaction with hydrogen H2

    Halogens readily combine with hydrogen to form the hydrogen halides which are colourless gaseous covalent molecules

    E.g hydrogen + chlorine hydrogen chloride

    H2 (g) + Cl2 (g) -> 2HCl (g)

    The hydrogen halides dissolve in water to form very strong acids with solutions of pH1 e.g hydrogen chloride forms hydrochloric acid in water HCl(aq) or H+Cl-(aq) because they are fully ionised in aqueous solution even though the original hydrogen halides were covalent!

    An acid is a substance that forms H+ ions in water

    Bromine forms hydrogen bromide gas HBr (g), which dissolved in water forms hydrobromic acid HBr (aq)

    Iodine forms hydrogen iodide gas HI (g), which dissolved in water forms hydriodic acid HI (aq)

    Note the group formula pattern

    Oxidation of hydrochloric acid

  • The most common laboratory method for preparation of Chlorine is to heat Manganese Dioxide, with concentrated Hydrochloric Acid

    MnO2 + 4 HCl MnCl2 + 2 H2O + Cl2 The gas is bubbled through water to remove any traces of hydrochloric gas that may be present and then it is dried by bubbling it through concentrated sulphuric acid

    Chlorine may also be prepared by dropping cold concentrated Hydrochloric Acid, on Potassium Permanganate

    2KMnO4 + 16HCl 2MnCl2 + 2KCl + 8H2O + 5Cl2 Summary

    Defination of Common Terms in Chemistry

    Word Definition:

    Acid :A corrosive substance which has a pH lower than 7

    Acidity is caused by a high concentration of hydrogen ions

    Acid rain: Acid rain is caused when sulphur dioxide - released by the burning of coil and oil - dissolves in rainwater to form sulphuric acid

    Activation energy: The minimum energy required for a collision between particles, in order for a reaction to occur

    Addition polymer: Addition polymers are made when monomers (simple molecules) add together across a double bond

    Addition reaction: A reaction in which a small molecule adds on across a double bond

    Alkali: A base, which is soluble in water

    Alkali metals The alkali metals are the elements in Group 1 of the periodic table

    They have one electron in the outer shell

    Alkanes: Alkanes are saturated hydrocarbons

    This means that each carbon atom has four bonds to other atoms

    Alkenes: Alkenes are unsaturated hydrocarbons with a double bond between the carbon atoms

    Allotropes: Allotropes are structurally different forms of an element

    They differ in the way the atoms bond with each other and arrange themselves into a structure

    Because of their different structures, allotropes have different physical and chemical properties

    Alloy: An alloy is a mof two or more elements, at least one of which is a metal

    Anode: An anode is the electrode (electrical conductor) attached to the positive terminal of a battery

    Atom: All elements are made of atoms

    An atom consists of a nucleus containing protons and neutrons, surrounded by electrons

    Atomic number: The atomic number (Z) of an element is the number of protons in the nucleus of the atom

    Bases: Substances with a pH higher than 7, and which have a high concentration of hydroxyl ions

    Bases react with acids to form a salt and water (called neutralisation)

    Metal hydroxides, oxides and carbonates are all bases

    Biocatalyst :A biocatalyst is an enzyme or microorganism that activates or speeds up a biochemical reaction

    Boiling point: The temperature at which a liquid changes its state to gas

    Brittle If something is brittle it is easily broken

    Catalyst: A catalyst changes the rate of a chemical reaction without being changed by the reaction itself

    Catalytic converter: A device in internal combustion engines which catalyses reactions converting harmful exhaust gases such as carbon monoxide into normal atmospheric gases

    Cathode: A cathode is the electrode (electrical conductor) attached to the negative terminal of a battery

    Chemical change: A chemical change involves new substances being formed and is very difficult to reverse

    Combustion: Combustion is the process of burning by fire

    Compound: A compound is a substance formed by the chemical union (involving bond formation) of two or more elements

    Condensation: Condensation is a change of state in which gas becomes liquid by cooling

    Conduct To allow electricity, heat or other energy forms to pass through

    Conductor: An electrical conductor is a material which allows an electrical current to pass easily

    It has a low resistance

    A thermal conductor allows thermal energy to be transferred through it easily

    Corrode: To deteriorate (get weaker) due to the action of water, air, or an acid

    Covalent bond: A covalent bond between atoms forms when atoms share electrons to achieve a full outer shell of electrons

    Covalent compounds: A covalent compound is a compound of neutral atoms in which the atoms are held together by covalent bonds

    Covalent bonds between atoms form when atoms share electrons to achieve a full outer shell of electrons

    Cracking: Cracking is the breaking down of large hydrocarbon molecules into smaller, more useful hydrocarbon molecules by vapourizing them and passing them over a hot catalyst

    Crude oil : Crude oil is formed from the remains of small animals and plants that died and fell to the bottom of the sea

    Their remains were covered by mud

    As the sediment was buried by more sediment, it started to change into rock as the temperature and pressure increased

    The plant animal remains were "cooked" by this process and changed into crude oil

    Decomposition: A reaction in which substances are broken down, by heat, electrolysis or a catalyst

    Denatured: If a protein is denatured, its structure and function is altered

    This can be caused by heat, altered pH or by chemical agents

    Displacement reactions: Displacement reactions happen when a more-reactive element replaces a less-reactive element in a compound

    Distillation: Distillation is when we make a liquid evaporate and then condense the vapour back to a purer liquid

    Double bond :A double bond is a covalent bond resulting from the sharing of four electrons (two pairs) between two atoms

    Ductile: If a material is ductile it is capable of being drawn into thin sheets or wires without breaking

    Electrode: Electrodes are conductors used to establish electrical contact with a circuit

    The electrode attached to the negative terminal of a battery is called a negative electrode, or cathode

    The electrode attached to the positive terminal of a battery is the positive electrode, or anode

    Electrolysis: Electrolysis is the decomposition (separation or break-down) of a compound using an electric current

    Electrolyte An electrolyte is a substance which in solution will conduct an electric current

    Electron: An electron is a very small negatively charged particle found in an atom in the space surrounding the nucleus

    Electrostatic: An electrostatic force is generated by differences in electric charge (i.e positive and negative) between two particles

    It can also refer to electricity at rest

    Element All atoms of an element have the same atomic number, the same number of protons and electrons and so the same chemical properties

    Endothermic: In an endothermic reaction, energy is taken in from the surroundings

    The surroundings then have less energy than they started with, so the temperature falls

    Equilibrium: If the rate of the forward reaction and the rate of the back reaction in a reversible reaction are equal, the reaction is in equilibrium

    Eutrophication: Eutrophication is the enrichment of a water body with nutrients - such as nitrates - which results in excessive growth of algae and other aquatic plants, leading to depletion of oxygen

    Evaporation: Evaporation is a change in state in which a liquid becomes a gas (vapour); molecules near the surface of a liquid may leave the liquid to become a vapour

    Exothermic: Heat energy is released in an exothermic reaction

    We know this because the surroundings get warm

    Filtrate: Filtrate is fluid that has passed through a filter

    Formula: A formula is a combination of symbols that indicates the chemical composition of a substance

    Fossil: Fossils are the remains of animals and plants from a past geological age, preserved in the Earth's crust

    Fossil fuels: Fossil fuels have been created over millions of years by the decay and compression of living things, particularly plants

    Coal, gas and oil are fossil fuels

    Fractional distillation: In fractional distillation a mixture of several substances, such as crude oil, is distilled and the evaporated components are collected as they condense at different temperatures

    Groups: The groups of elements in the periodic table are the elements which have the same number of electrons in their outer shells and so have similar chemical properties

    A group of elements all lie in same column in the periodic table

    Halogens: The halogens are the elements in Group VII of the periodic table

    They have seven electrons in the outer shell

    Hydrocarbons: Hydrocarbons are a group of compounds, which contain the elements hydrogen and carbon

    Ion :An ion is a charged particle formed by loss or gain of electrons

    When atoms lose an electron they become a positive ion

    When they gain an electron they become a negative ion

    Ionic bond: An ionic bond forms between two atoms when an electron is transferred from one atom to the other, forming a positive-negative ion pair

    Ionic compound: An ionic compound occurs when a negative ion (an atom that has gained an electron) joins with a positive ion (an atom that has lost an electron)

    The ions swap electrons to achieve a full outer shell

    Isotopes: Atoms of the same element that have different numbers of neutrons are called isotopes

    Lattice: A lattice is a regular grid-like arrangement of atoms in a material

    Liquefy: To liquefy means to become liquid, for example through heating a solid or cooling a gas

    Lubricant: A substance used to reduce the friction between two solid surfaces

    Mass: Mass is a measure of the amount of material in an object

    It is measured in grams (g)

    Mass number: The mass number (A) of an element is the number of protons plus the number of neutrons in the nucleus of the atom

    Molecular compound: A molecular compound is made up of at least two different elements, which share electrons to form covalent bonds

    Molecule: A molecule is a collection of two or more atoms held together by chemical bonds

    It is the smallest part of a substance that displays the properties of the substance

    Molten: Molten means reduced to liquid form by heating

    It is mainly used to describe rock, glass or metal

    Monomer: A monomer is a simple molecule

    Natural gas: Natural gas is a fossil fuel formed from decaying plant and animal material

    Neutralisation: Neutralisation is the reaction between an acid and a base to form a salt plus water

    Neutron: A neutron is a particle that is found in the nucleus of an atom, has a mass approximately equal to that of a proton, and has no electric charge

    Noble gases: The noble gases are the elements in Group 0/Group VIII of the periodic table

    They have a full outer shell of electrons and so are unreactive

    Nucleus: Found at the centre of an atom, the nucleus contains protons and neutrons

    Ore: An ore is a rock containing enough quantities of a mineral that it is profitable to extract it

    Oxidation: Oxidation is a reaction in which oxygen combines with a substance

    Oxidation also means a loss of electrons

    Periods: The periods of elements in the periodic table are the elements in which the same outer shell is being filled up

    A period of elements in the periodic table all lie in the same row

    Polymer: A polymer is a large molecule formed from many identical smaller molecules (monomers)

    Polymerise: Polymerisation is the reaction in which many identical monomers are joined together to make a polymer

    Product: A product is a substance formed in a chemical reaction

    Protons: A proton is a small particle with a positive charge found in the nucleus of the atom

    Radioactive: A radioactive isotope gives off (or is capable of giving off) radiant energy in the form of particles or rays by the spontaneous disintegration of the nucleus

    Reactant: A reactant is a substance put together with another substance/substances to undergo a chemical reaction

    Reactant: A reactant is a substance put together with another substance/substances to undergo a chemical reaction

    Re-crystallisation: When rocks are heated and put under pressure new crystals can form

    These are often elongated in the direction of least pressure

    Redox: reaction Oxidation and reduction always take place together

    The combined reaction is called a redox reaction

    Reduction: Reduction is a reaction in which oxygen is removed from a substance

    Reduction also means a gain in electrons

    Relative atomic mass: The relative atomic mass is the number of times heavier an atom is compared to one twelfth of a carbon-12 atom

    Relative mass: The relative mass is the number of times heavier a particle is, compared to another

    Reversible reactions :Reversible reactions are chemical reactions, which can go both ways

    The direction of the reaction depends on the condition of the reactants

    Salt: A compound formed by neutralisation of an acid by a base (e.g a metal oxide) - the result of hydrogen atoms in the acid being replaced by metal atoms or positive ions

    Sodium chloride: - common salt - is one such compound

    Saturated: Filled to capacity

    In a saturated hydrocarbon there are no more available bonds

    Slag :Slag is the non-metallic by-product resulting from the extraction of metals such as iron from their ores

    Solute: A solute is the material that dissolves in a solvent to form a solution

    Solution: A solution is the mixture formed when a solute dissolves in a solvent

    Solvent: A solvent is the liquid in which the solute dissolves to form a solution

    Stable: Atoms are stable if their outer shell contains its maximum number of electrons

    Sterilize: To sterilize means to make something free from microorganisms such as bacteria

    Thermal decomposition: A reaction in which substances are broken down by heat

    Unsaturated: An unsaturated compound contains at least one double or triple bond

    Vapour: Vapour is a cloud of liquid particles

    Steam is water vapour

    Vapourized: Turned (generally through heating) into vapour.Vapour is a cloud of liquid particles

    Steam is water vapour

    Basic Chemistry Interview Questions and Answers Pdf Basic Chemistry Questions and Answers Basic Chemistry Questions and Answers Pdf Chemistry Form 1 Notes Chemistry Form 1 Notes Free Download Chemistry Form 1 Notes Pdf Chemistry Form 1 Notes Pdf Download Chemistry Form 2 Notes Chemistry Form 2 Questions and Answers Chemistry Form 2 Salts Chemistry Form 2 Structure and Bonding Chemistry Form 3 Notes Chemistry Form 3 Notes Pdf Chemistry Form 4 Exercise Chemistry Form 4 Notes Chemistry Form 4 Notes Chapter 1 Chemistry Form 4 Notes Chapter 2 Chemistry Form 4 Notes Chapter 3 Chemistry Form 4 Notes Download Chemistry Form 4 Notes Pdf Chemistry Form One Book Pdf Chemistry Form One Notes Pdf Chemistry Form One Pdf Chemistry Multiple Choice Questions and Answers Pdf Chemistry Objective Questions for Competitive Exams Chemistry Question and Answer With Explanation Chemistry Questions and Answers Chemistry Questions and Answers for High School Chemistry Questions and Answers Pdf Chemistry Questions and Answers Pdf for Class 12 Chemistry Quiz Questions and Answers for Class 12 Chemistry Quiz Questions and Answers Multiple Choice Chemistry Spm Notes Download Download Chemistry Form 2 Notes Download Klb Chemistry Book 3 Form 3 Chemistry Questions and Answers Form 3 Chemistry Questions and Answers Pdf Form Three Chemistry Book Pdf Hard Chemistry Questions and Answers High School Chemistry Questions and Answers Pdf Inorganic Chemistry Multiple Choice Questions With Answers Pdf Inorganic Chemistry Questions and Answers Pdf Interesting Chemistry Questions Klb Chemistry Book 1 Download Klb Chemistry Book 1 Pdf Klb Chemistry Book 2 Notes Klb Chemistry Book 2 Notes Pdf Klb Chemistry Book 3 Notes Klb Chemistry Form 2 Notes Klb Chemistry Form 2 Pdf Klb Chemistry Form 3 Pdf Spm Chemistry Revision Notes Tricky Chemistry Questions With Answers

  • Scholarship 2018/19

    Undergraduate Scholarships,
    Masters Scholarships,
    PhD Scholarships,
    International Scholarships.
