# KCSE Past Papers 2017 Mathematics Alt A Paper 2

Free KCSE Mocks - KCSE Past Papers 2017 Mathematics Alt A Paper 2 - Download Free KCSE Marking Schemes - KCSE Revision - KCSE Results
KCSE Past Papers 2016 Mathematics Alt A Paper 1

Section I (50 marks)

1. The roots of a quadratic equation are x = -3/5 and x = 1. Form the quadratic equation in the form ax2 + bx + c = 0 where a, b and c are integers. (2 marks)

2. A tailor intended to subdivide a piece of cloth into 7 equal parts. She approximated 7 m to 0.14 m. Calculate the percentage error in the approximation. (3 marks)

3. A miller was contracted to make porridge flour to support a feeding program. He mixed millet, sorghum, maize and Omena in the ration 1:2:5:1. The cost per kilogram of millet was Ksh 90, sorghum Ksh 120, maize Ksh 30 and omena Ksh 150.

Calculate:

(a) the cost of one kilogram of the mixture;

(b) the selling price of 1 kg of the mixture if the miller made a 30% profit. (2 marks)

4. Without using mathematical tables or a calculator, evaluate 5/6log10 64 + log10 50 — 41og10 2. (3 marks)

5. In the figure below, PQRS is a cyclic quadrilateral. PQ = QR, PQR =105° and PS is parallel to QR.

Determine the size of.

(a) ∠ PSR (1 mark)

(b)∠ PQS.(2 mark)

6. Make T the subject of s =

7. Simplify
8. Using a ruler and a pair of compasses only, construct:

(a) a triangle LMN in which LM = 5 cm, LN = 5.6 cm and MLN = 450 .(2 marks)

(b) the circle that touches all the sides of the triangle. (3 marks)

9. The figure below is a triangle ABC.

(a) On the triangle, locate the locus of points equidistant from AC and AB and 5 cm from B. (2 marks)

(b) Shade the region R, inside the triangle, which is less than 5 cm from B and nearer to AC than AB. (1 mark)

10. An aircraft took off from a point P (65° S, 76° W) and flew due North to a point Q. The distance between P and Q is 5400 rim.

Determine the position of Q. (3 marks)

11. The equation of a circle is x2+ y2 - 4x + 6y + 4 = 0. On the grid provided, draw the circle.

(4 marks)

12. Determine the amplitude, period and the phase angle of the curve: 5/2 sin (40 + 60°)(3 marks)

13. A basket ball team scored the points in 6 matches: 10, 12, 14, 16, 28 and 30. Using an assumed mean of l5. Determine the standard deviation correct to 2 decimal places. (4 marks)

14. A committee of 3 people was chosen at random from a group of 5 men and 6 women. Find the probability that the committee consisted of more men than women. (4 marks)

15. The area of a triangle is 24 square units. The triangle is mapped onto image P by the matrix

. Find the area of the image P.

16. Given that OA = 3i+ 4j+ 7k, OB= 4i + 3j + 9k and OC = i + 6j + 3k. show that points A, B and C are collinear. (2 marks)

Section B (50 marks)

17. Answer any five questions from this section in the spaces provided.

The income tax rates of a certain year u‘ere as shown in the table below:

In that year, Shaka’s monthly earnings were as follows: Basic salary Ksh 28600

House allowance Ksh 15 000

Medical allowanceKsh 3 200

Transport allowance Ksh 540

Shaka was entitled to a monthly tax relief of Ksh 1056.

(a) Calculate the tax charged on Shaka’s monthly earnings. (6 marks)

(b) Apart from income tax, the following monthly deductions were made; a Health Insurance fund of Ksh 500, Education Insurance of Ksh 1 200 and 2% of his basic salary for widow and children pension scheme. Calculate Shaka’s monthly net income from his employment. (4 marks)

18. The vertices ofa rectangle ABCD are: A(0,2), B(0,4), C(4,4) and D(4,2). The vertices of its image under a transformation T are; A’(0,2) , B’(0,4) , C’(8,4) and D’(8,2).

On the grid provided, draw the rectangle ABCD and its image A’B’C’D’ under T. (2 marks)

(ii) Describe fully the T. (3 marks)

(iii) Determine the matrix of transformation. (2 marks)

(b). On the same grid as in (a), draw the image of rectangle ABCD under a shear with line x — —2 invariant and A(0, 2) is mapped onto A”(0,0). (3 marks)

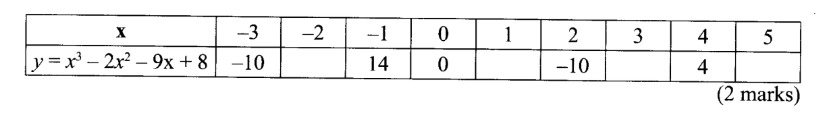

19. The table below shows values of x and some values off for the curve y = x3 — 2x2 — 9x + 8 for —3 ⋜ x ⋜ 5. Complete the table.

(b) On the grid provided, draw the graph of y = x3 — 2x2 — 9x + 8 for —3 ⋜ x ⋜ 5 for Use the scale; 1 cm represents 1 unit on the z-axis 2 cm represents 10 units on they-axis (3 marks)

(c) (i) Use the graph to solve the equation x2 — 2x3 — 9x + 8 = 0. (l mark)

(ii) By drawing a suitable straight line on the graph, solve the equation x2 - 2x2 — 11x + 6 = 0. (4 marks)

20. The figure below represents a cuboid ABCDEFGH in which AB — 16 cm, BC = 12 cm and CF = 6 cm.

(a) Name the projection of the line BE on the plane ABCD.

Calculate correct to 1 decimal place:

(i) the size of the angle between AD and BF; (2 marks)

(ii) the angle between line BE and the plane ABCD; (3 marks)

(iii) the angle between planes HBCE and BCFG. (2 marks)

(c) Point N is the midpoint of EF. Calculate the length BN, correct to 1 decimal place. (2 marks)

21. Three quantities X, Y and Z are such that X varies directly as the square root ofY and inversely as the fourth root of Z. When X = 64, Y = 16 and Z = 625.

(a) Determine the equation connecting X, Y and Z.

(b) Find the value of Z when Y = 36 and X = 160. (c) Find the percentage change in X when Y is increased by 44%. (4 marks)

22. A trader stocks two brands of rice A and B. The rice is packed in packets of the same size. The trader intends to order fresh supplies but his store can accommodate a maximum of 500 packets. He orders at least twice as many packets of A as of B.

He requires at least 50 packets of B and more than 250 packets of A. If he orders x packets of A and y packets of B,

(a) Write the inequalities in terms of x and y which satisfy the above information. (4 marks)

(b) On the grid provided represent the inequalities in part (a) above (4 marks)

(c) The trader makes a profit of Ksh 12 on a packet of type A rice and Ksh 8 on a packet of type B rice. Determine the maximum profit the trader can make. (2 marks)

23. (a) The 5° term of an AP is 82 and the 12° term is 103.

Find:

(i) the first term and the common difference; (3 marks)

(ii) the sum of the first 21 terms. (2 marks)

(b) A staircase was built such that each subsequent stair has a uniform difference in height. The height of the 6 stair from the horizontal floor was 85 em and the height of the 10° stair was 145 cm.

Calculate the height of the 1't stair and the uniform difference in height of the stairs. (3 marks)

24. The length of a room is 3 m shorter than three times its width. The height of the room is a quarter of its length. The area of the floor is 60 m2.

(a) Calculate the dimensions of the room. (5 marks)

(b) The floor of the room was tiled leaving a border of width y m, all round. If the area of the border was 1.69m', find:

(i) the width of the border;

(ii) the dimensions of the floor area covered by tiles.

KCSE Past Papers 2016 Mathematics Alt A Paper 1

Marking Scheme

Section A

1. The roots of a quadratic equation are x = -3/5 and x = 1. Form the quadratic equation in the form ax2 + bx + c = 0 where a, b and c are integers. (2 marks)

(X - 1) (5X - 3) = 0

5X25X + 3x - 3 = 0

5X2- 2x -3 = 0

2. A tailor intended to subdivide a piece of cloth into 7 equal parts. She approximated 7 m to 0.14 m. Calculate the percentage error in the approximation. (3 marks)

|Error| = 1/7 - 14/100

%Error 1/350 ÷ 1/7 x 100 1/350 x 7/1 x100

= 2%

3. A miller was contracted to make porridge flour to support a feeding program. He mixed millet, sorghum, maize and Omena in the ration 1:2:5:1. The cost per kilogram of millet was Ksh 90, sorghum Ksh 120, maize Ksh 30 and omena Ksh 150.

Calculate:

(a) the cost of one kilogram of the mixture;

M:S:M:O = 2:5:1 Cost of lkg of mixture

90 + 2(120) + 5(30) +150÷ 9

630/9

= Ksh 70

(b) the selling price of 1 kg of the mixture if the miller made a 30% profit.(2 marks)

130/100 x 70

= Ksh 91

4. Without using mathematical tables or a calculator, evaluate 5/6log10 64 + log10 50 — 41og10 2. (3 marks)

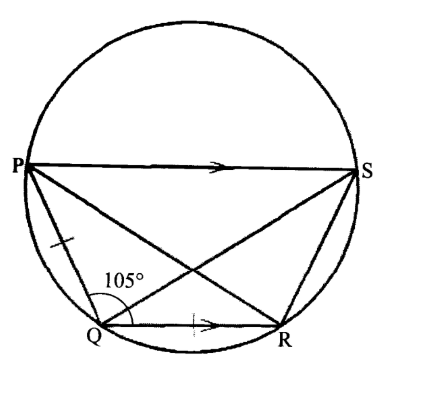

5. In the figure below, PQRS is a cyclic quadrilateral. PQ = QR, PQR =105° and PS is parallel to QR.

Determine the size of.

(a) ∠ PSR (1 mark)

180 -105 = 75°

(b)∠ PQS.(2 mark)

∠ PQS = ∠ SRP

∠ SRP = 180 —(37.5 + 75)

= 67.5°

6. Make T the subject of s =

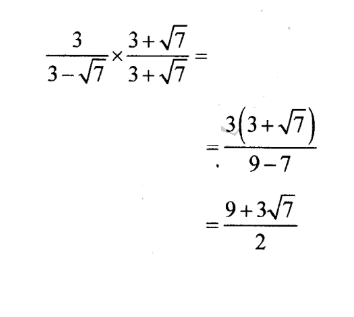

7. Simplify

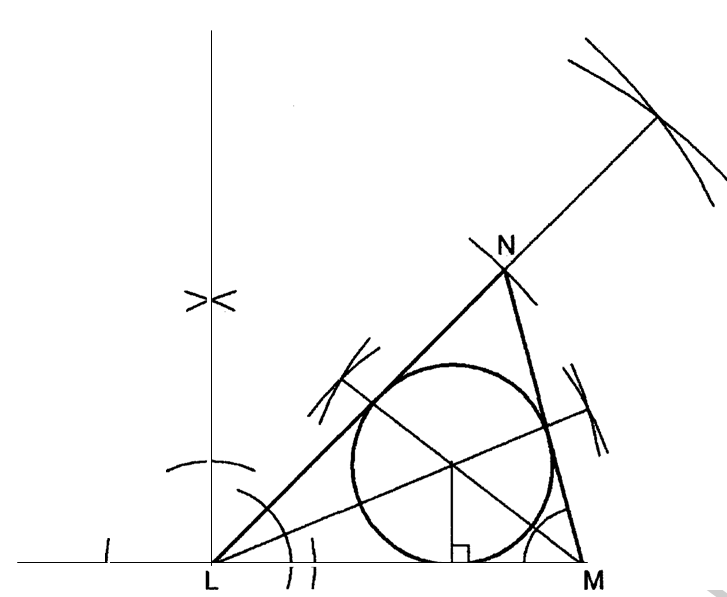

8. Using a ruler and a pair of compasses only, construct:

(a) a triangle LMN in which LM = 5 cm, LN = 5.6 cm and MLN = 450 .(2 marks)

(b) the circle that touches all the sides of the triangle. (3 marks)

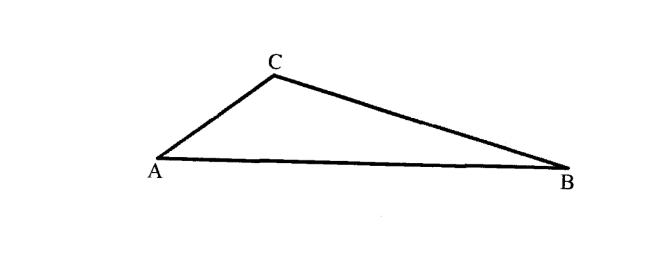

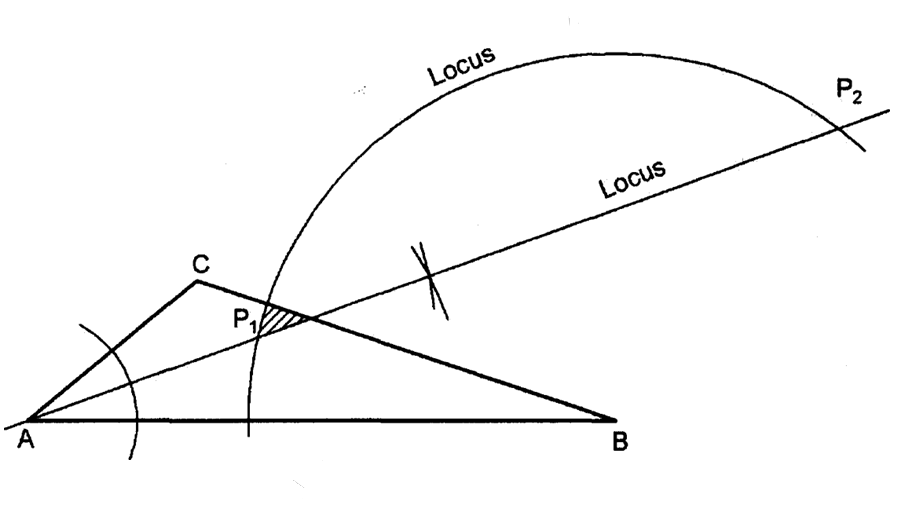

9. The figure below is a triangle ABC.

(a) On the triangle, locate the locus of points equidistant from AC and AB and 5 cm from B. (2 marks)

(b) Shade the region R, inside the triangle, which is less than 5 cm from B and nearer to AC than AB. (1 mark)

10. An aircraft took off from a point P (65° S, 76° W) and flew due North to a point Q. The distance between P and Q is 5400 rim.

Determine the position of Q. (3 marks)

d —— 60 x 8

5400 = 60 x 8

5400/60 = 0

8 = 90ᵉ

Position of Q is (25°N, 76O W)

(65 - z)60 — 5400

x=25

Q(25°N, 70 w)

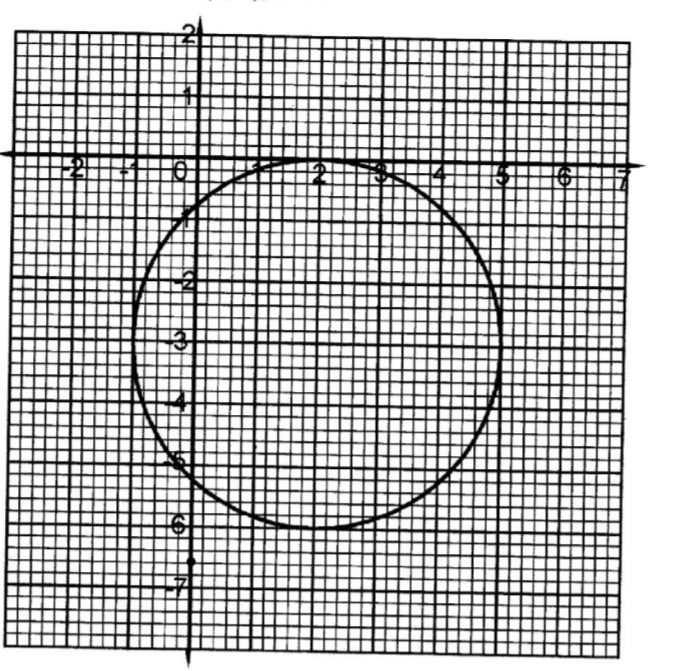

11. The equation of a circle is x2+ y2 - 4x + 6y + 4 = 0. On the grid provided, draw the circle.

x2 —4z +(—2)2 + y2 + 6y +(3)2 = —4 +(—2)2 +(3)2 (x — 2)2+(y+ 3)2 = 32 Centre (2,-3), r = 3

12. Determine the amplitude, period and the phase angle of the curve: 5/2 sin (40 + 60°)(3 marks)

sin(48 -I- 600 )

Amplitude = 2

Period = 90°

Phase angle = 60°

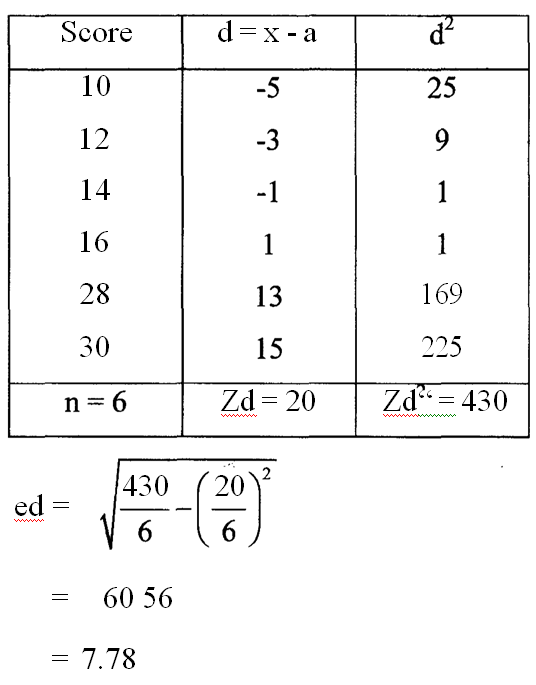

13. A basket ball team scored the points in 6 matches: 10, 12, 14, 16, 28 and 30. Using an assumed mean of l5. Determine the standard deviation correct to 2 decimal places. (4 marks)

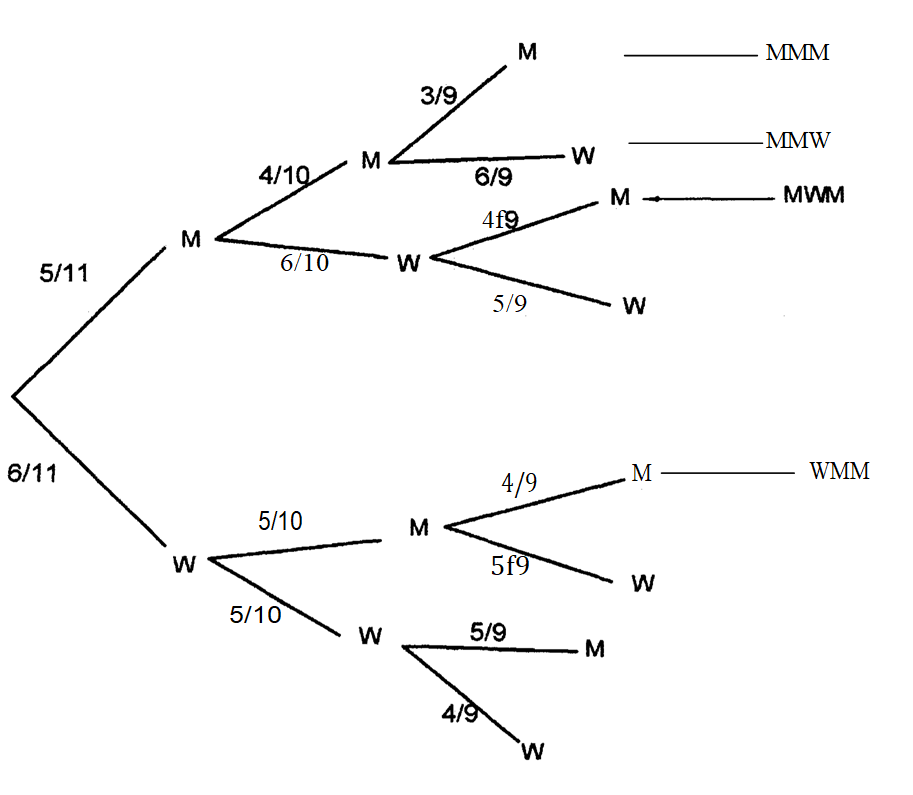

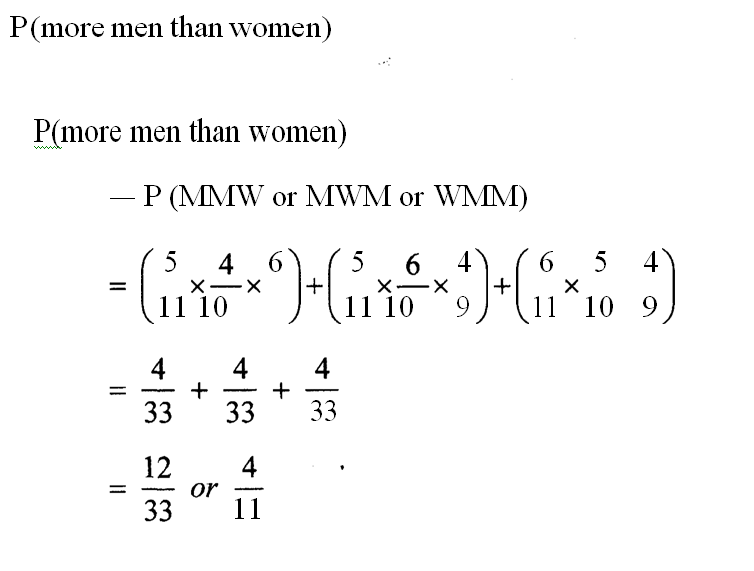

14. A committee of 3 people was chosen at random from a group of 5 men and 6 women. Find the probability that the committee consisted of more men than women. (4 marks)

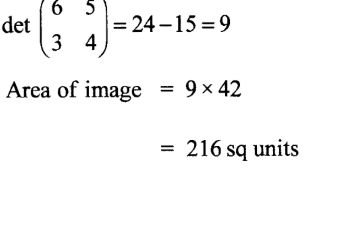

15. The area of a triangle is 24 square units. The triangle is mapped onto image P by the matrix
. Find the area of the image P.

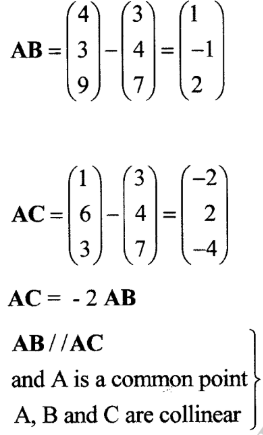

16. Given that OA = 3i+ 4j+ 7k, OB= 4i + 3j + 9k and OC = i + 6j + 3k. show that points A, B and C are collinear.(2 marks)

Section B (50 marks)

17. Answer any five questions from this section in the spaces provided.

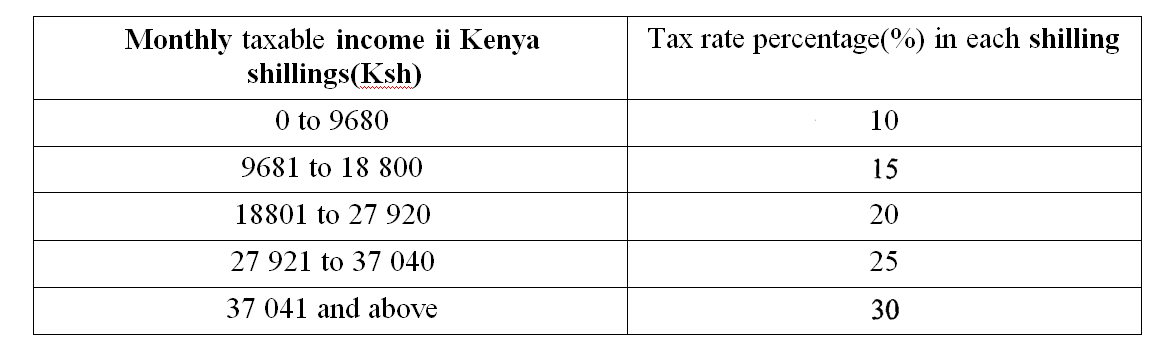

The income tax rates of a certain year u‘ere as shown in the table below:

In that year, Shaka’s monthly earnings were as follows: Basic salary Ksh 28600

House allowance Ksh 15 000

Medical allowanceKsh 3 200

Transport allowance Ksh 540

Shaka was entitled to a monthly tax relief of Ksh 1056.

(a) Calculate the tax charged on Shaka’s monthly earnings. (6 marks)

Total earning/Taxable income

= Ksh (28600 + 15000 +3200 +540)

= Ksh 47340

Tax charged:

Up to 9680 —› 9680 ^ 10% = Ksh 968

9681 — 18800 9120 150/o = Ksh 1 368

18801 — 27920 —+ 9120 • 20% = Ksh 1 824

27924 — 37040 —+ 9120 25% — Ksh 2 280

Above 37040 10300 30% = Ksh 3 090

Total tax less relief:

(968 +1 368+1 824 +2 280+3 090) — 1 056 = Ksh 8 474

(b) Apart from income tax, the following monthly deductions were made; a Health Insurance fund of Ksh 500, Education Insurance of Ksh 1 200 and 2% of his basic salary for widow and children pension scheme. Calculate Shaka’s monthly net income from his employment. (4 marks)

Monthly deductions:

2% of Ksh 28 600 = Ksh 572

Total deductions

Ksh (8 474 500 + 1 200 + 572) = Ksh 10 746

Net income = Ksh (47 340 — 10 746) Ksh 36 594

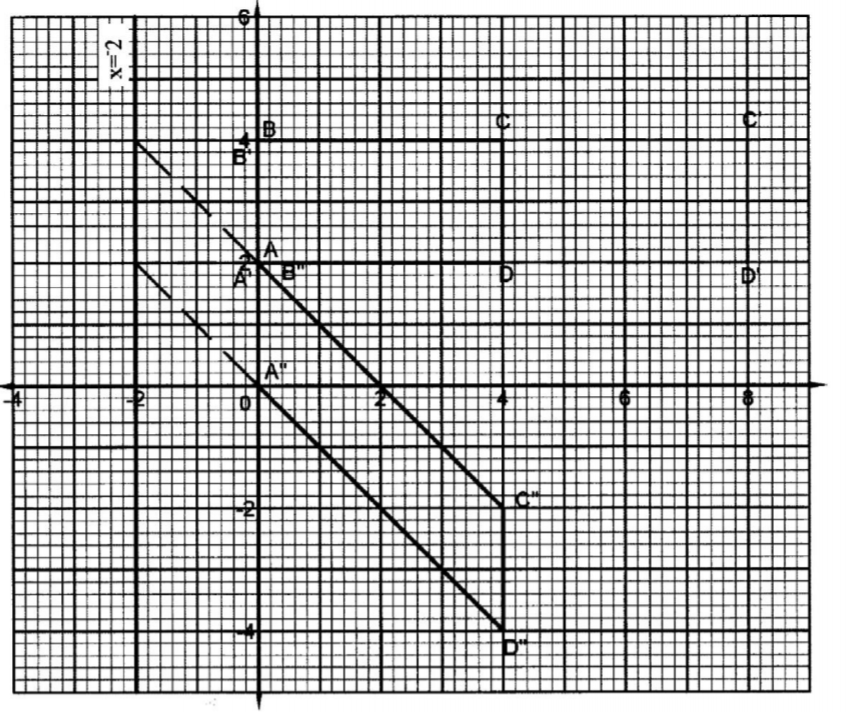

18. The vertices ofa rectangle ABCD are: A(0,2), B(0,4), C(4,4) and D(4,2). The vertices of its image under a transformation T are; A’(0,2) , B’(0,4) , C’(8,4) and D’(8,2).

On the grid provided, draw the rectangle ABCD and its image A’B’C’D’ under T. (2 marks)

(ii) Describe fully the T. (3 marks)

T is a stretch

S.F. = 2

x = 0 or y- axis invariant

(iii) Determine the matrix of transformation. (2 marks)

(b). On the same grid as in (a), draw the image of rectangle ABCD under a shear with line x — —2 invariant and A(0, 2) is mapped onto A”(0,0). (3 marks)

Invariant line identified and used

A’,B’,C’and D’plotted A"B”C"D” drawn correctly

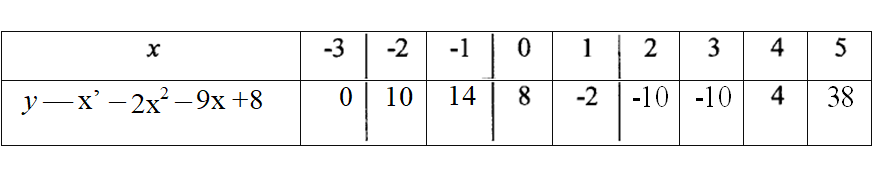

19. The table below shows values of x and some values off for the curve y = x3 — 2x2 — 9x + 8 for —3 ⋜ x ⋜ 5. Complete the table.

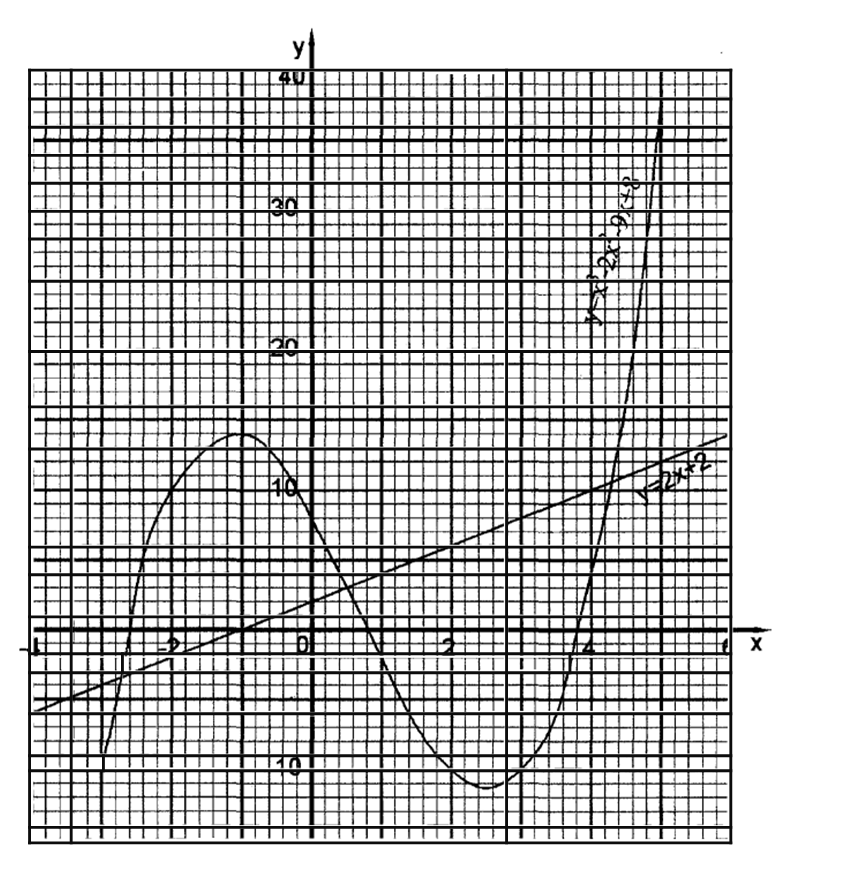

(b) On the grid provided, draw the graph of y = x3 — 2x2 — 9x + 8 for —3 ⋜ x ⋜ 5 for Use the scale; 1 cm represents 1 unit on the z-axis 2 cm represents 10 units on they-axis (3 marks)

(c) (i) Use the graph to solve the equation x2 — 2x3 — 9x + 8 = 0. (l mark)

Roots x = -2.6, 0.8, 3.8 Or for (0, 0), x = — 2.6, 0, 3.8

(ii) By drawing a suitable straight line on the graph, solve the equation x2 - 2x2 — 11x + 6 = 0. (4 marks)

y = x3 - 2x3 — 9x + 8

o = x3 — 2x2 — 11x + 6

2x + 2

y =2x + 2 drawn

Roots are -2.7, 0.5, 4.3

For (0, 0) ; x = -2.7, — 0.1 and 4.3

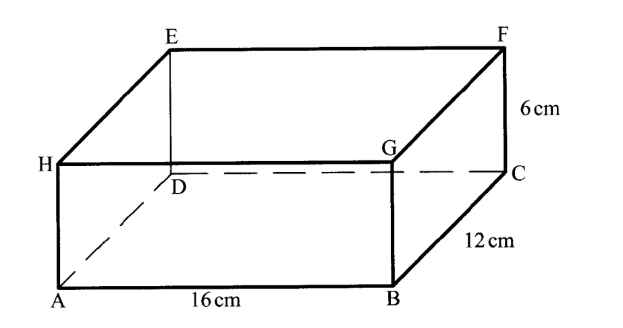

20. The figure below represents a cuboid ABCDEFGH in which AB — 16 cm, BC = 12 cm and CF = 6 cm.

(a) Name the projection of the line BE on the plane ABCD.

Projection of BE is BD

Calculate correct to 1 decimal place:

(i) the size of the angle between AD and BF; (2 marks)

Angle between line AD and BF

=tan-(16/6)

12

= 26.6°

(ii) the angle between line BE and the plane ABCD; (3 marks)

Angle between line BE and plane ABCD

BD = √ 122 + 162

= 20

Tan (DBE) = 6/20

ZDBE = tank s 6/20

16.70

(iii) the angle between planes HBCE and BCFG. (2 marks)

Angle between HBCE and BCFG. tan° 16

Tan -1 16/6

69.40

(c) Point N is the midpoint of EF. Calculate the length BN, correct to 1 decimal place. (2 marks)

BF = √ 12 + 62

= √ 180

BN = √ 180 + 82

=15.6cm

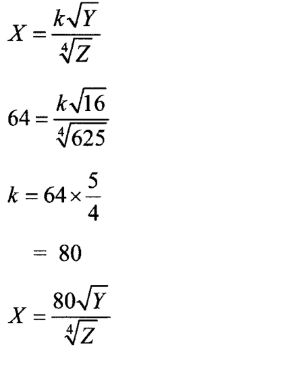

21. Three quantities X, Y and Z are such that X varies directly as the square root ofY and inversely as the fourth root of Z. When X = 64, Y = 16 and Z = 625.

(a) Determine the equation connecting X, Y and Z.

(b) Find the value of Z when Y = 36 and X = 160.

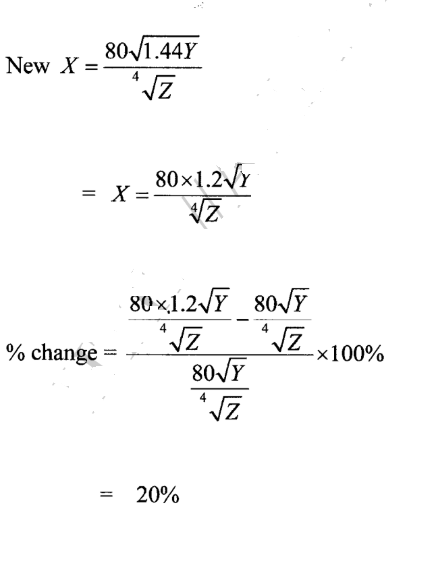

(c) Find the percentage change in X when Y is increased by 44%. (4 marks)

22. A trader stocks two brands of rice A and B. The rice is packed in packets of the same size. The trader intends to order fresh supplies but his store can accommodate a maximum of 500 packets. He orders at least twice as many packets of A as of B.

He requires at least 50 packets of B and more than 250 packets of A. If he orders x packets of A and y packets of B,

(a) Write the inequalities in terms of x and y which satisfy the above information. (4 marks)

x+y⋜ 500

x⋝ 2y

y = ⋝

x = > 250

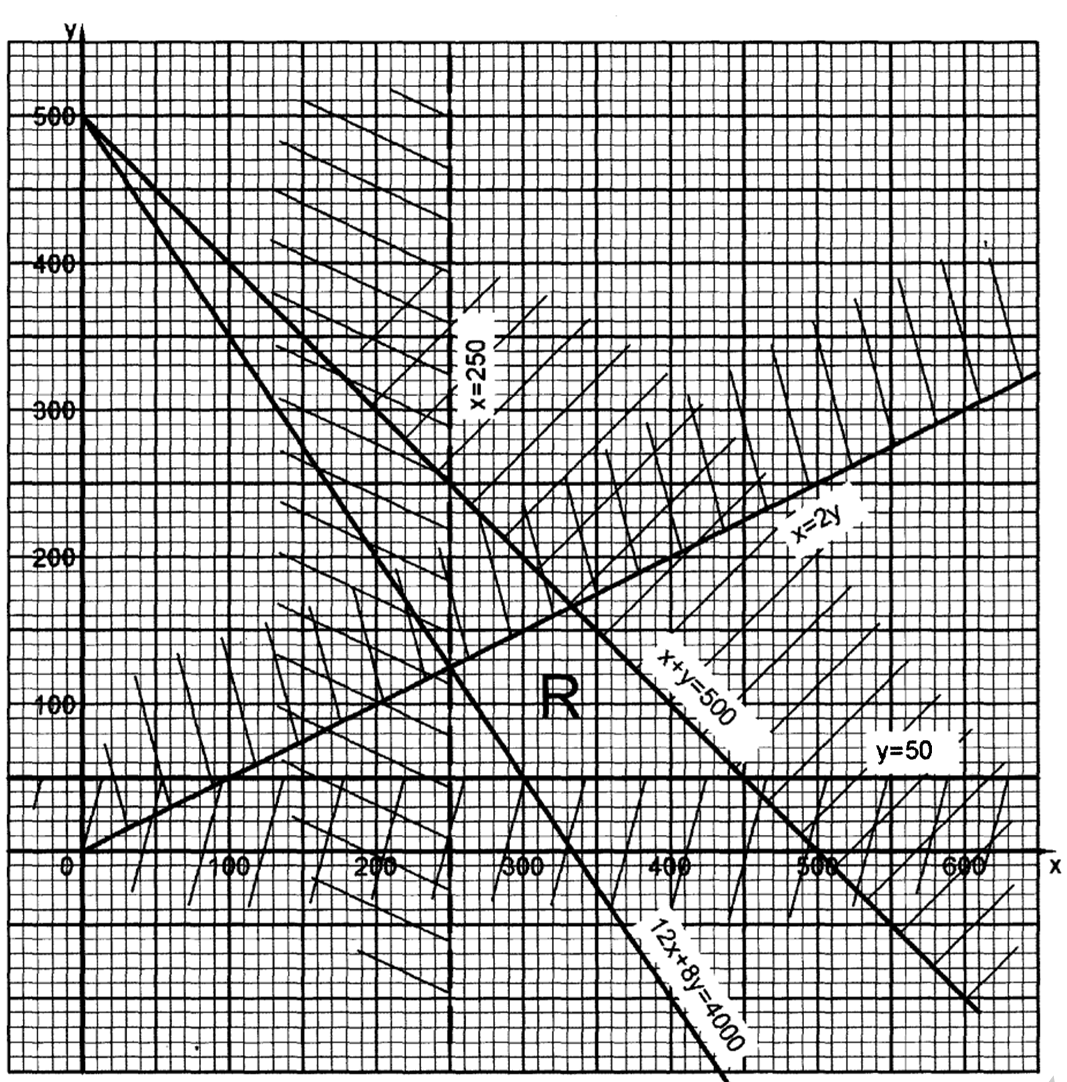

(b) On the grid provided represent the inequalities in part (a) above (4 marks)

x+y ⋜ 500 B1

x > 250 2y B1

y ⋜ 50 B1

x > 250 250

(c) The trader makes a profit of Ksh 12 on a packet of type A rice and Ksh 8 on a packet of type B rice. Determine the maximum profit the trader can make. (2 marks)

Search line 12x + 8y = 4000

For maximum profit x = 450, y = 50

Maximum profit = 12 x 450+50 x 8 Ksh 5800

23. (a) The 5° term of an AP is 82 and the 12° term is 103.

Find:

(i) the first term and the common difference;(3 marks)

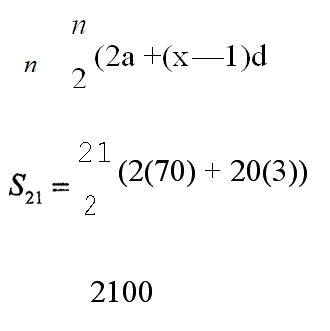

(ii) the sum of the first 21 terms. (2 marks)

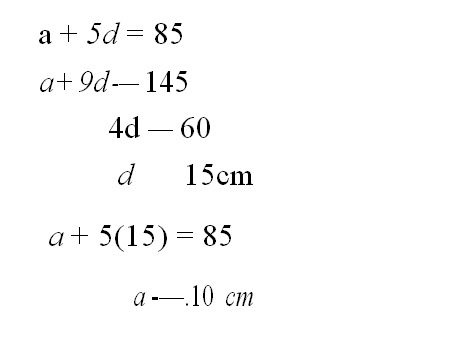

(b) A staircase was built such that each subsequent stair has a uniform difference in height. The height of the 6 stair from the horizontal floor was 85 em and the height of the 10° stair was 145 cm.

Calculate the height of the 1't stair and the uniform difference in height of the stairs. (3 marks)

24. The length of a room is 3 m shorter than three times its width. The height of the room is a quarter of its length. The area of the floor is 60 m2.

(a) Calculate the dimensions of the room. (5 marks)

Let x be the width (3 —3) = 60

3 — 3z — 60 = 0

x2 — x — 20 = 0

(x — 5)(x + 4) — 0

x —— 5 or x —— —4

.’. width x —— 5m

Length = 12m Height = 3m

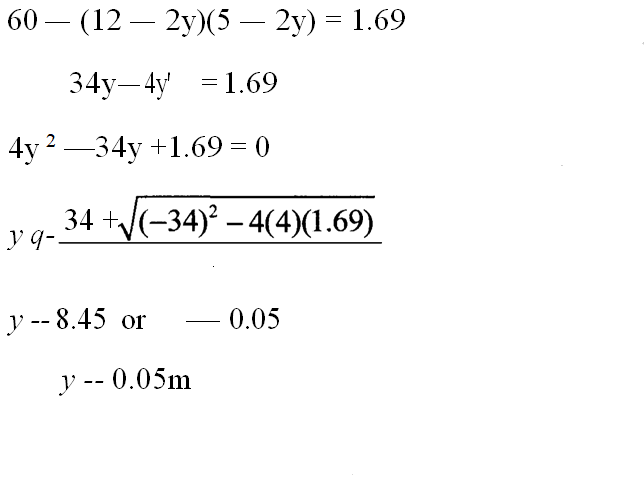

(b) The floor of the room was tiled leaving a border of width y m, all round. If the area of the border was 1.69m', find:

(i) the width of the border;

(ii) the dimensions of the floor area covered by tiles.

Dimensions or tiled area Length = 12 — 0.1 = 11.9 m

Width = 5 — 0.1 = 4.9 m

KCPE Results » List of National Schools in Kenya (Classified According to Clusters) » National Secondary Schools in Kenya » List of All Secondary Schools in Kenya Per County » Form 1 Intake - Selection Criteria, Selection List » KCSE Results » Secondary Schools in Kenya » KNEC - Kenya National Examinations Council KCPE Results Performance » KNEC - Kenya National Examinations Council » KCSE Results

1 a a kcse past papers 2014 kcse marking schemes 2016 kcse papers 2016 kcse prediction questions 2018 kcse exam 2018 kcse questions a a kcse past papers advance-africa.com kcse rev quiz agriculture mock papers agriculture paper 2 questions and answers pdf alliance mocks 2017 ap biology essay questions and answers arabic exam 2016 arabic oral exam questions betrayal in the city essay questions and answers pdf betrayal in the city essay questions with answers betrayal in the city, ,,revision questions biology book 3 klb biology essay questions and answers form 4 biology essay questions and answers form 4 pdf biology essays pdf biology exam questions and answers pdf biology form 2 questions and answers pdf biology form 3 notes pdf biology form 3 questions and answers pdf biology form 3 syllabus biology form three reproduction biology form three-questions and answers biology kcse - kcse biology questions and answers - kcse biology essay questions and answers - kcse biology paper 1 2015 - kcse biology notes - kcse 2015 biology paper 2 - kcse biology practical 2015 - kcse biology practicals - kcse biology 2011

kcse biology essay questions and answers - kcse revision questions and answers - kcse chemistry questions and answers - kcse revision papers with answers - kcse past papers with answers - download kcse past papers with answers - kcse questions on the river and the source - kcse revision notes

kcse biology essay questions and answers pdf kcse biology essays kcse biology essays pdf kcse biology notes kcse biology paper 1 kcse biology paper 1 2017 kcse biology paper 1 2017 pdf kcse biology paper 2 2012 kcse biology paper 2 2015 kcse biology paper 2 2017 kcse biology paper 3 2016 kcse biology paper 3 past papers kcse biology past papers kcse biology past papers and answers kcse biology practical 2016 kcse biology practical past papers kcse biology practicals kcse biology questions and answers kcse biology questions and answers - kcse past papers biology - kcse biology essay questions and answers - kcse chemistry past papers - download kcse past papers with answers - k.c.s.e papers 2015 - k.c.s.e papers 2016 - kcse biology paper 1 2015 - kcse past papers 2015 - kcse past papers 2011 - kcse past papers 2016 - kcse past papers 2017 - 2017 kcse prediction questions - 2018 kcse prediction questions

kcse business paper 1 2016 kcse business past papers kcse business studies past papers kcse chemistry paper 1 2016 kcse chemistry paper 1 2017 kcse chemistry paper 3 2012 kcse chemistry past papers kcse chemistry past papers and answers kcse chemistry practical kcse computer studies paper 1 kcse computer studies paper 2 kcse computer studies paper 2 pdf kcse cre 2016 kcse cre paper 1 2013 kcse cre paper 1 2015 kcse cre paper 1 2016 kcse cre paper 1 2017 kcse cre paper 2 kcse cre paper 2 2016 kcse cre past papers kcse cre past papers and answers kcse english paper 3 2016 kcse english paper 3 2017 kcse essay questions in betrayal in the city kcse exam papers 2018 kcse exam papers answers kcse french paper 1 kcse french paper 2 kcse french past papers kcse general science syllabus kcse geography paper 2 2016 kcse history paper 1 2012 kcse history paper 2 2016 kcse history paper 2 2017 kcse kiswahili paper 1 2017 kcse marking scheme 2016 kcse marking schemes kcse marking schemes 2017 kcse marking schemes pdf kcse mathematics marking schemes kcse mathematics paper 1 2015 kcse mathematics paper 1 2016 kcse mathematics paper 2 2016 kcse mathematics past papers kcse mathematics past papers pdf kcse mock exams kcse mock papers 2015 kcse mock papers 2017 kcse mock papers 2018 kcse mock papers pdf kcse mock papers pdf 2018 kcse mocks 2017 kcse mocks 2018 kcse music past papers kcse online past papers kcse papers 2015 kcse past papers kcse past papers - kcpe and answers - free mocks online - kcse answers past exams question papers - downloads | kcse papers and marking schemes | exams - kcse mathematics paper 1 questions and answers - kcse cre paper 1 questions and answers - knec past papers free downloads - kcse online registration - kcpe - kcse past papers - knec - knec portal - knec past papers for colleges - kasneb - past papers - kasneb past papers for colleges - cpa past papers - https://www.knec.ac.ke/ - www.knec-portal.ac.ke/ - knec portal: kcse results, online registration, kcse result slip. knec portal confirmation - knec portal kcse results - knec examiners portal - knec website kcse past papers - kcpe and answers - free mocks online - kcse answers past exams question papers - downloads | kcse papers and marking schemes | exams - kcse mathematics paper 1 questions and answers - kcse cre paper 1 questions and answers

## KCSE Past Papers 2016 Mathematics  Alt A Paper 1

#### Scholarship 2021/22

Current Scholarships 2021/2022 - Fully Funded

• ✅Over 4500 Current Fully Funded Scholarships for International Students
